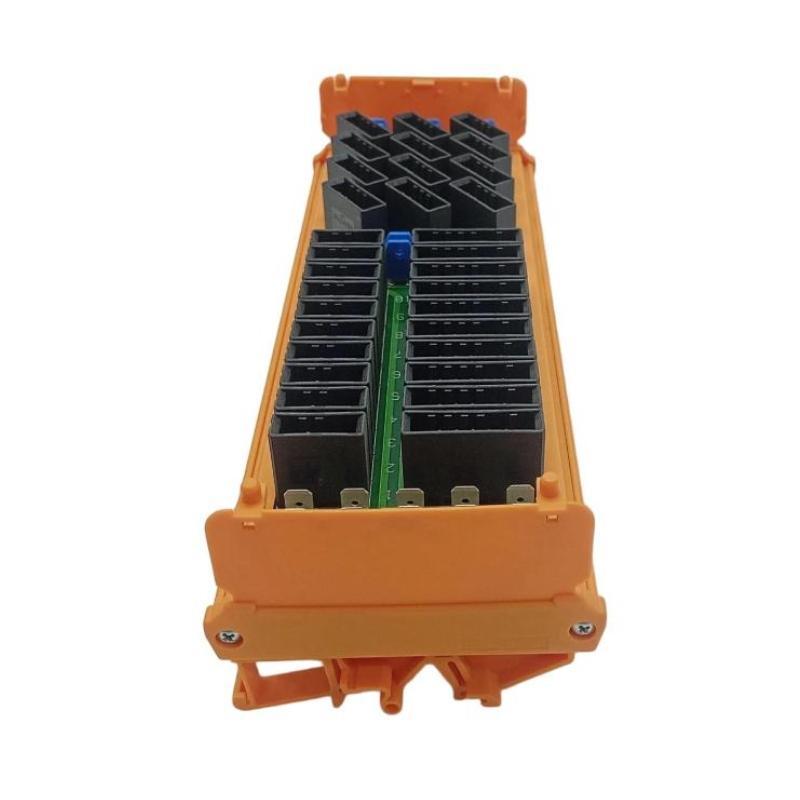

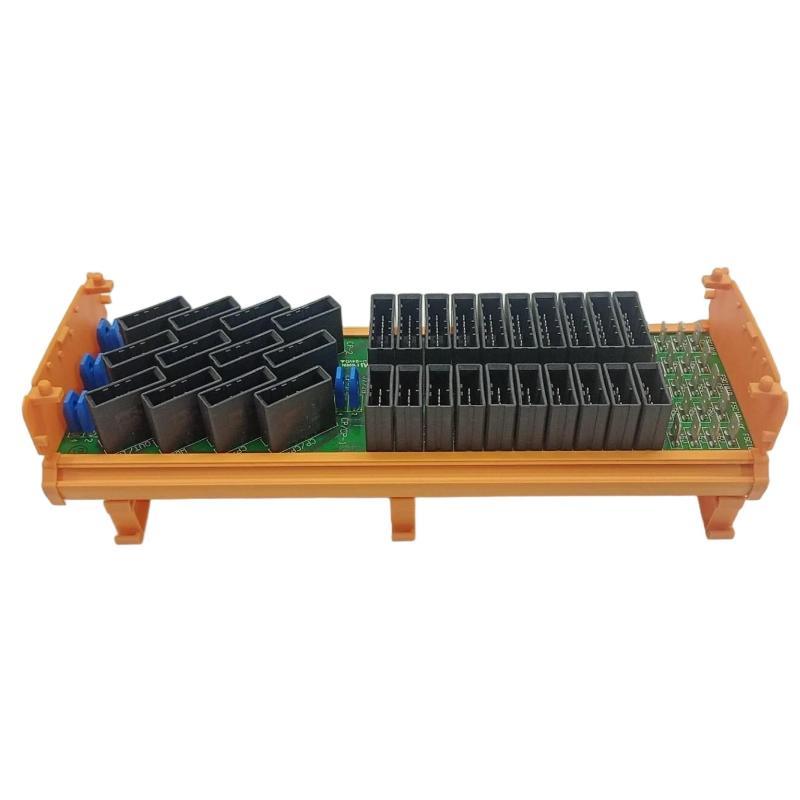

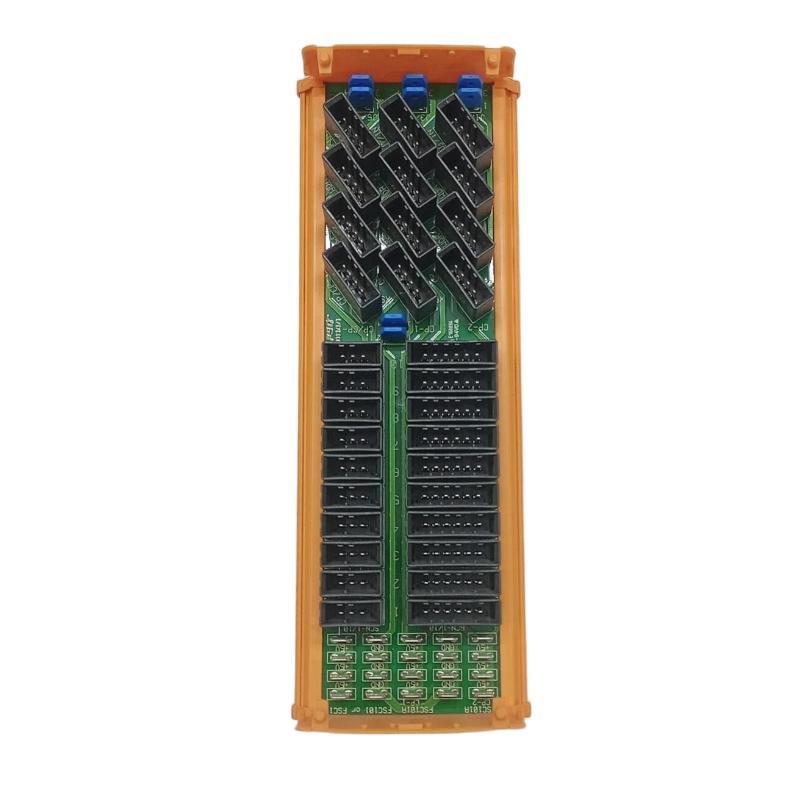

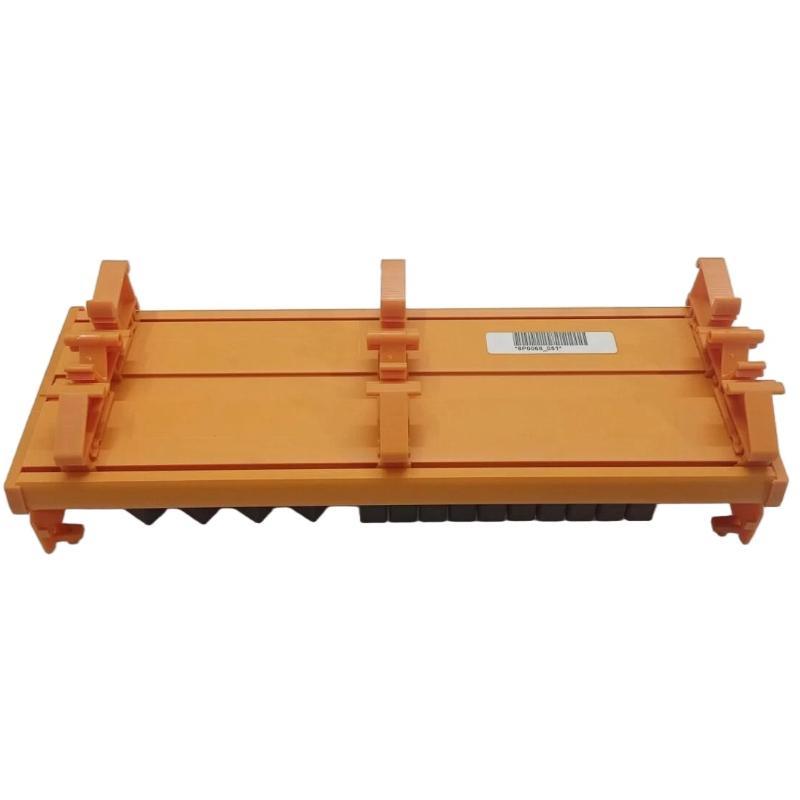

Honeywell 10313/1/1 FSC Terminal Module

Overview
The Honeywell 10313/1/1 FSC Terminal Module is designed to provide secure and reliable field wiring termination within industrial safety control systems. It serves as an interface point between system backplanes and external field devices, ensuring stable signal transmission and organized wiring distribution.

General Information
Part Number: 10313/1/1

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: FSC Terminal Modules

Type: Terminal Module

Application: Field signal termination, safety system interfacing, control cabinet wiring management

Mounting: Rack or panel-mounted within FSC system cabinets

Technology: Terminal-based signal interface for structured field connectivity

Power Specifications
Supply Voltage: Not directly powered (passive module)

Power Consumption: 0 W (passive operation)

Input Power Source: None required

Protection: Designed for secure signal isolation and wiring integrity

Indicators: No active indicators (system-dependent status)

Communication & Interface
Interface Type: Field wiring terminal interface

Function: Connects external field devices to FSC control system

Diagnostics: System-level diagnostics via connected controller

Status Indication: None on module (handled by system controller)

Configuration: Fixed hardware wiring configuration

Isolation: Electrical separation between field wiring and system backplane

Environmental
Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial cabinet installations

Protection Rating: IP20 (installed inside control system enclosure)

Dimensions & Weight
Dimensions (L × W × H): 245 × 87 × 68 mm

Weight: 0.099 kg
