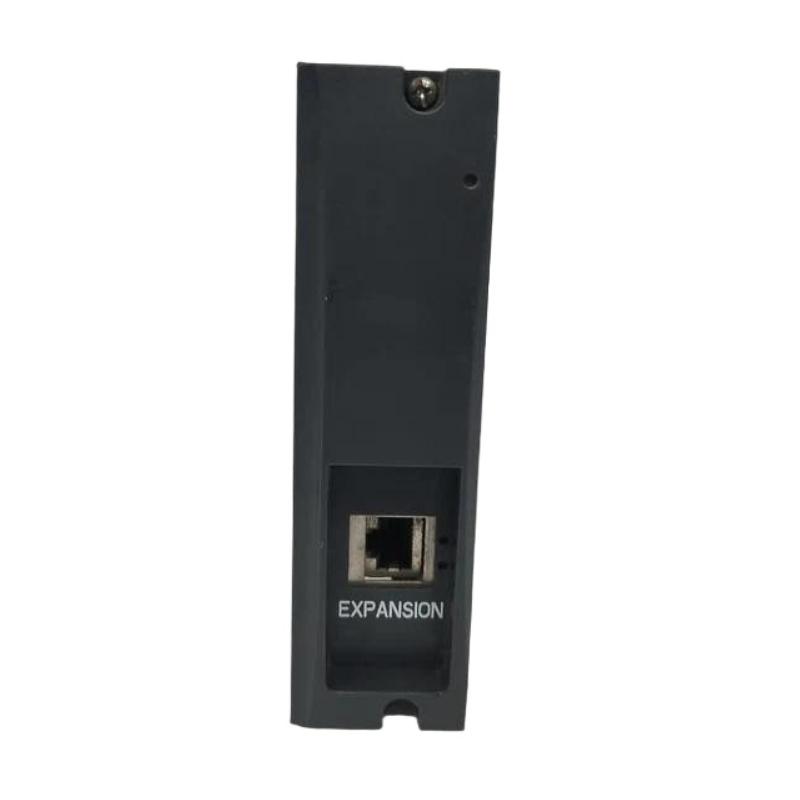

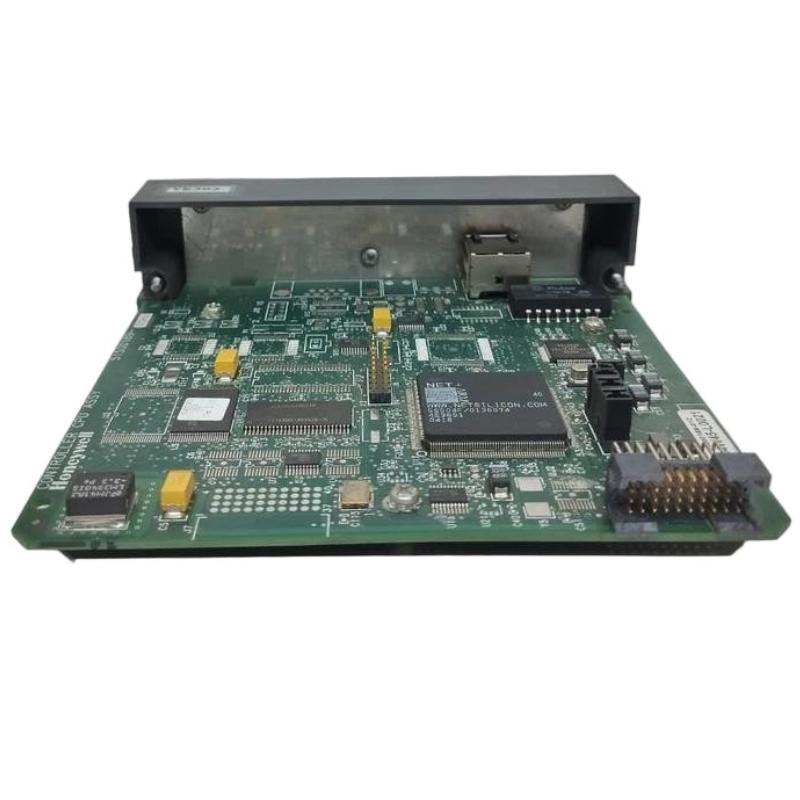

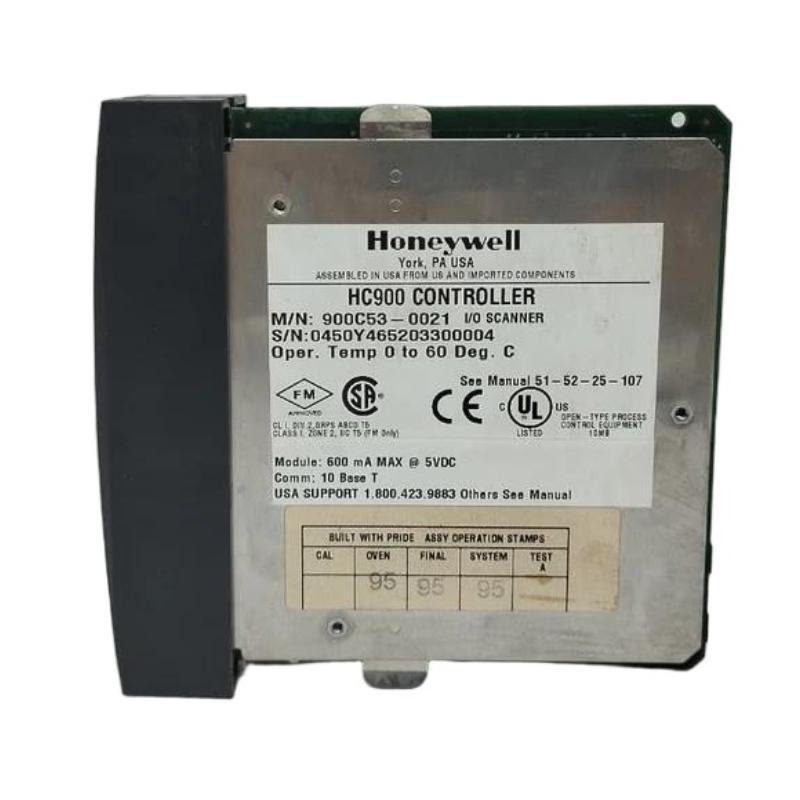

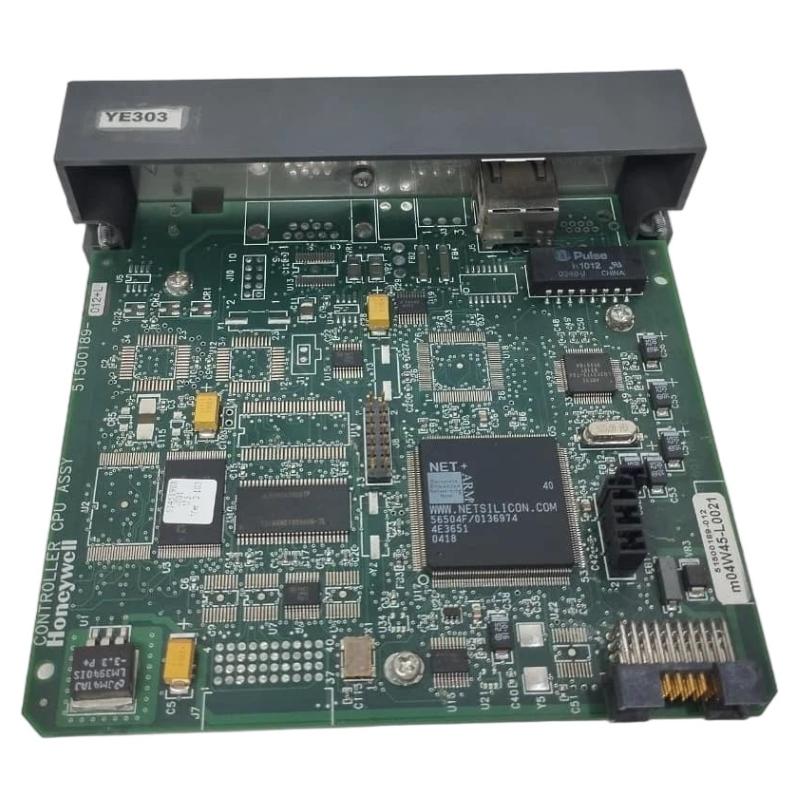

Honeywell 900C53-0021 HC900 I/O Scanner Module

Overview

The Honeywell 900C53-0021 is an HC900 I/O Scanner Module designed for industrial automation and process control systems. It efficiently monitors and communicates the status of distributed I/O modules, ensuring fast and reliable data acquisition for the HC900 control network.

General Information

Part Number: 900C53-0021

Manufacturer: Honeywell / USA

Series: HC900

Type: I/O Scanner Module

Mounting: Panel or DIN rail installation in control enclosures

Technology: High-speed I/O scanning with industrial-grade durability

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Protection: Overvoltage, short-circuit, and reverse-polarity protection

Indicators: LEDs for power, communication, and fault status

Communication & Interface

Interface: Serial and Ethernet communication with HC900 controllers

Protocols Supported: Modbus, Honeywell proprietary protocols

Diagnostics: Real-time I/O status monitoring, communication health, and fault reporting

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports soft and hardware reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: IEC 60068-2 compliant

Protection Rating: IP20, suitable for standard industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 137 × 38.1 × 137.16 mm

Weight: 0.36 kg

Reliable Scanning, Quick Installation!
