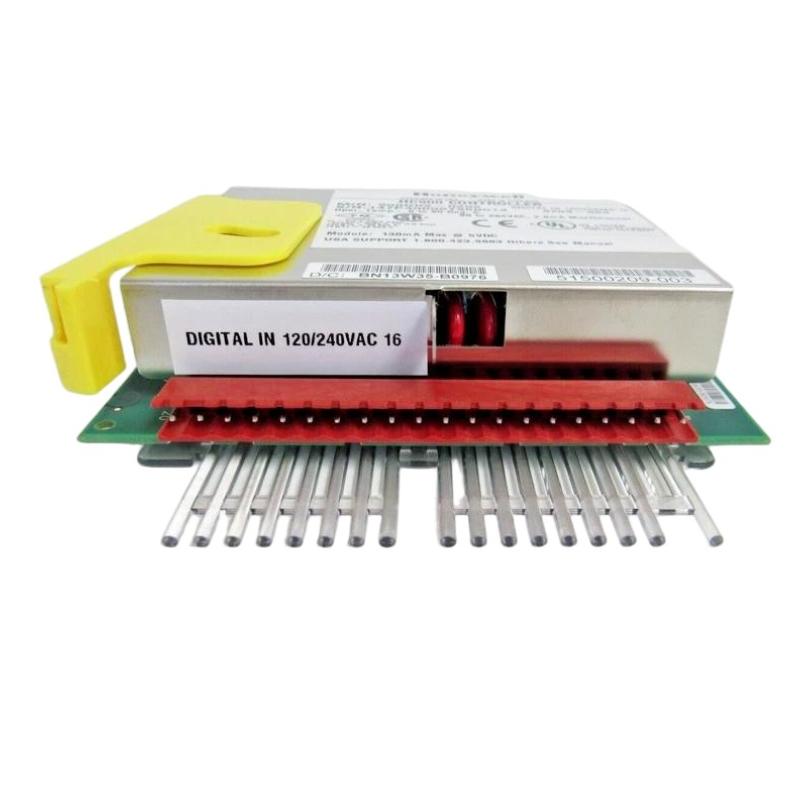

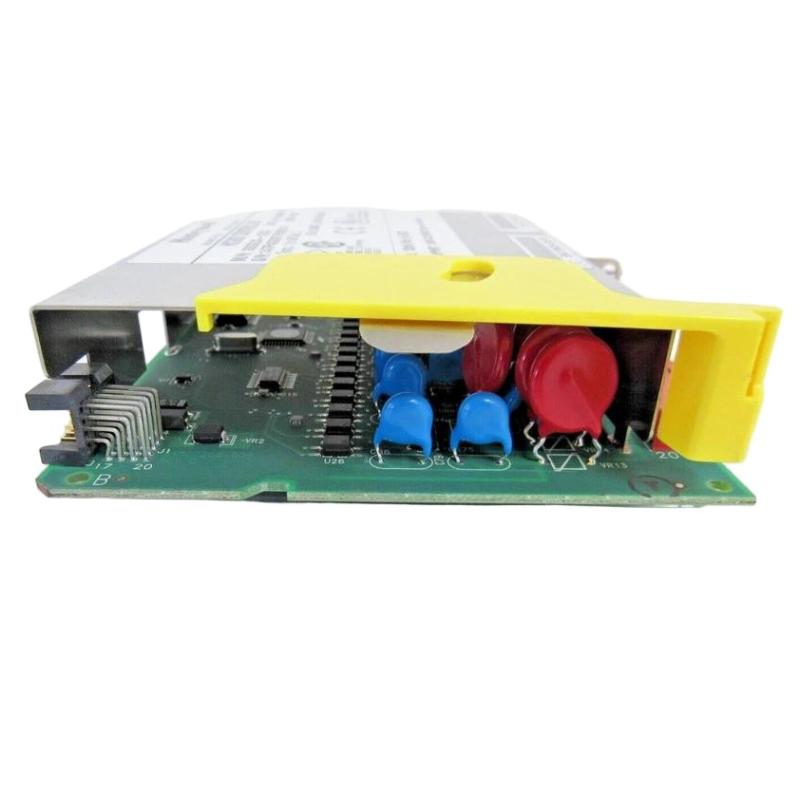

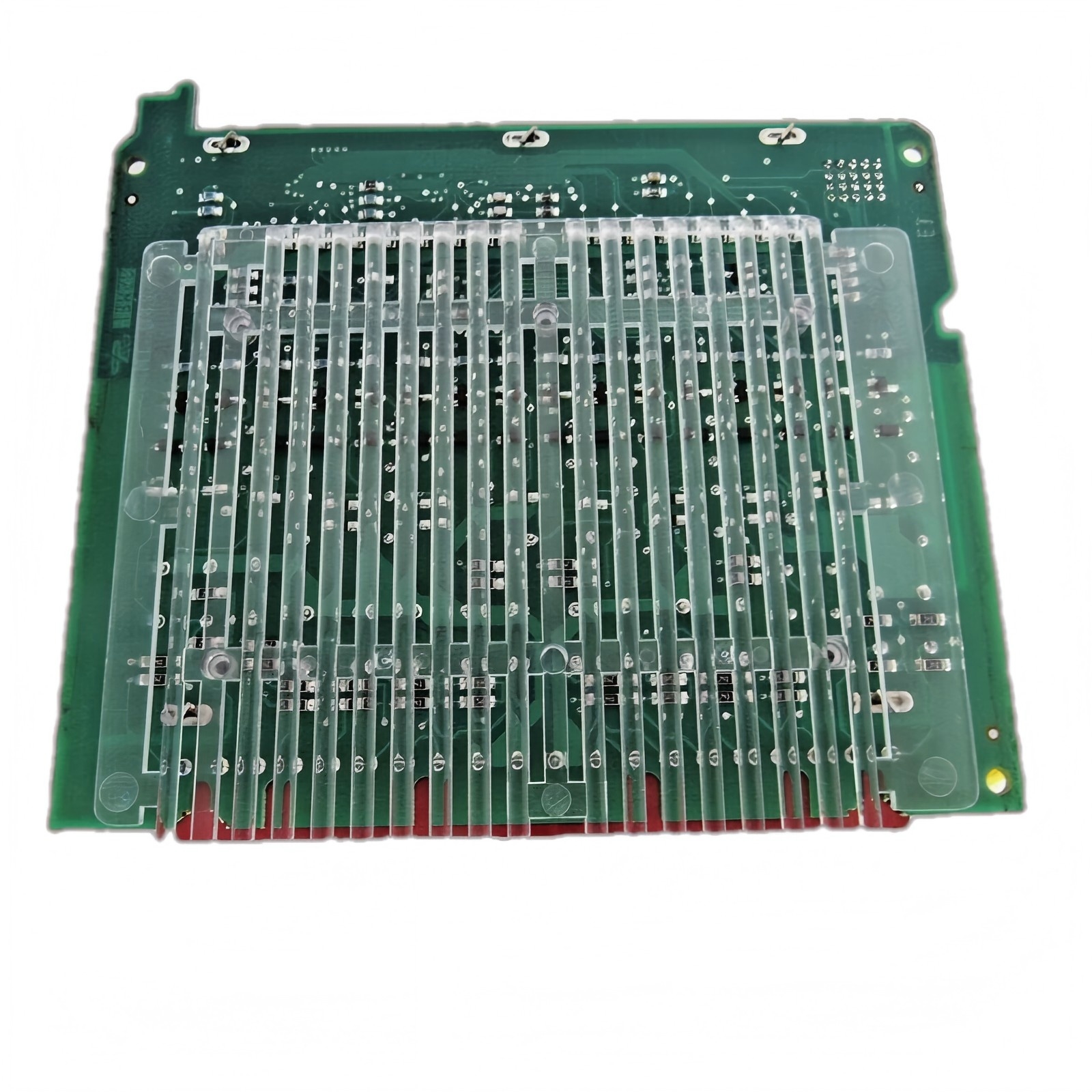

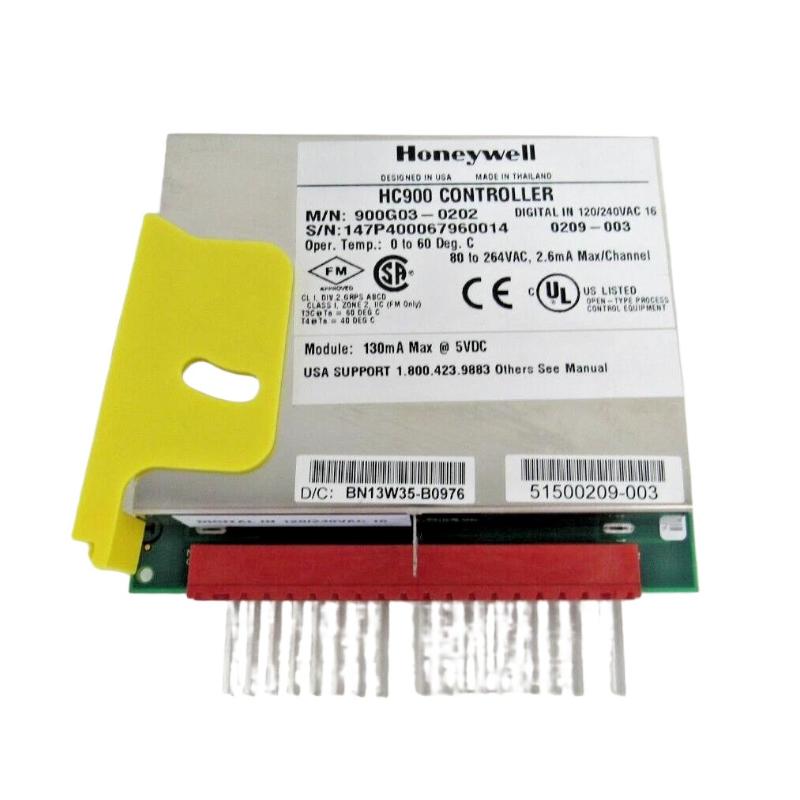

Honeywell 900G03-0202 HC900 Analog Input Module - AC Voltage Type

Overview

The Honeywell 900G03-0202 is an AC voltage type analog input module for the HC900 Distributed Control System. It accurately monitors and acquires AC voltage signals from field devices, delivering reliable data for process control, monitoring, and automation applications. The module ensures high stability and performance in industrial environments.

General Information

Part Number: 900G03-0202

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / USA

Series: HC900 Analog Input Modules

Type: AC Voltage Analog Input Module

Mounting: Panel or DIN rail mounting within control cabinets

Technology: Analog signal acquisition, AC voltage measurement, industrial-grade protection

Power Specifications

Supply Voltage: 24 V DC (typical for module electronics)

Power Consumption: ≤ 5 W

Input: Powered via HC900 backplane

Protection: Overvoltage and surge protection

Indicators: LEDs for power and module status

Communication & Interface

Interface: HC900 system backplane

Input Channels: AC voltage input channels

Diagnostics: Channel monitoring, fault detection, and error reporting

Reset Features: Supports module reset via software or backplane controls

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 137 × 35.6 × 151.7 mm

Weight: ~0.21 kg
