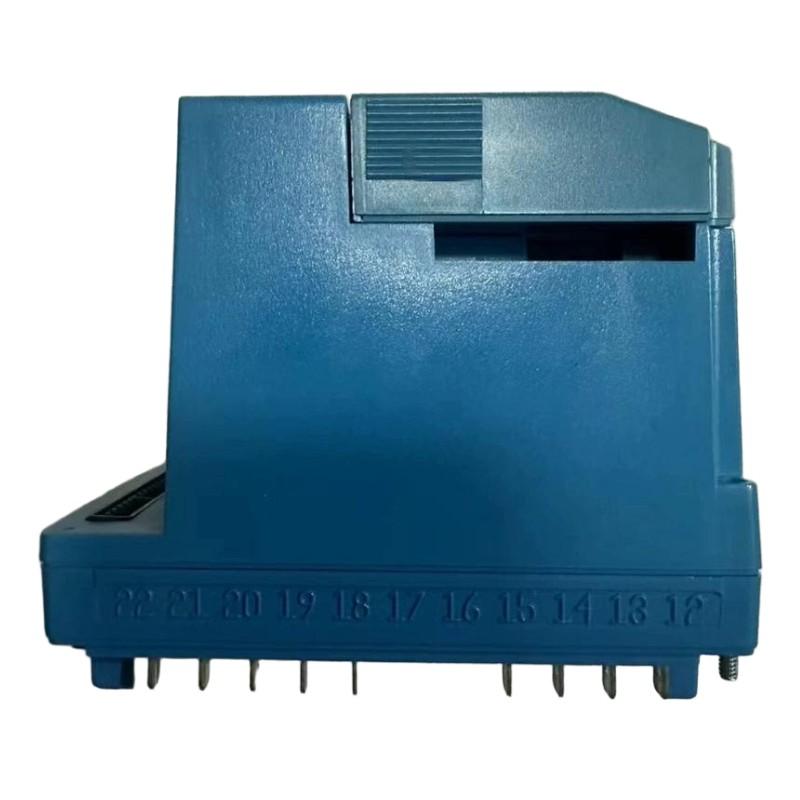

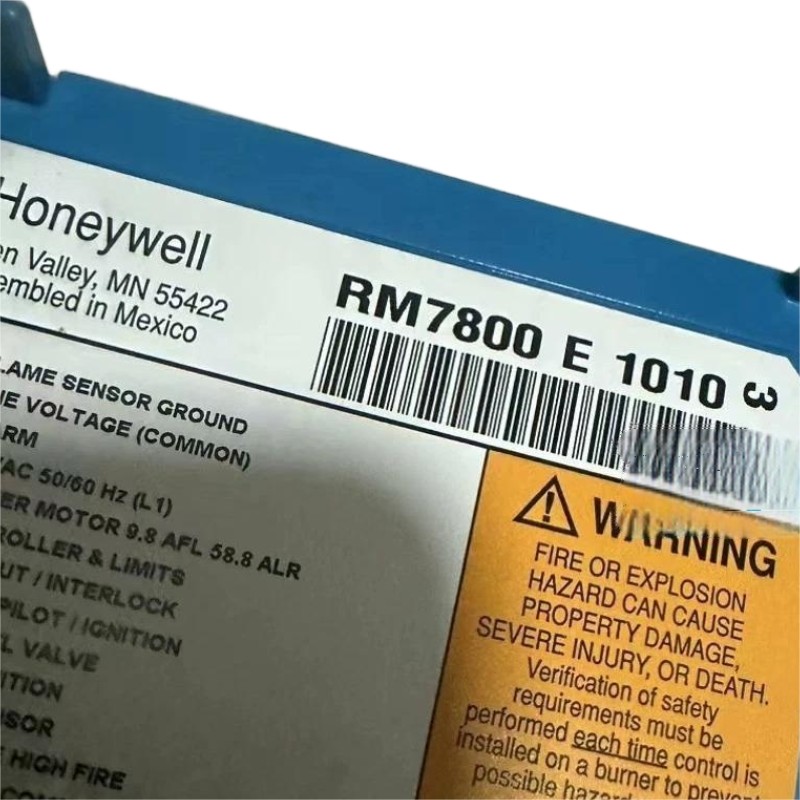

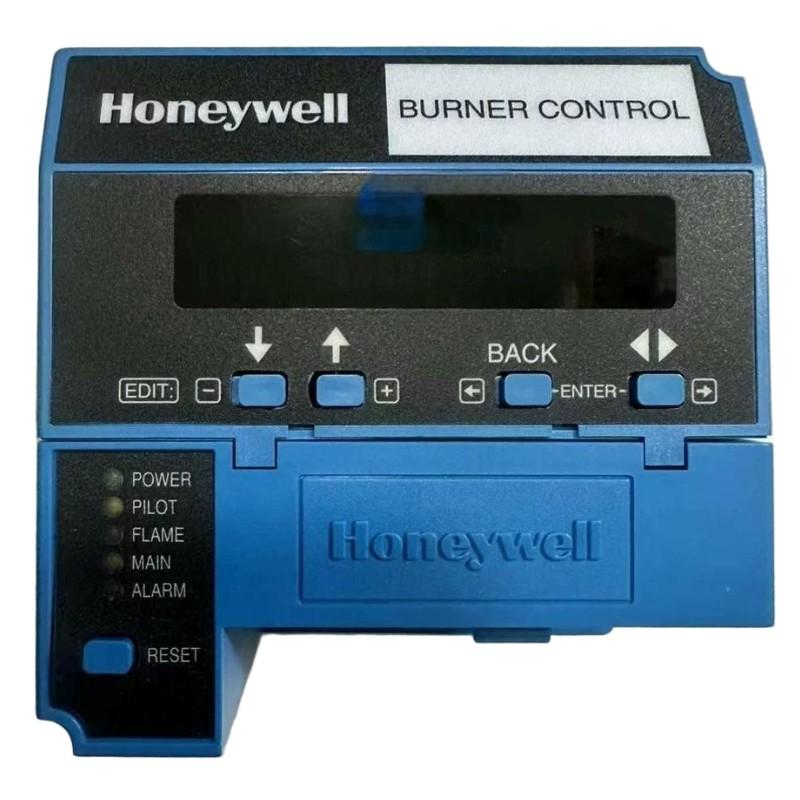

Honeywell RM7800E1010 Relay Module

Overview

The RM7800E1010 is a relay module designed for Honeywell process control systems. It provides reliable switching capabilities for controlling high-power devices and signaling circuits, enabling safe and efficient operation in industrial automation applications.

General Information

Part Number: RM7800E1010

Manufacturer: Honeywell / USA

Series: RM7800

Module Type: Relay Module

Mounting: Panel or DIN rail installation within Honeywell control systems

Technology: Electromechanical relays with LED status indicators for each channel

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: 5 W typical

Output Protection: Overload and short-circuit protection for each relay

Indicators: Individual relay LEDs and module status LED

Communication & Interface

Communication Ports: System bus interface for controller integration

I/O Channels: Multiple relay outputs

Output Type: Electromechanical relay contacts (normally open and normally closed)

Diagnostics: LED monitoring for relay activity and module health

Operator Interface: Visual feedback for relay status and faults

Reset Features: Supports controller or system-initiated reset

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: −20 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Meets industrial standard requirements

Protection Rating: IP20, suitable for enclosed industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 127 × 127 × 133 mm

Weight: 0.822 kg
