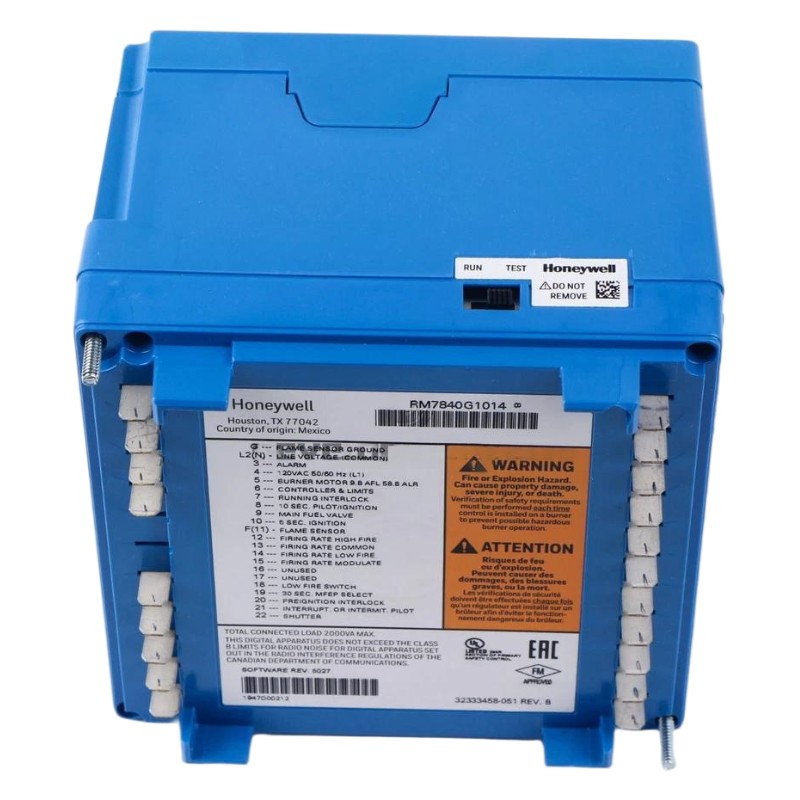

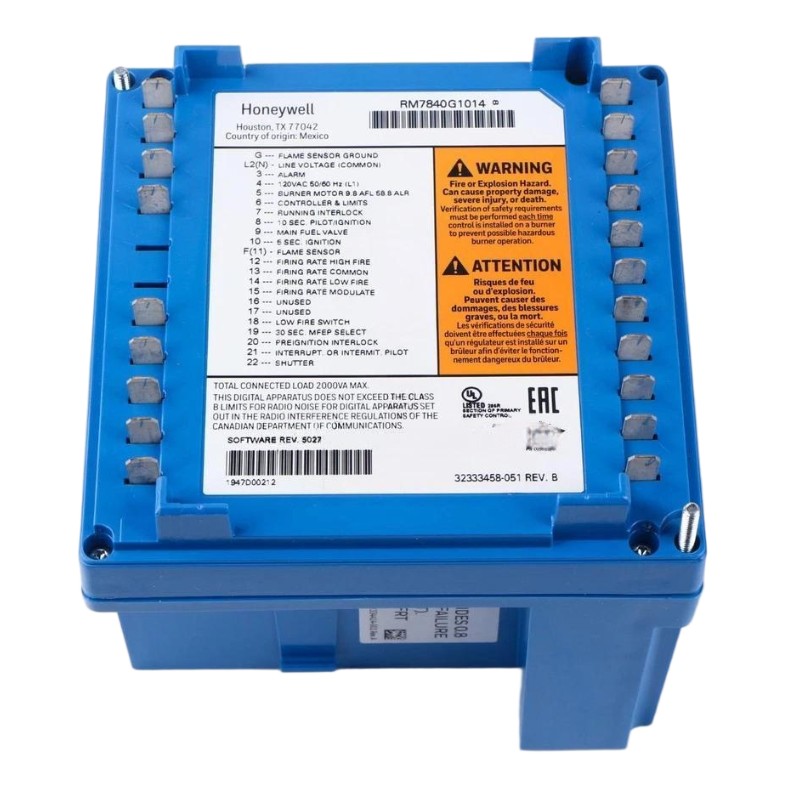

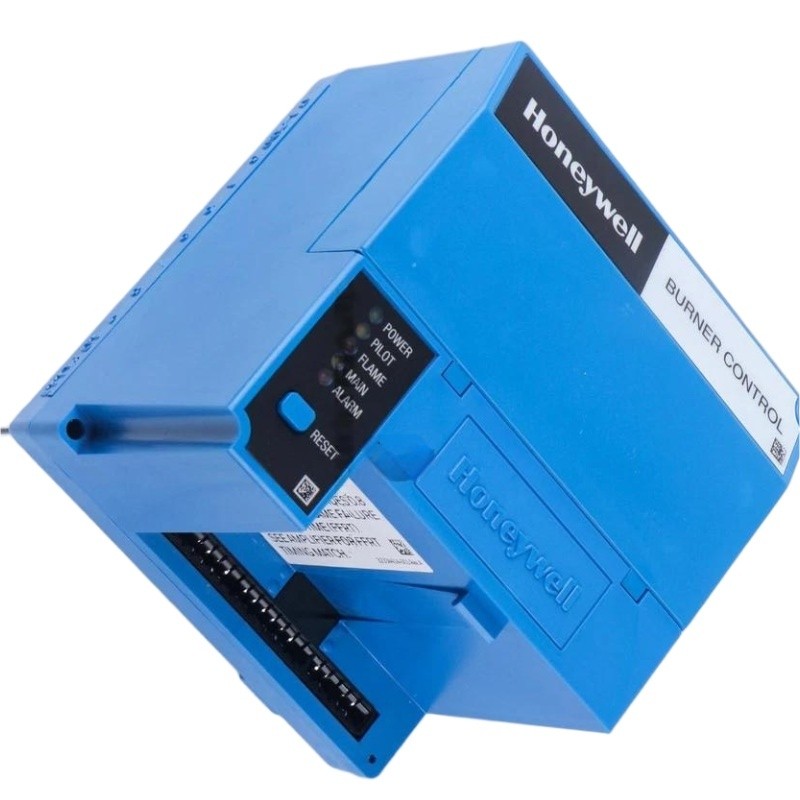

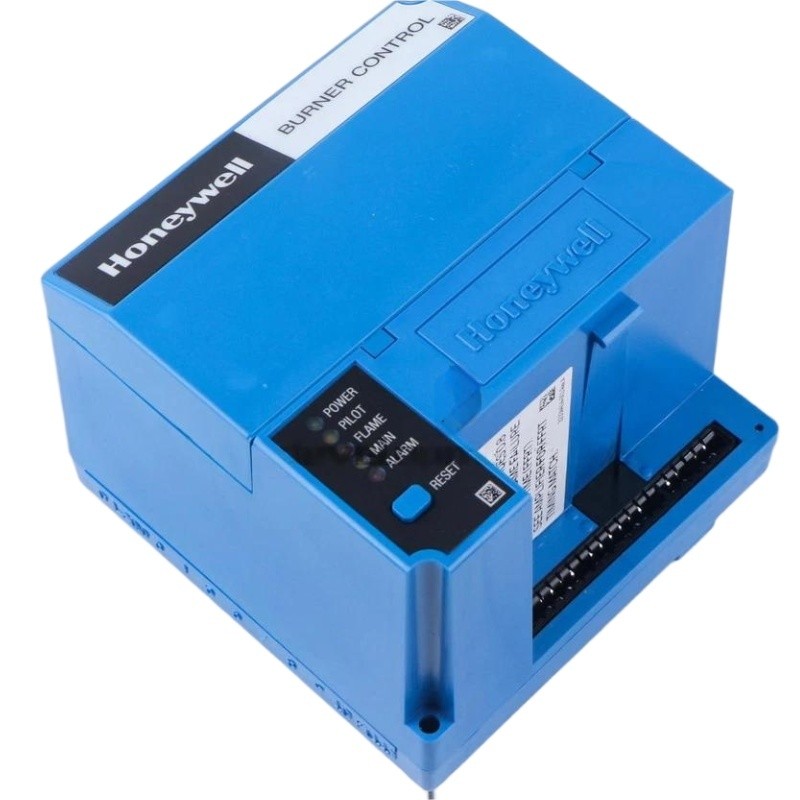

Honeywell RM7840G1014 Burner Controller

Overview

The RM7840G1014 is a burner controller designed for Honeywell industrial automation systems. It provides precise control of burner operations, including ignition, flame monitoring, and safety interlocks, ensuring safe and efficient combustion management in industrial heating and process applications.

General Information

Part Number: RM7840G1014

Manufacturer: Honeywell / USA

Series: RM7840

Module Type: Burner Controller

Mounting: Panel or DIN rail installation within Honeywell control systems

Technology: Microprocessor-based burner management with fail-safe relays and LED diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: 5 W typical

Output Protection: Short-circuit and overload protection for relay outputs

Indicators: LED indicators for operational status, faults, and safety conditions

Communication & Interface

Communication Ports: System bus interface for integration with Honeywell controllers

I/O Channels: Digital and relay outputs for burner control

Input Type: Flame sensors, limit switches, and other safety devices

Diagnostics: LED monitoring for input/output activity and module health

Operator Interface: Visual feedback for operational and fault status

Reset Features: Supports controller- or system-initiated reset

Environmental

Operating Temperature: 0 to 55 °C

Storage Temperature: −20 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Complies with industrial standards

Protection Rating: IP20, suitable for enclosed industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 127 × 127 × 133 mm

Weight: 0.822 kg
