Overview

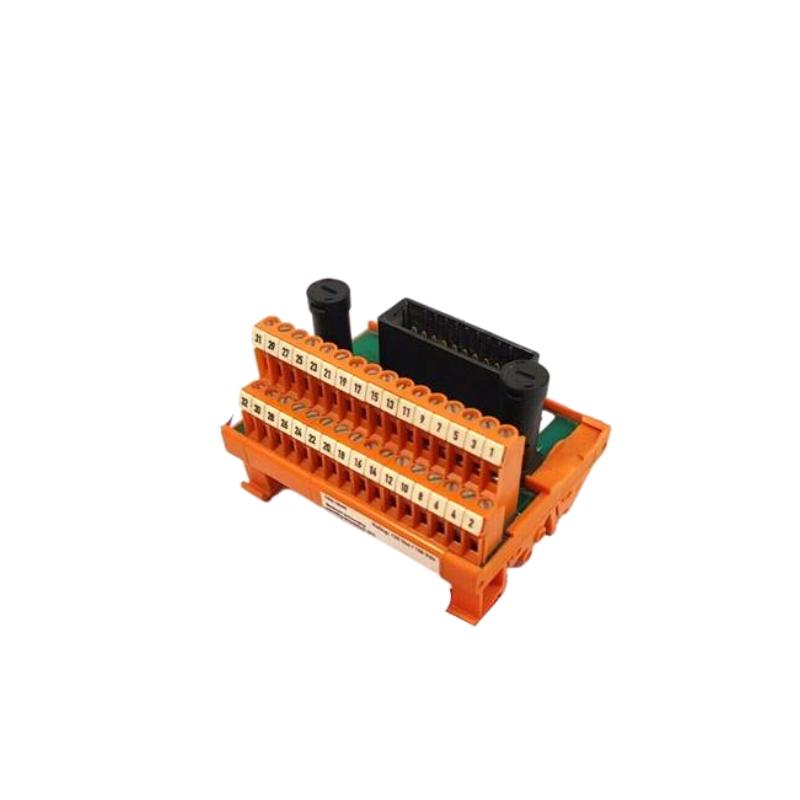

The FC‑TSDI‑16115 is a 16‑channel safe digital input field‑termination assembly for Honeywell Safety Manager systems. It handles 115 V AC/DC inputs with galvanic isolation. Brand: Honeywell. Country of Origin: USA.
General Information
Part Number: FC‑TSDI‑16115
Manufacturer: Honeywell Safety Manager Systems
Brand: Honeywell
Country of Origin: USA
Type: Safe Digital Input Module
Channels: 16
Function: Converts field 115 V AC/DC signals into isolated safe logic inputs
Power Specifications
Input Voltage: 115 V AC/DC (–15% to +30%)
Input Current: ~7.5 mA at 115 V nominal
Input Impedance: > 9 kΩ
Isolation: ≥ 2000 V between input and system
Communication & Interface
Signal Type: Digital AC/DC input
Connections: Screw terminals, 2 groups of 8 channels; DIN‑rail mountable
Diagnostics: Galvanic isolation ensures safe connection to controller
Environmental
Operating Temperature: Up to +50 °C (115 V nominal)
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Dimensions & Weight
Dimensions: 300 × 109 × 68 mm
Weight: ~0.65 kg
