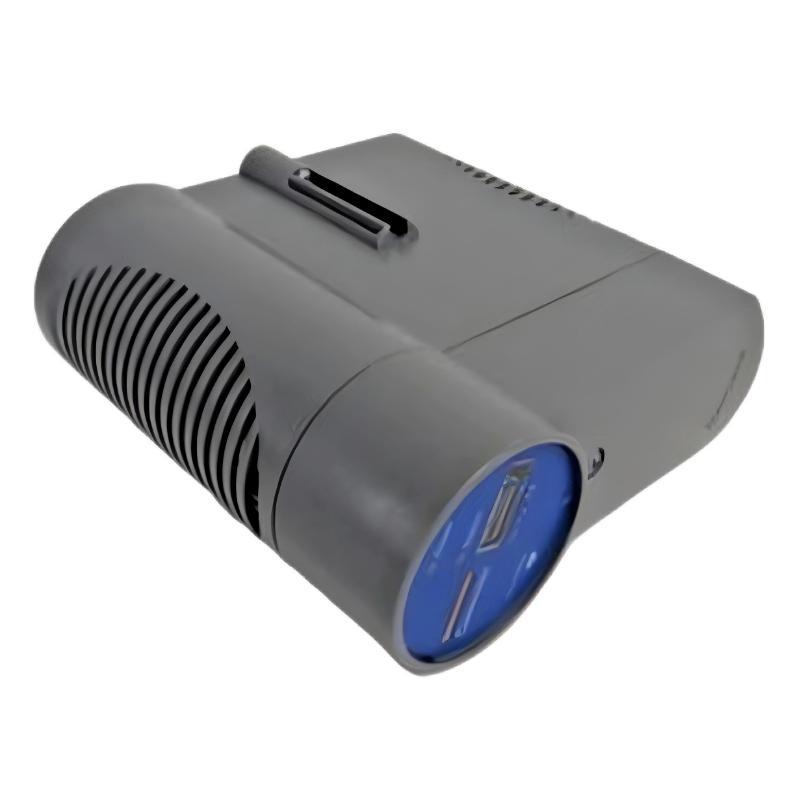

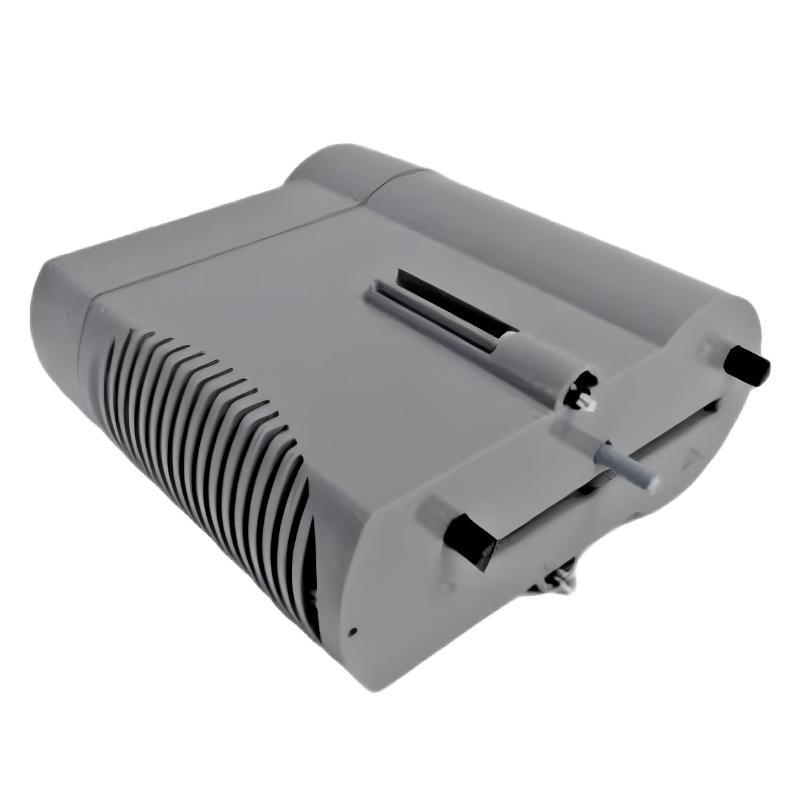

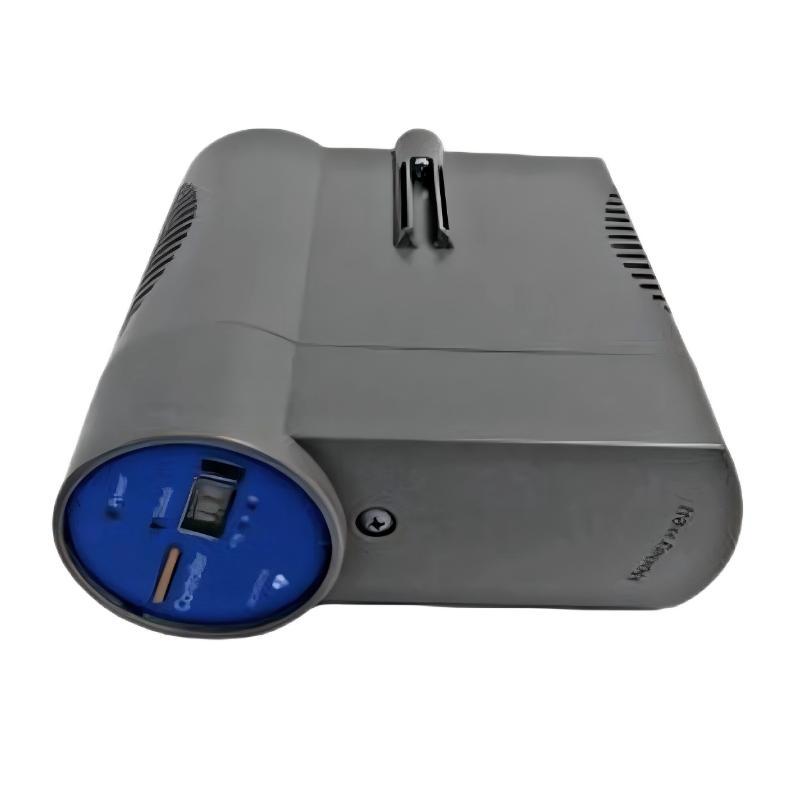

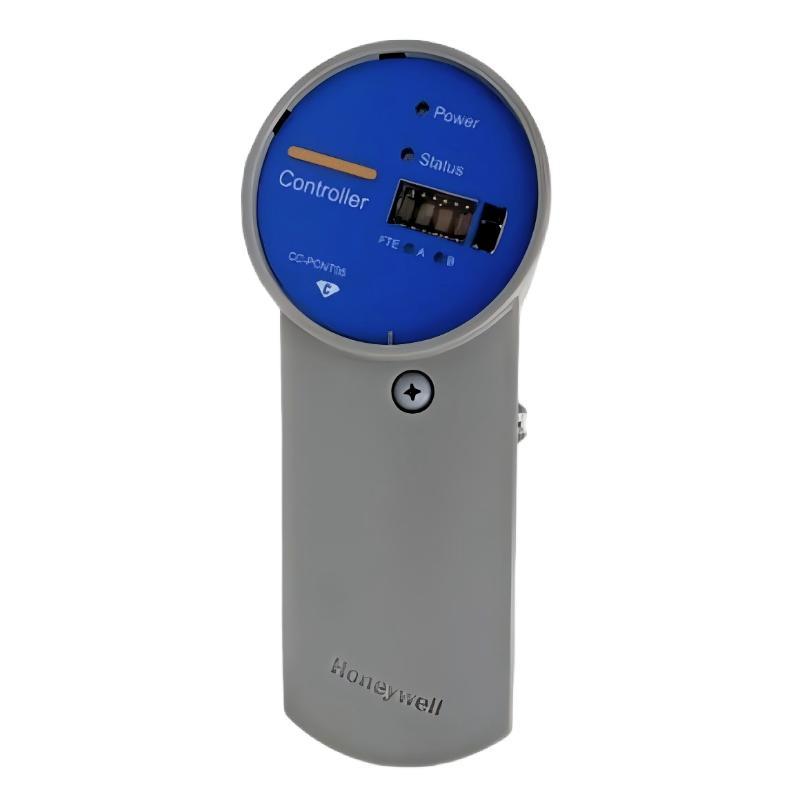

Honeywell CC-PCNT05 Analog Input Module

Overview

The Honeywell CC-PCNT05 is an analog input module designed for industrial control and automation systems. It is used to convert analog signals from field instruments into digital data for processing by control systems, ensuring accurate monitoring and stable process control.

General Information

Part Number: CC-PCNT05

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: Control System I/O Module Series

Type: Analog Input Module

Mounting: Rack or chassis-mounted installation

Technology: Analog signal acquisition and conversion

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input Power Source: System backplane or external supply depending on configuration

Protection Features: Overvoltage and reverse polarity protection

Status Indicators: LED indicators for power, channel status, and faults

Communication & Interface

Input Type: Analog signal input (voltage/current signals)

Signal Range: Standard industrial analog inputs (e.g., 4–20 mA, 0–10 V)

Channel Support: Multi-channel analog input processing

System Interface: Compatible with Honeywell distributed control systems

Diagnostics: Built-in channel diagnostics and fault detection

Configuration: Software-based configuration via system engineering tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: Industrial control cabinet installation

Vibration Resistance: Designed for industrial environments

Dimensions & Weight

Dimensions (L × W × H): 120 × 90 × 35 mm

Weight: 0.25 kg
