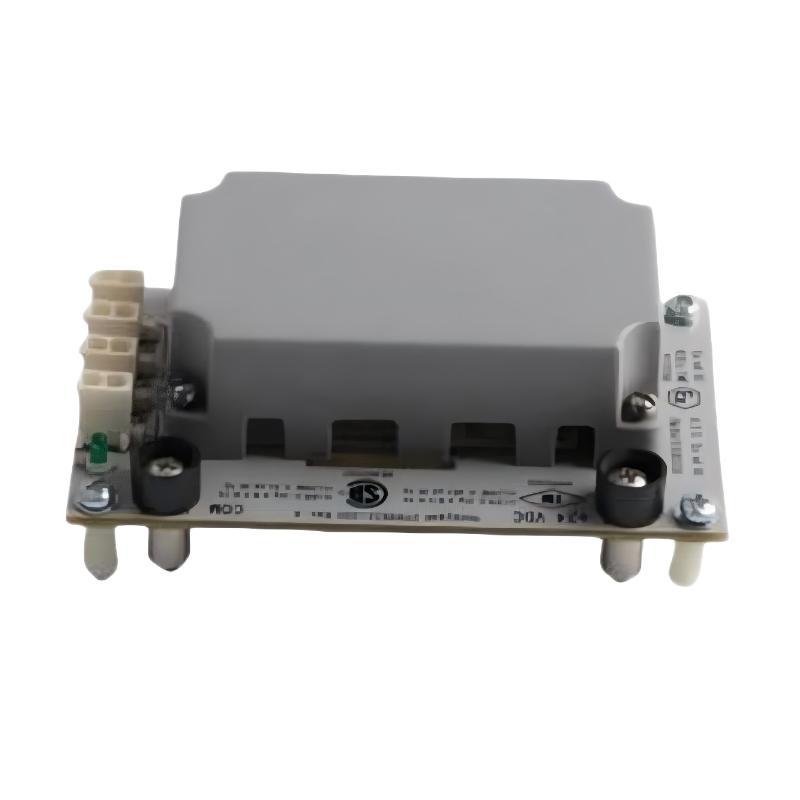

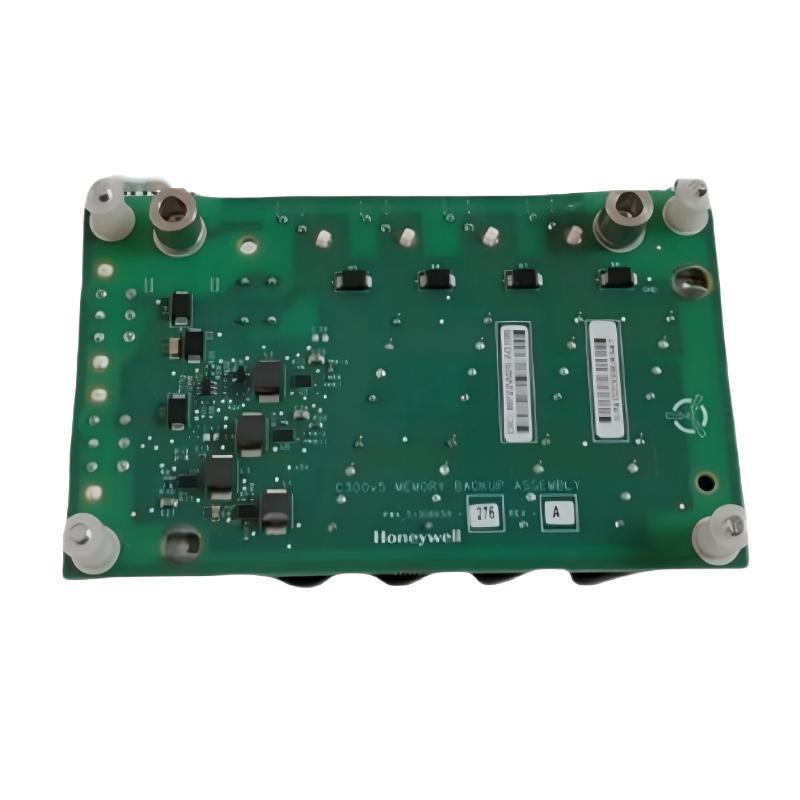

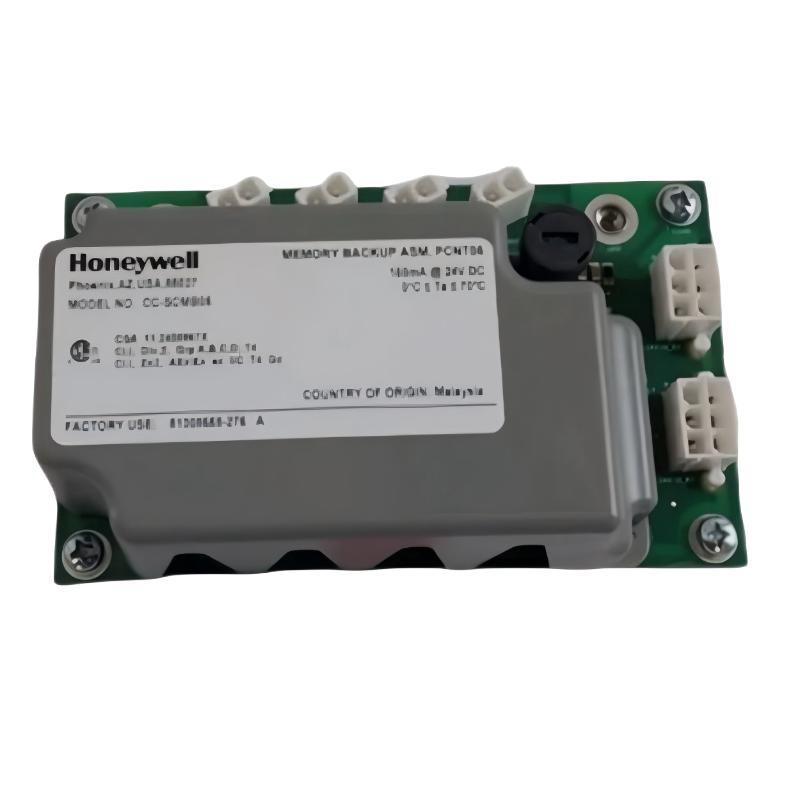

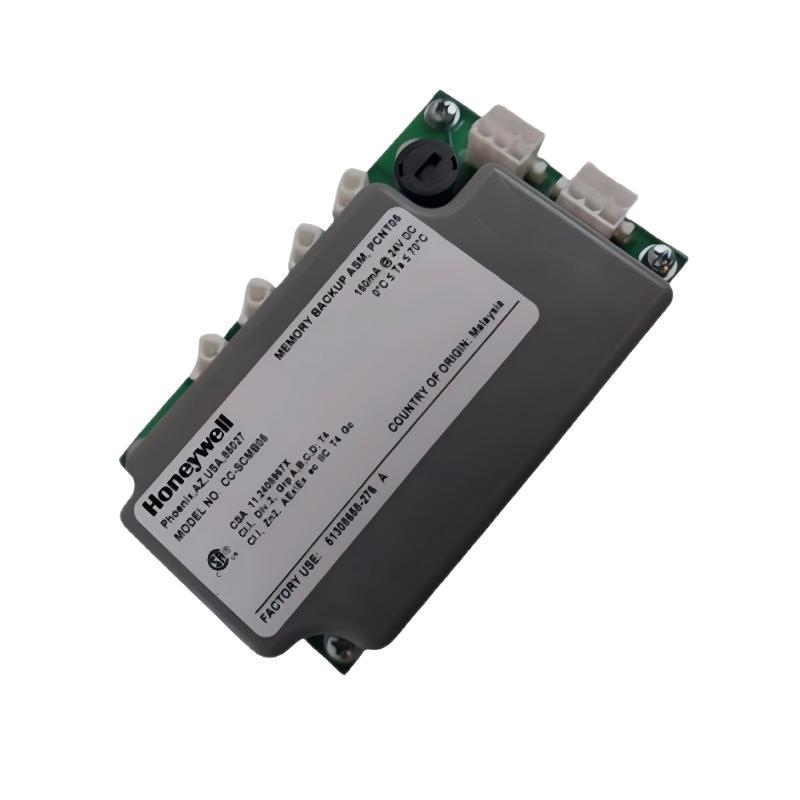

Honeywell CC-SCMB05 Memory Backup Module

Overview

The Honeywell CC-SCMB05 is a memory backup module designed for industrial control systems. It provides reliable data retention and system backup support, ensuring critical configuration and process data are preserved during power loss or system interruptions.

General Information

Part Number: CC-SCMB05

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: Control System Support Modules

Type: Memory Backup Module

Mounting: Rack or control cabinet installation

Technology: Non-volatile memory backup and system data retention

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 3 W

Input Power Source: Control system backplane or external supply

Protection Features: Overvoltage and data retention protection

Status Indicators: LED indicators for power and backup status

Communication & Interface

Function Type: Memory backup and data retention support

Interface: System-integrated control module interface

Data Handling: Stores configuration, process data, and system parameters

Compatibility: Designed for Honeywell control systems

Diagnostics: Backup status monitoring and fault indication

Configuration: Automatic system integration, minimal setup required

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: Industrial cabinet environment

Vibration Resistance: Suitable for industrial automation applications

Dimensions & Weight

Dimensions (L × W × H): 100 × 70 × 30 mm

Weight: 0.25 kg

Reliable Data Protection — Always Ready When You Need It!
