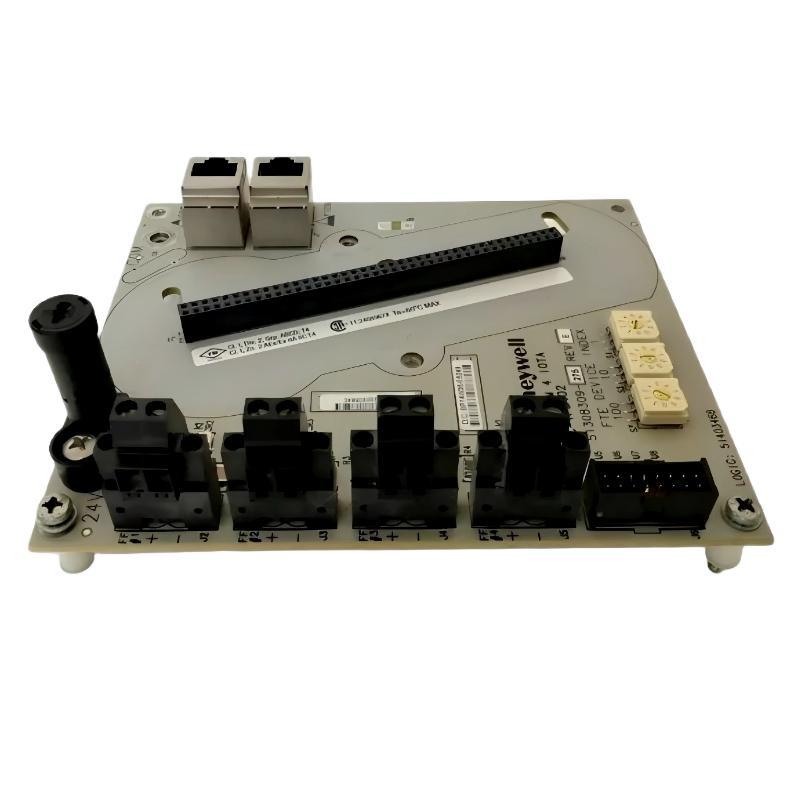

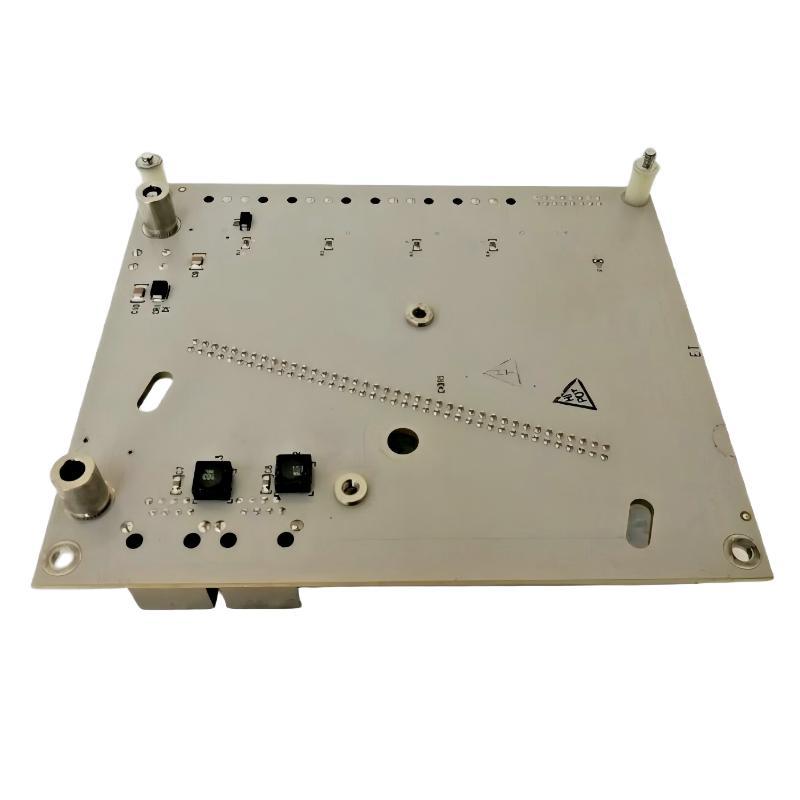

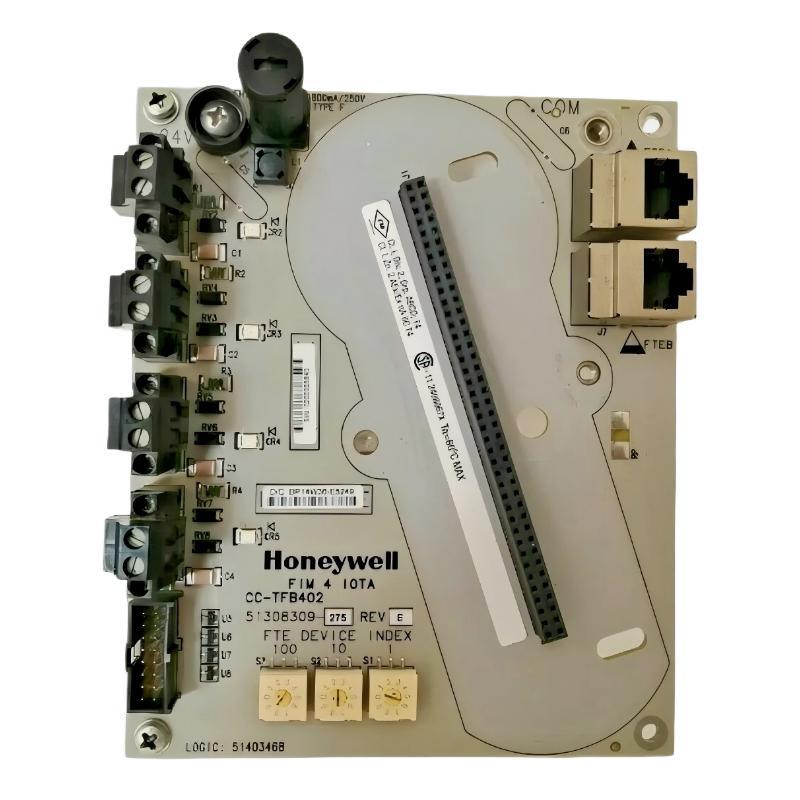

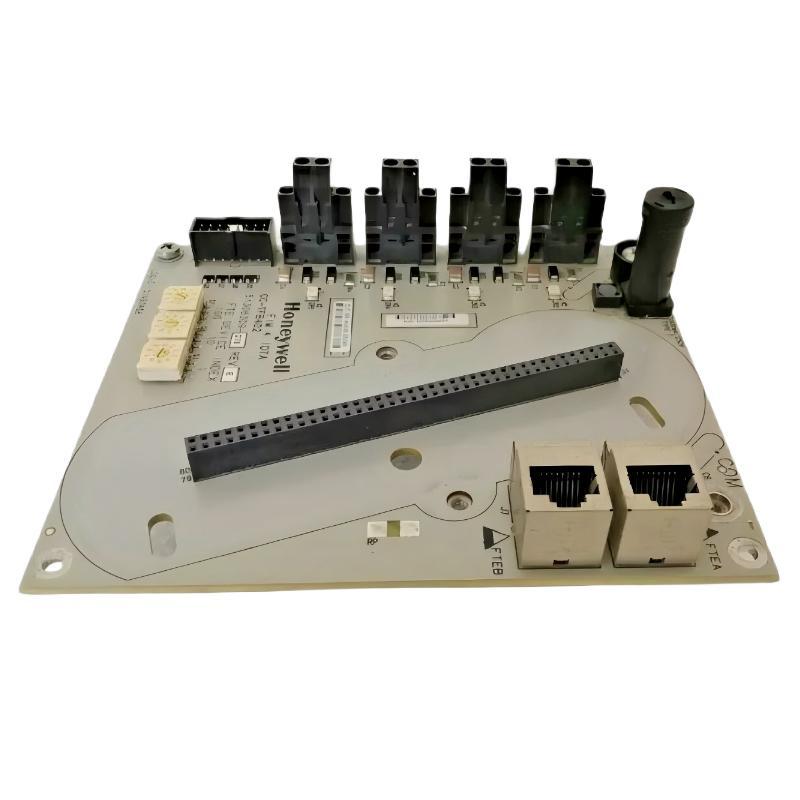

Honeywell CC-TFB402 Control Circuit Board

Overview

The Honeywell CC-TFB402 is a control circuit board designed for use in industrial automation and control systems. It manages signal processing, control logic, and communication between system components, ensuring stable and efficient operation of connected devices.

General Information

Part Number: CC-TFB402

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: Control System Circuit Boards

Type: Control Circuit Board

Mounting: Rack or chassis installation within control cabinets

Technology: Digital and analog signal processing with integrated control logic

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input Power Source: System backplane or external power supply

Protection Features: Overvoltage and short-circuit protection

Status Indicators: LED indicators for power, operation, and fault status

Communication & Interface

Function Type: Control and signal processing

Interface: System-integrated connections for I/O and communication modules

Data Handling: Processes signals from sensors, inputs, and other control modules

Diagnostics: Built-in fault detection and operational status monitoring

Configuration: Configurable through system programming tools

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: Designed for installation in industrial control cabinets

Vibration Resistance: Suitable for standard industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 120 × 100 × 30 mm

Weight: 0.25 kg
