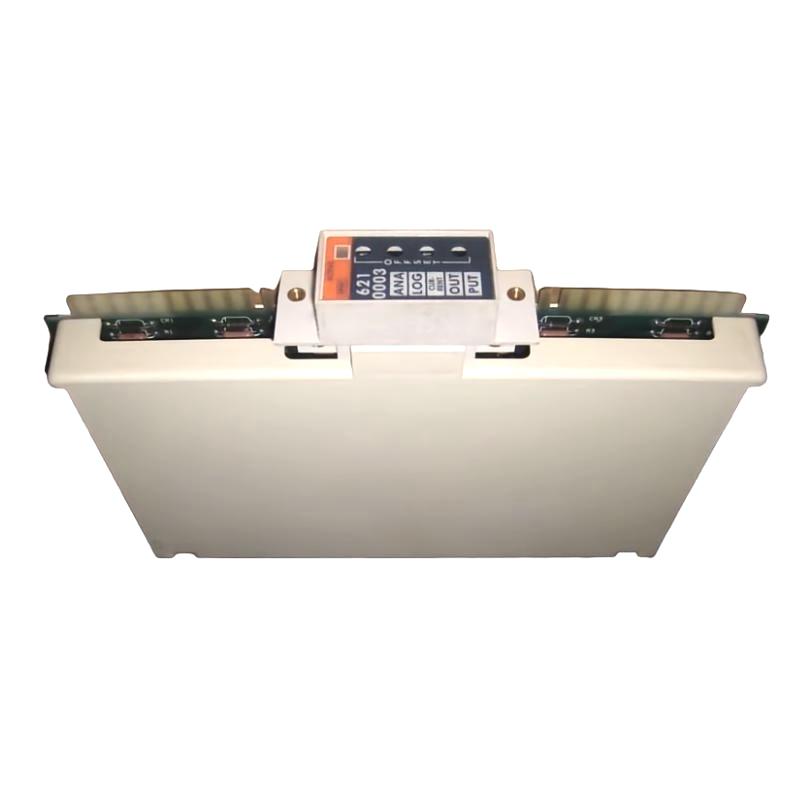

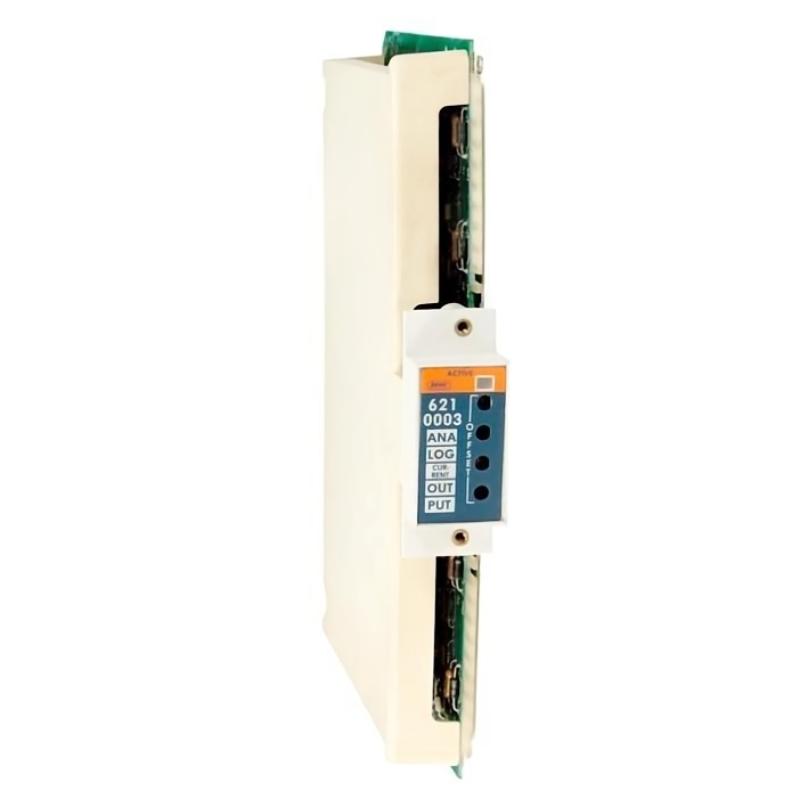

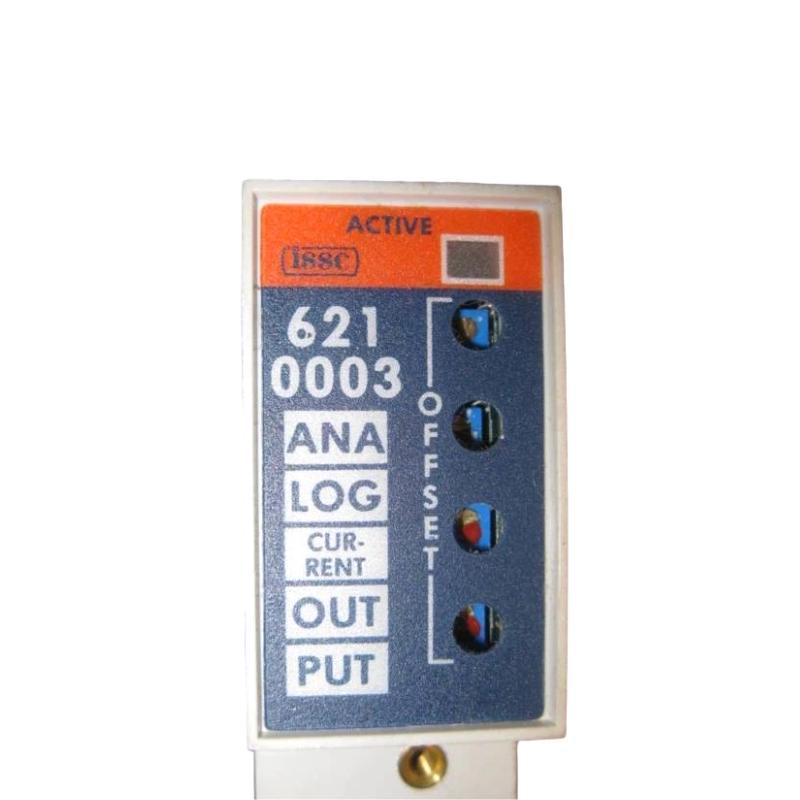

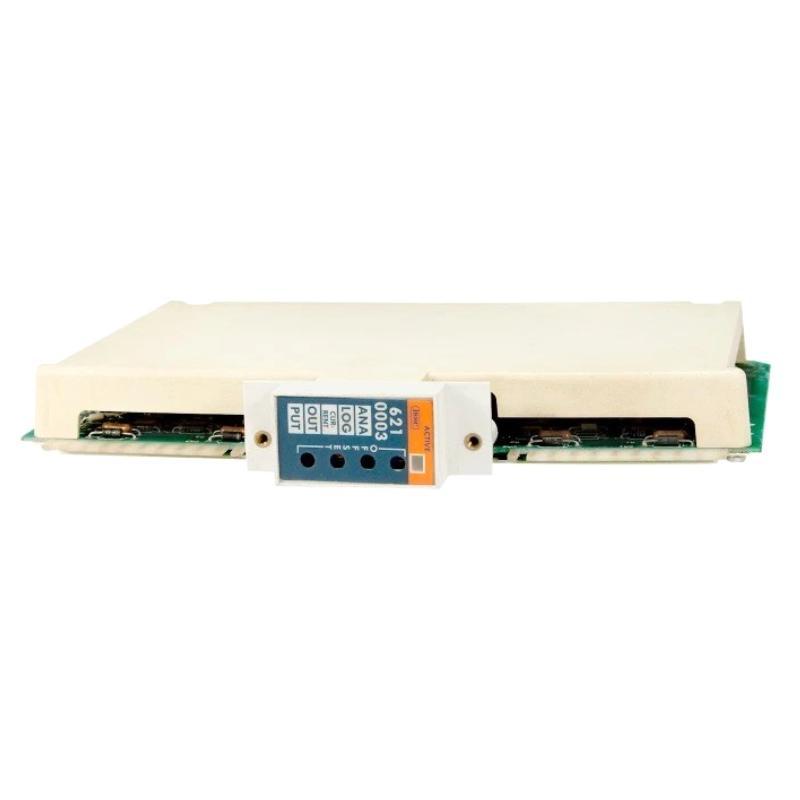

Honeywell 621-0003 Analog Output Module

Overview

The Honeywell 621-0003 is an analog output module designed for industrial automation systems. It converts digital control signals into precise analog outputs, enabling accurate control of field devices such as actuators, valves, and motors. The module ensures consistent and reliable performance in industrial process control applications.

General Information

Part Number: 621-0003

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: United States

Product Type: Analog Output Module

Function: Converts digital signals to analog outputs for process control

Application: Industrial automation, process control, and actuator control

Power Specifications

Operating Voltage: Standard industrial control voltage

Power Consumption: Low-power operation for continuous use

Current Rating: Suitable for typical analog output channel loads

Protection Features: Overvoltage, short-circuit, and fault protection

Indicators: Status LEDs for module and channel diagnostics

Communication & Interface

Interface Type: Rack or backplane-mounted I/O interface

Output Channels: Supports multiple analog output channels (system dependent)

Signal Type: Standard industrial analog outputs, including 4–20 mA and 0–10 V

Compatibility: Honeywell controllers and industrial automation platforms

Diagnostics: Channel-level fault detection and module status reporting

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: -20 to +70 °C

Relative Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Industrial-grade mounting suitable

Shock Resistance: Designed for stable operation in control cabinets

Protection Rating: Suitable for installation in industrial enclosures

Dimensions & Weight

Dimensions (L × W × H): 230 × 40 × 160 mm

Weight: 0.45 kg

Precise Analog Control for Industrial Automation Excellence
