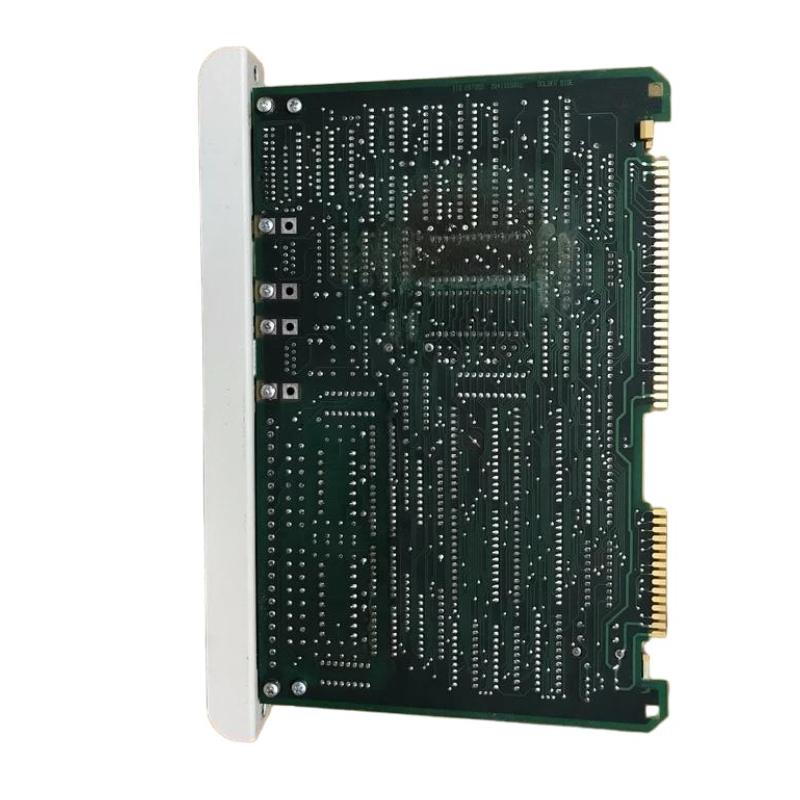

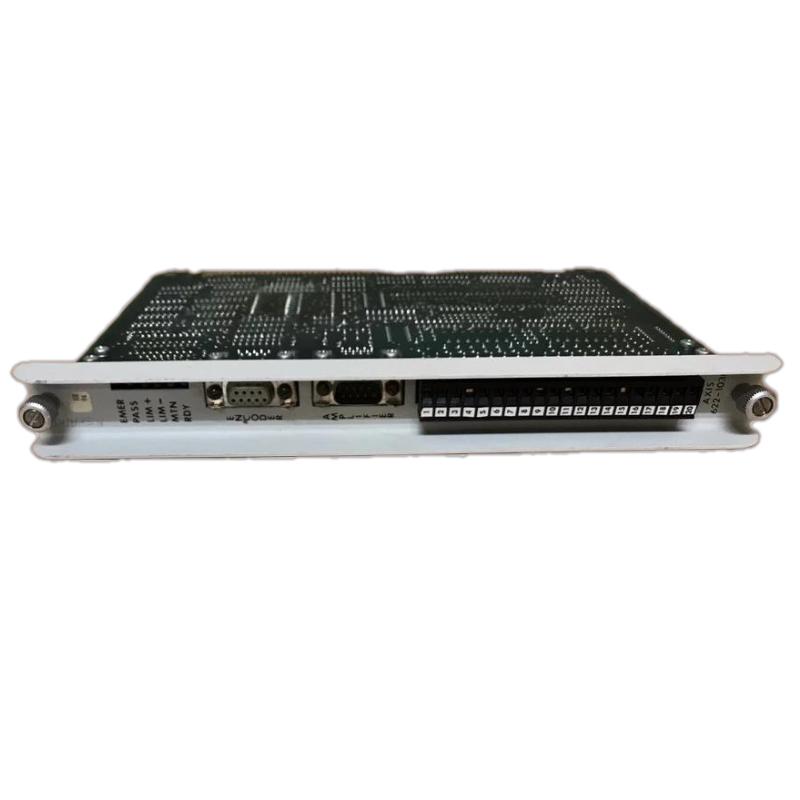

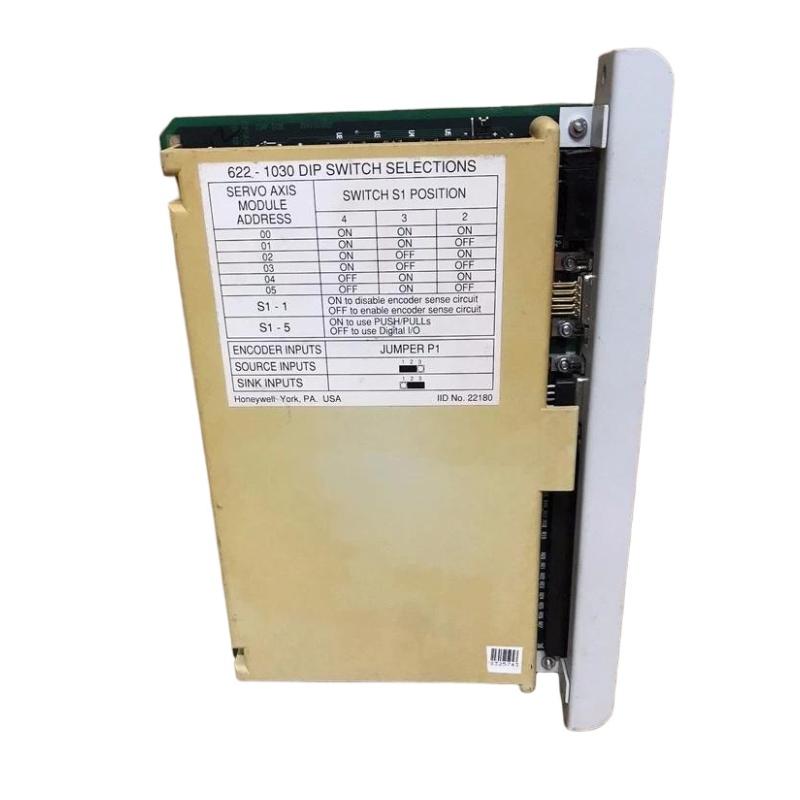

Honeywell 622-1030 Servo Axis Module

Overview

The Honeywell 622-1030 is a servo axis module designed for precise motion control in industrial automation systems. It provides accurate positioning, speed regulation, and torque control for servo-driven equipment, ensuring stable and responsive performance in high-precision applications such as robotics, packaging, and process machinery.

General Information

Part Number: 622-1030

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: United States

Type: Servo Axis Module

Series: 622 Series

Function: Servo motor control and axis positioning management

Application: Industrial motion control, robotics, servo-driven machinery, automation systems

Mounting: Rack or chassis installation

Power Specifications

Supply Voltage: Powered via system backplane

Motor Interface: Servo drive signal output support (system dependent)

Power Consumption: Low-power control module design

Protection: Overcurrent and system fault protection via controller

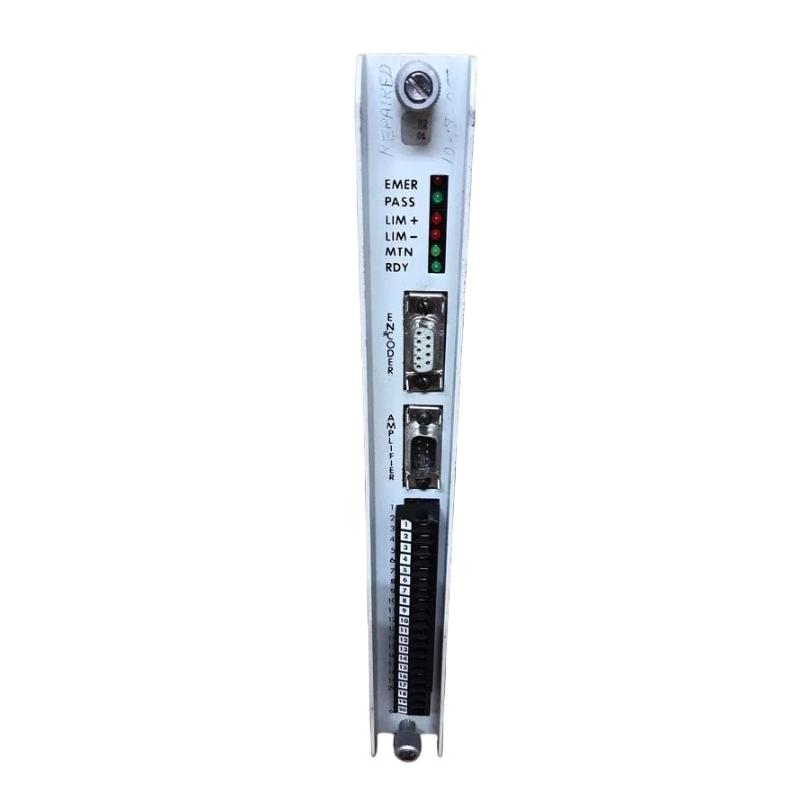

Indicators: LED status indicators for axis and module status

Communication & Interface

Interface Type: System backplane communication interface

Control Function: Closed-loop servo control (position, speed, torque)

Feedback Support: Encoder / feedback device integration (system dependent)

Diagnostics: Axis fault detection, load monitoring, and system alarms

System Compatibility: Honeywell industrial motion and automation platforms

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: −40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Industrial-grade control cabinet use

Protection Rating: Installed inside protected rack system

Dimensions & Weight

Dimensions (H × W × D): 266.7 × 177.8 × 38.1 mm

Weight: 0.87 kg

Precision Motion • Stable Control Performance
