Honeywell FC-SDO-0824 Safe Digital Output Module Shelf life 1 year

Overview

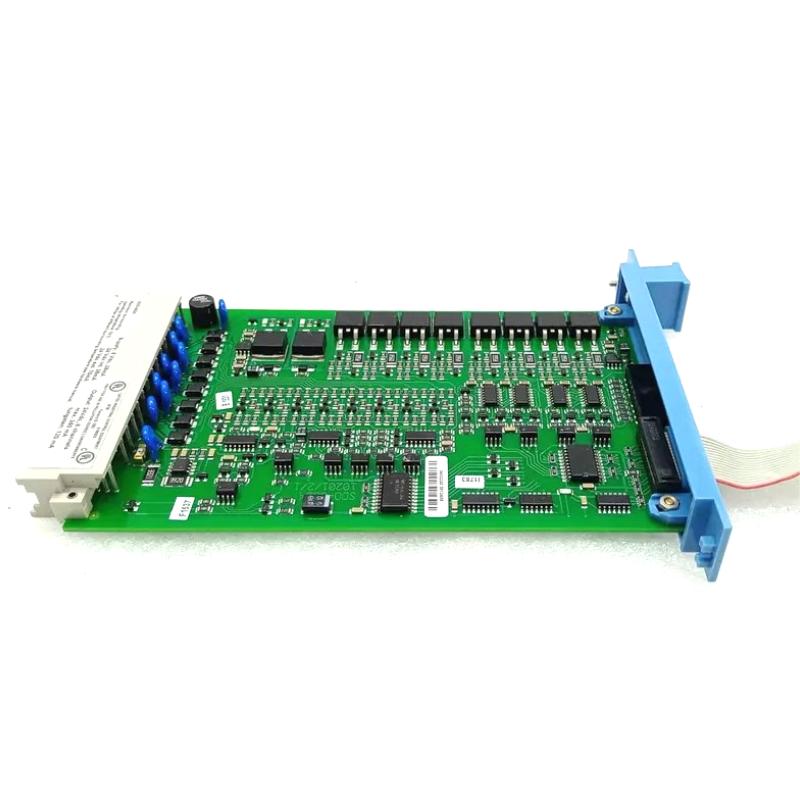

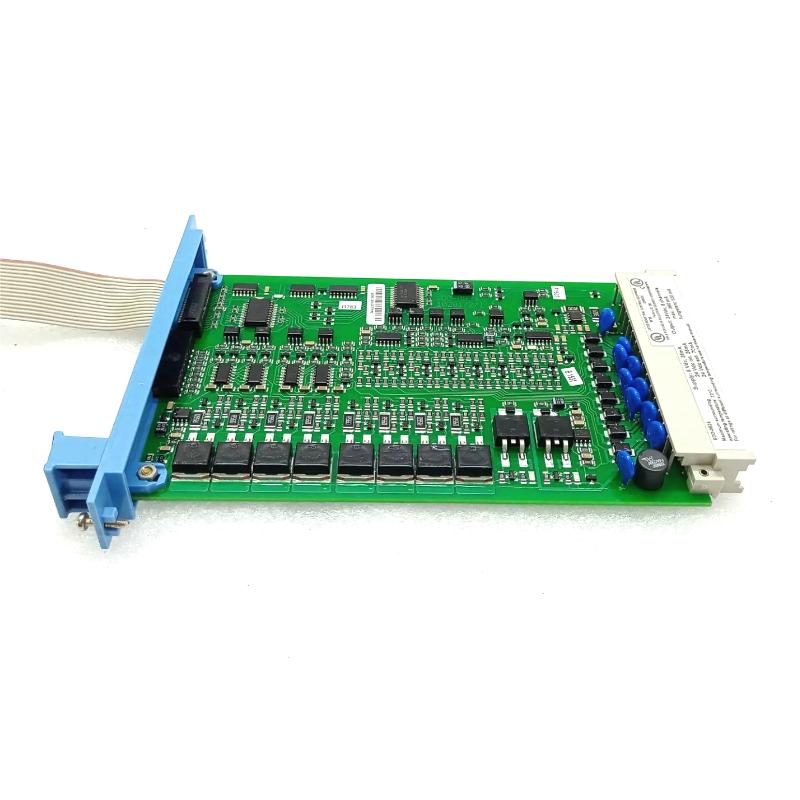

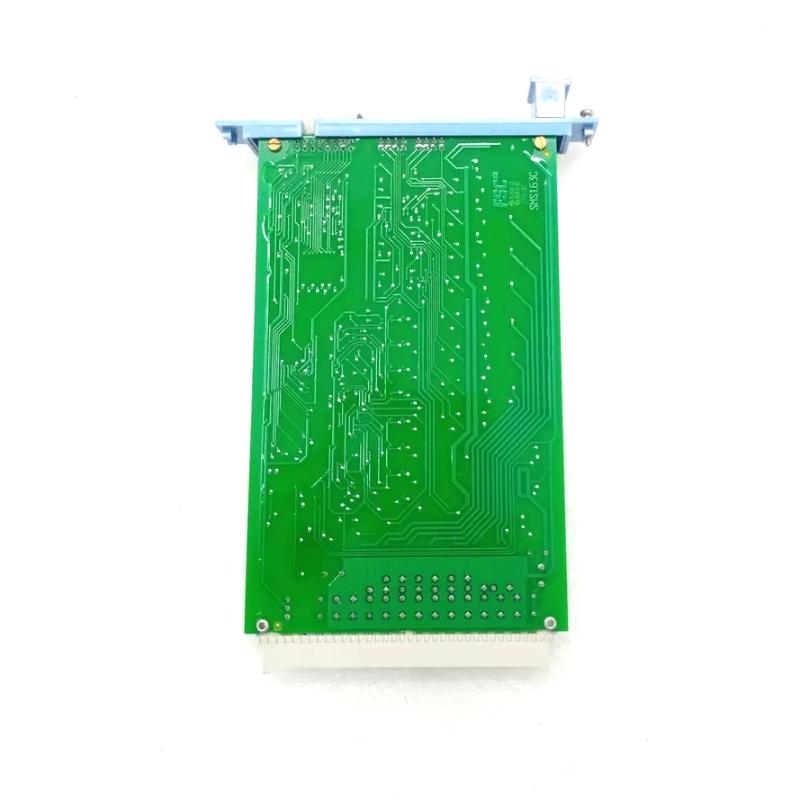

The Honeywell FC-SDO-0824 is a safety-rated digital output module designed for use in Honeywell’s Safety Manager / FC-series I/O systems. It features eight 24 V DC solid-state output channels with integrated safety and diagnostic functions suitable for Safety Instrumented Systems (SIS).

General Information

• Model / Type: FC-SDO-0824

• Manufacturer: Honeywell

• Country of Origin: USA

• Product Category: Safe Digital Output Module – 8 channels, 24 V DC

• Application: Safety instrumented systems (SIS), redundant I/O racks in industrial automation

Electrical & Functional Specifications

• Number of Output Channels: 8

• Output Voltage: 24 V DC solid-state source

• Maximum Current per Channel: 0.55 A (550 mA) typical; derated to ~0.35 A at 70 °C ambient

• Load Capability: Supports resistive or inductive loads with built-in suppression diode (load capacitance up to 1 µF)

• Voltage Drop at Max Current: < 2.0 V DC

• Off-Current (no-load): < ~0.1 mA

• Power Supply Requirements:

• 5 V DC logic supply: ~25 mA

• 24 V DC internal: ~25 mA

• 24 V DC external: ~70 mA (no output load)

• Space / Slot Requirements: Occupies 4 TE width, 3 HE height in rack system

• Safety Certifications: CE, TÜV, UL, CSA, FM

Environmental Conditions

• Operating Temperature Range: Approximately −20 °C to +60 °C (ambient)

• Storage Temperature Range: Approximately −40 °C to +85 °C

• Humidity: Up to 95% RH, non-condensing

• Protection Rating: IP20 (module standard internal cabinet environment)

• Mounting: Rack or chassis mounting in safety I/O system

Dimensions & Weight

• Dimension: Approximately 196.9  × 149.4  × 74.4 mm

• Weight: Approximately 0.38 kg
