Overview

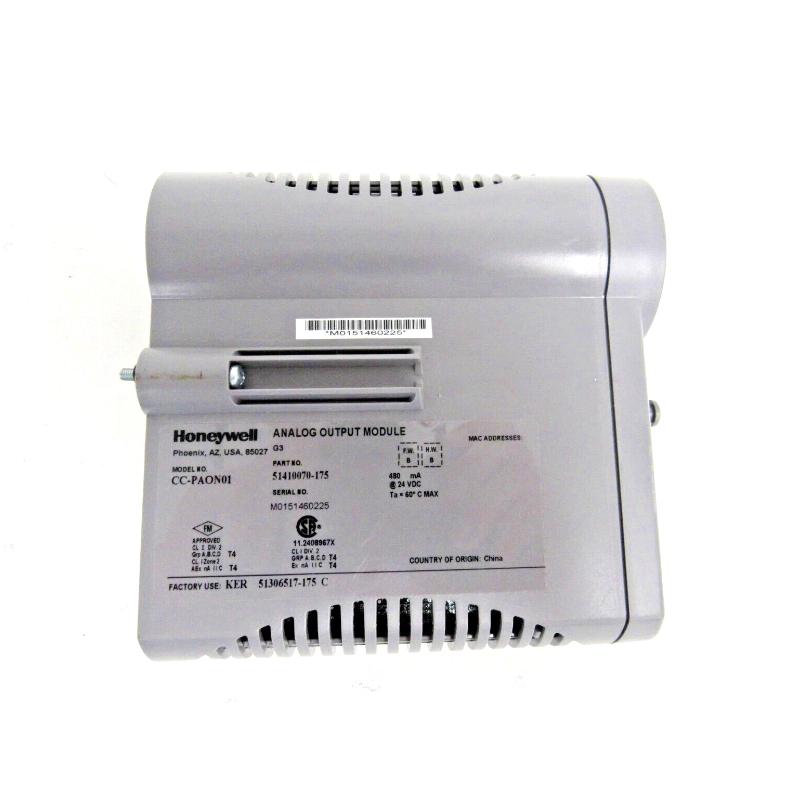

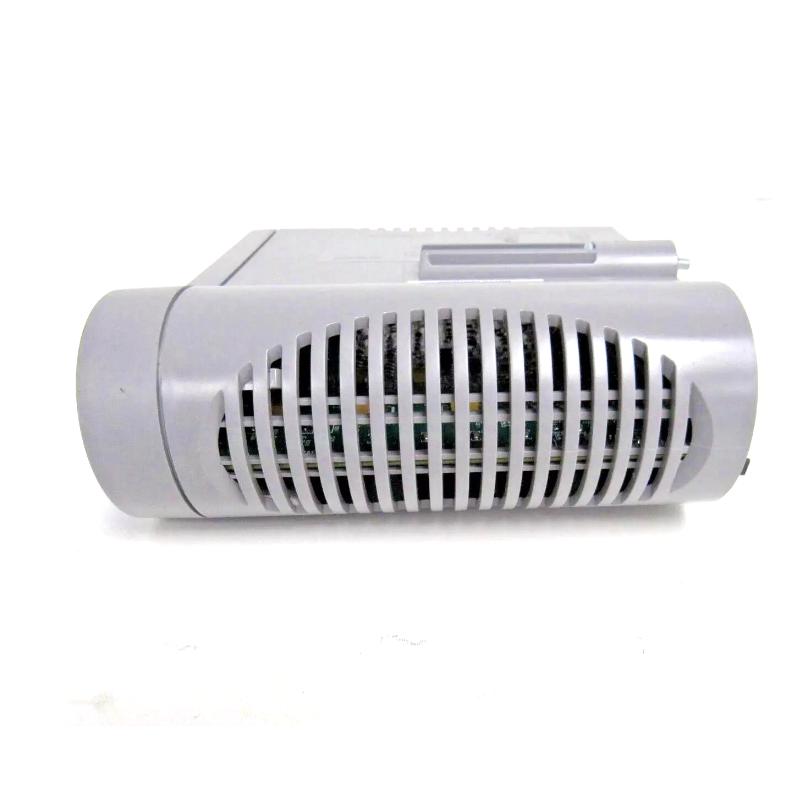

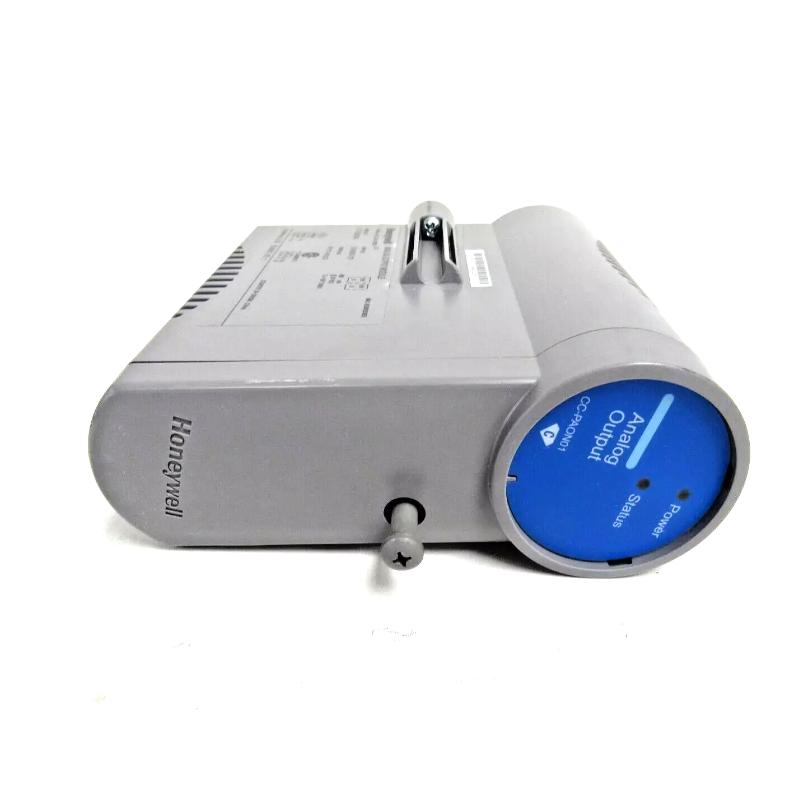

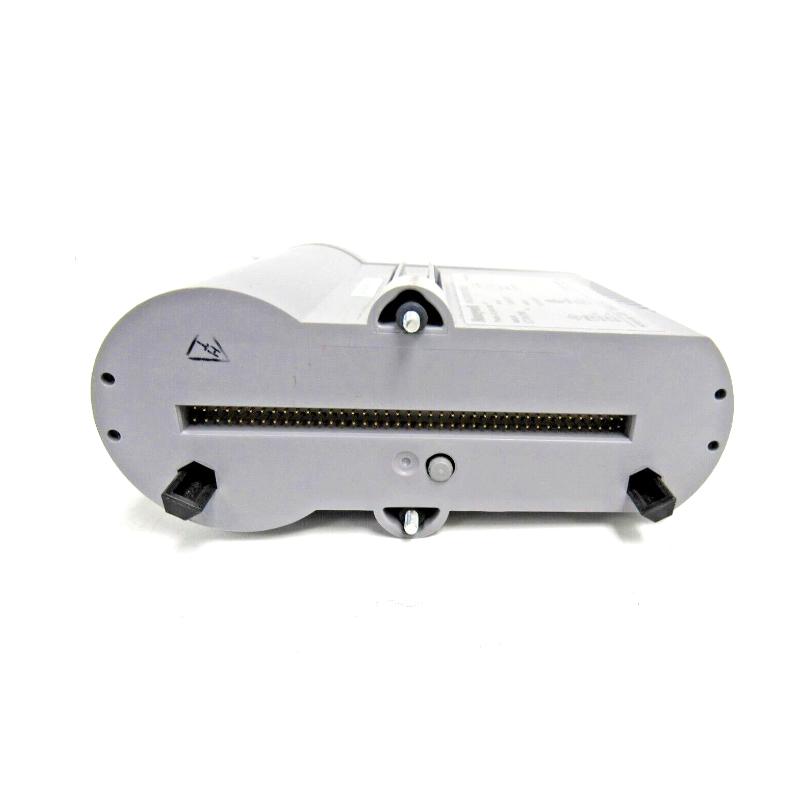

The Honeywell CC-PAON01 51410070-175 is an analog output module used in Honeywell Experion control systems. It provides reliable 4–20 mA current output signals to control devices such as actuators and indicators.
General Information
Part Number: CC-PAON01 51410070-175
Manufacturer: Honeywell International Inc.
Brand / Country of Origin: Honeywell / USA
Type: Analog Output Module
Mounting: Installed on Series-C I/O rack
Technology: 16-channel high-level current output with diagnostics and redundancy support
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 8 W
Output Signal: 4–20 mA
Protection: Overload and open-wire detection
Indicators: LEDs for status and fault indication
Communication & Interface
Interface: Series-C I/O backplane
Communication Speed: High-speed data exchange with controller
Diagnostics: Continuous monitoring of output condition and communication status
Redundancy: Supports dual-module configuration
Environmental
Operating Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for industrial cabinet installation
Dimensions & Weight
Dimensions (L × W × H): 313 × 247 × 65 mm
Weight: Approx. 3.0 kg
