Honeywell CC-PDOB01 51405043-175 | Digital Output Module 12-Month Warranty

Overview

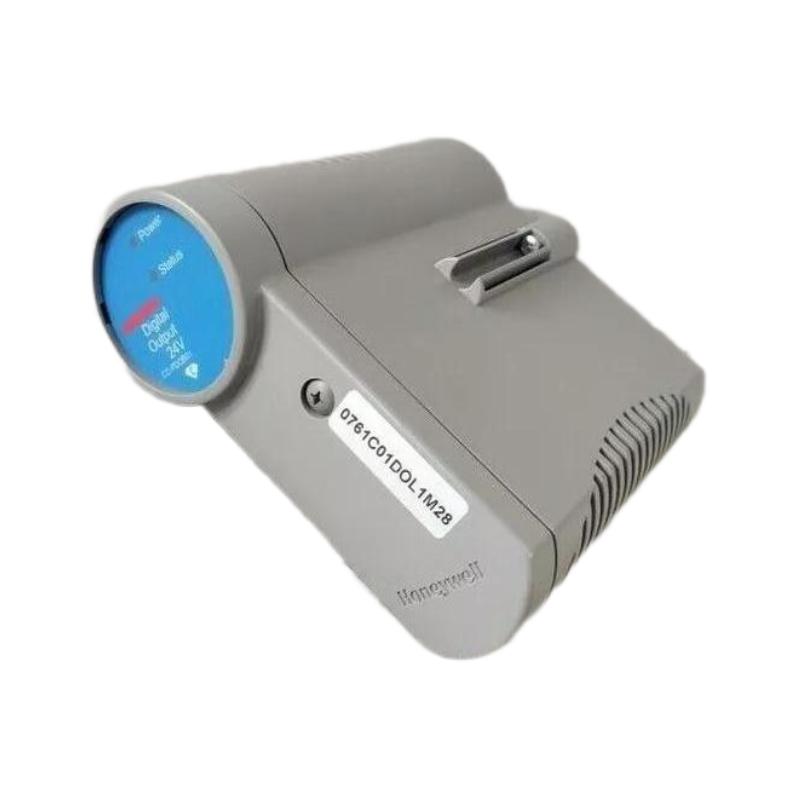

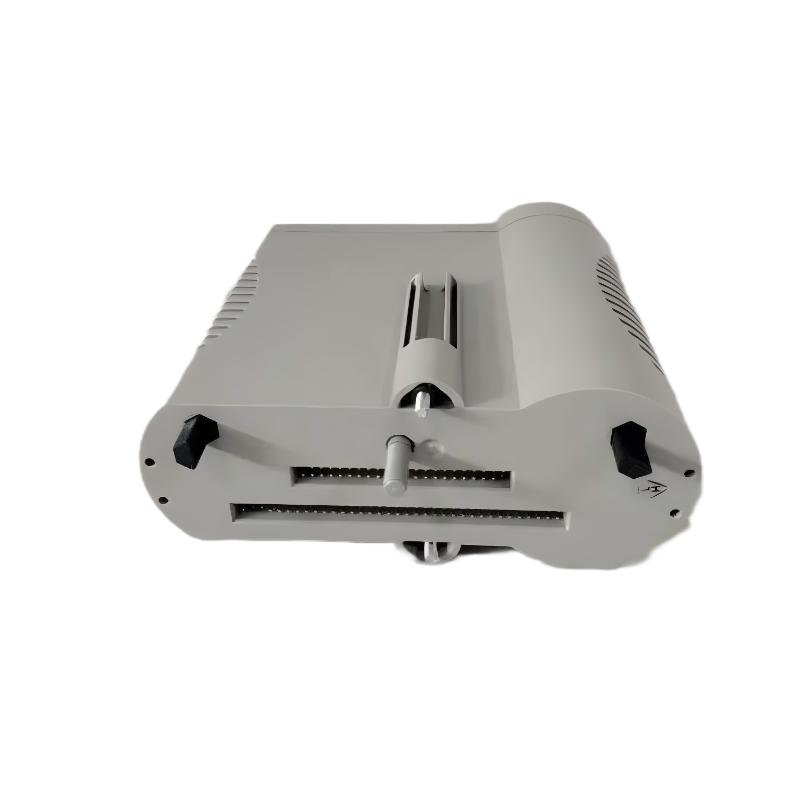

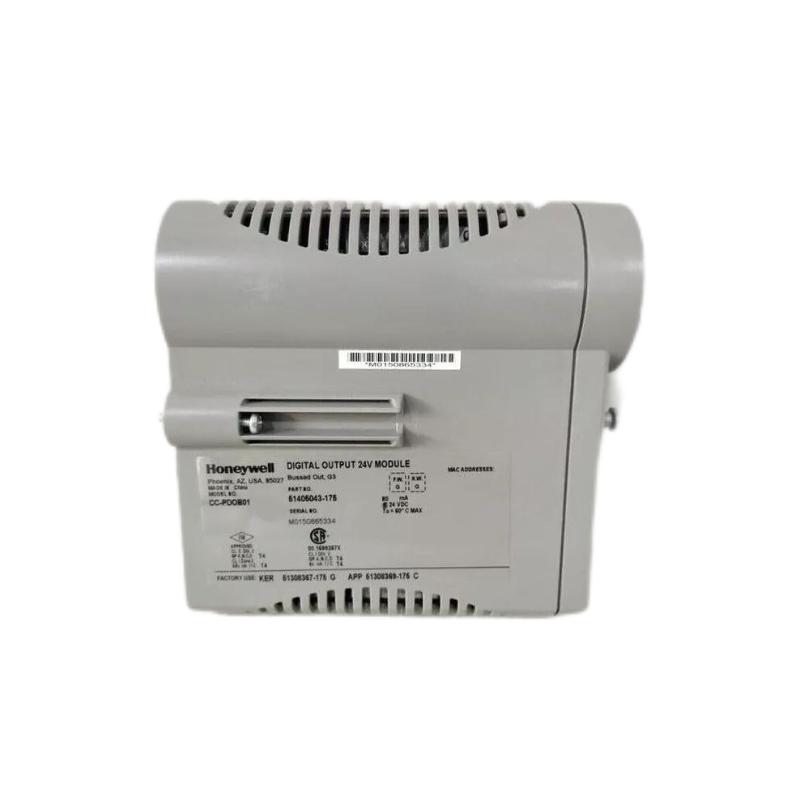

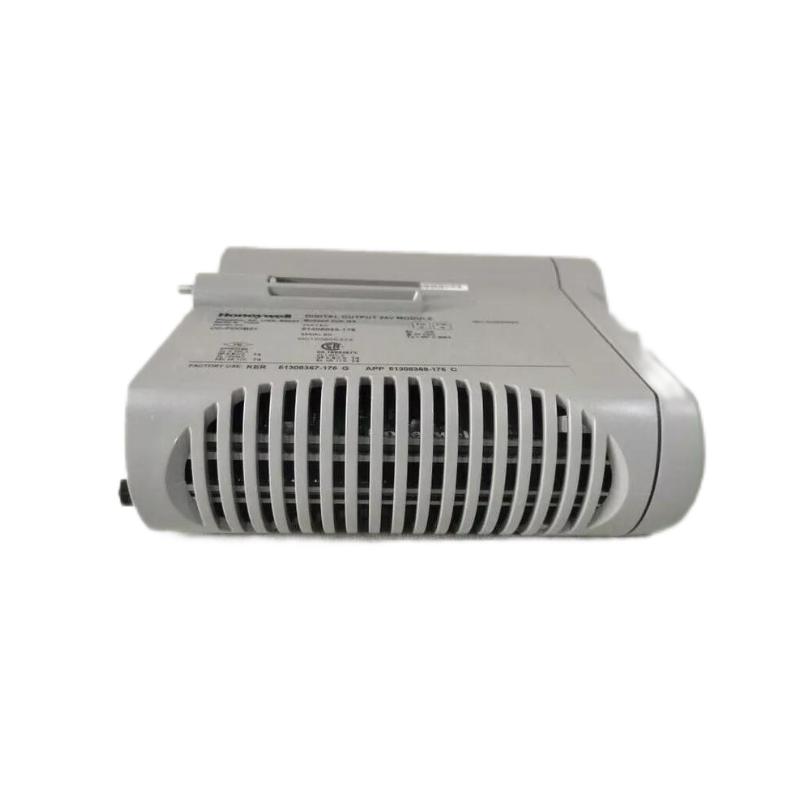

The Honeywell CC-PDOB01 51405043-175 is a 32-channel digital output module designed for industrial control systems. It provides reliable 24 V DC discrete outputs, integrates advanced diagnostics and isolation features, and supports system redundancy for high-availability operation.

General Information
Part Number: CC-PDOB01 51405043-175
Manufacturer: Honeywell International Inc.
Brand / Country of Origin: Honeywell / USA
Type: Digital Output Module (32 Channels)
Mounting: Plug-in I/O rack installation
Technology: Bussed 24 V DC outputs, galvanic isolation, fuse-less short-circuit protection

Power Specifications
Supply Voltage: 24 V DC
Load Voltage: 15-30 V DC maximum
On-State Current: Up to 0.5 A per channel in normal conditions
Off-State Leak Current: ≤ 0.5 µA
Turn-On/Turn-Off Time: ≤ 10 ms
Galvanic Isolation: 1500 V AC RMS or ±1500 V DC between outputs and logic

Communication & Interface
Interface: I/O backplane connection to controller system
Output Channels: 32 discrete outputs
Diagnostics: Per channel monitoring, open-wire detection, short-circuit isolation, configurable fail-safe (FAILOPT) behaviour
Redundancy: Supports dual-module redundant installation for continuous operation

Environmental
Operating Temperature: −40 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Standard industrial control cabinet

Dimensions & Weight
Dimensions (L × W × H): Approx. 191 × 188 × 65 mm
Weight: Approx. 0.30 kg

We supply only brand-new, authentic items, with ready-to-ship stock and responsive online support.
