Allen Bradley MPL-A220T-EJ72AA servo motor installation should focus on mechanical alignment, motor wiring, feedback connections, and drive configuration. Most commissioning problems are caused by incorrect cabling, poor coupling alignment, or mismatched motor parameters rather than an immediate motor hardware failure.
Allen Bradley MPL-A220T-EJ72AA Servo Motor Installation Requirements

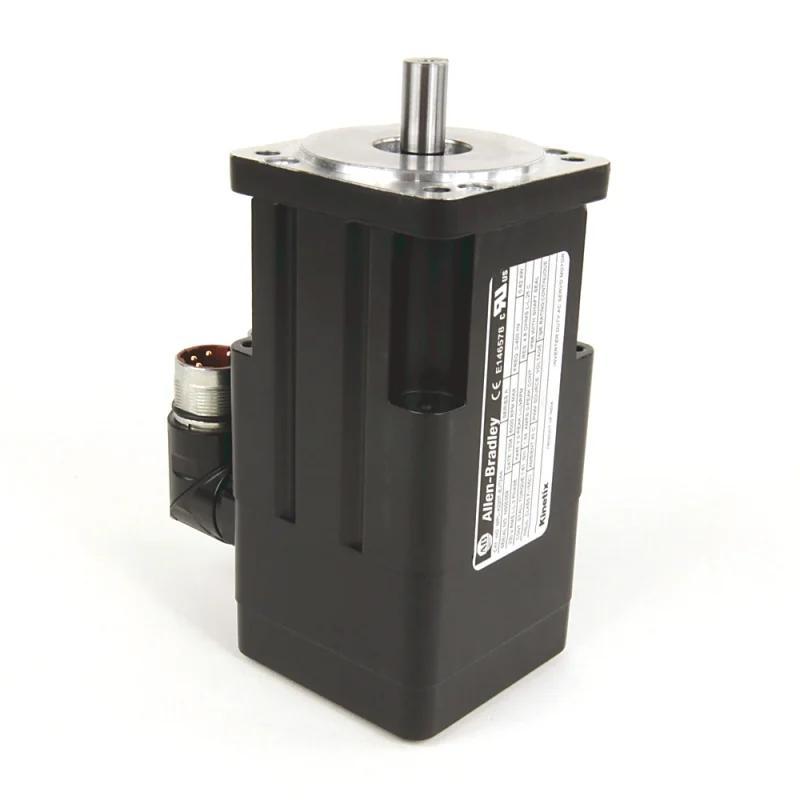

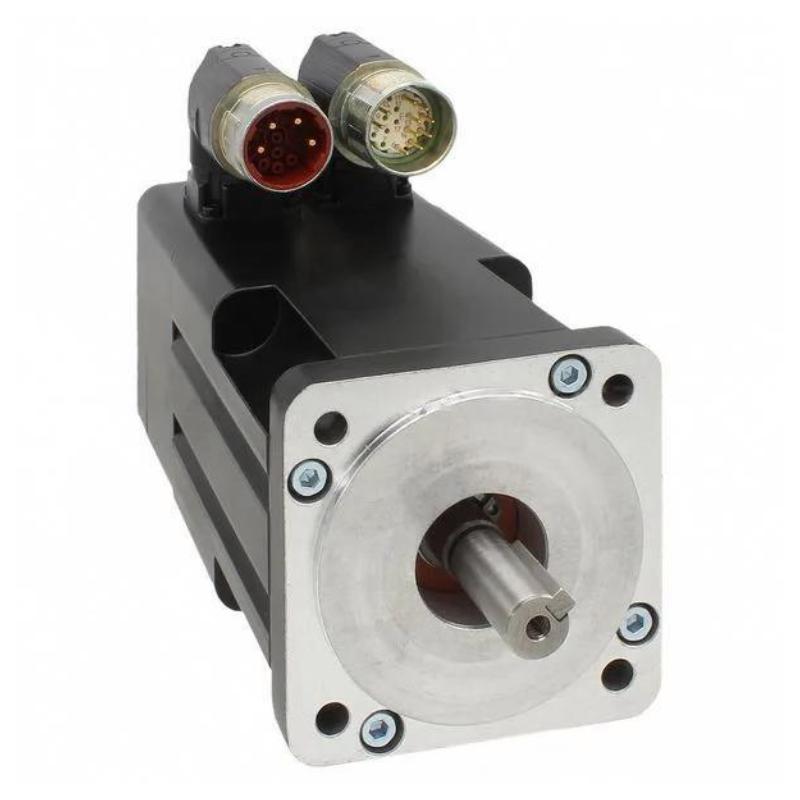

The MPL-A220T-EJ72AA is an Allen Bradley servo motor designed for coordinated motion-control applications. Before installation, verify the motor nameplate, compatible servo drive, feedback arrangement, shaft requirements, mounting dimensions, and machine load.
Prepare the installation area by checking:
Motor and drive compatibility
Mounting surface condition
Coupling or gearbox alignment
Power and feedback cables
Protective grounding
Cable routing
Available cooling airflow
Mechanical load and travel limits
For replacement work, photograph the original motor connections and record the existing drive parameters before disconnecting the motor.
Allen Bradley MPL-A220T-EJ72AA Servo Motor Mechanical Setup
Mechanical alignment is one of the most important parts of servo motor Setup.
Mount the motor securely and make sure the shaft is correctly aligned with the driven mechanism. Excessive radial or axial loading can increase bearing stress and produce abnormal vibration even when the motor's electrical parameters are correct.
The coupling should not be forced onto the shaft. Check for mechanical interference by manually rotating the assembly where the machine design permits.
A practical field check is to compare motor shaft movement with the machine mechanism before enabling full automatic motion. Any unusual resistance should be corrected before applying servo power.
Allen Bradley MPL-A220T-EJ72AA Servo Motor Wiring
The motor power connection must be matched to the corresponding servo drive terminals. Keep motor power cables separated from feedback and low-level signal cables where possible.
Pay particular attention to:
Motor phase connections
Protective earth
Feedback connector
Cable shielding
Connector locking
Cable bend radius
Drive-side termination
Do not assume that a motor that physically fits the machine is electrically interchangeable with another servo motor. The drive's motor configuration must correspond to the installed motor.
Allen Bradley MPL-A220T-EJ72AA Servo Motor System Configuration
Before Setup / Commissioning, load or verify the correct motor configuration in the servo drive.
Confirm the motor model, feedback settings, direction, scaling, acceleration and deceleration limits, and application-specific tuning parameters.
The initial commissioning test should use conservative motion limits. Command a small movement first and confirm that the actual shaft direction matches the commanded direction.
If the motor moves opposite to the expected direction, stop the test rather than compensating blindly through mechanical changes.
Allen Bradley MPL-A220T-EJ72AA Servo Motor Commissioning Checks
A controlled Commissioning sequence should verify the system in three stages:
Static check: confirm wiring, grounding, feedback recognition, and drive status.
Low-speed check: command a small controlled movement and observe position feedback.
Operating check: gradually introduce the normal acceleration, speed, and load profile.
In one commissioning case, the motor produced a noticeable vibration during the first positioning test. The initial suspicion was servo tuning, but inspection showed slight coupling misalignment. After mechanical correction, the vibration was substantially reduced without changing the drive tuning parameters.
This is a useful field lesson: do not adjust servo gains to compensate for a mechanical installation problem.
Allen Bradley MPL-A220T-EJ72AA Servo Motor Installation Validation
After commissioning, check actual machine performance under representative load conditions. Monitor position error, acceleration response, motor temperature, abnormal noise, and vibration.
If the motor performs correctly without load but becomes unstable under production load, investigate mechanical inertia, coupling condition, load balance, and tuning rather than assuming that the motor itself is defective.
Record the final drive configuration and commissioning results so that future maintenance personnel can distinguish normal operating behavior from a developing fault.
