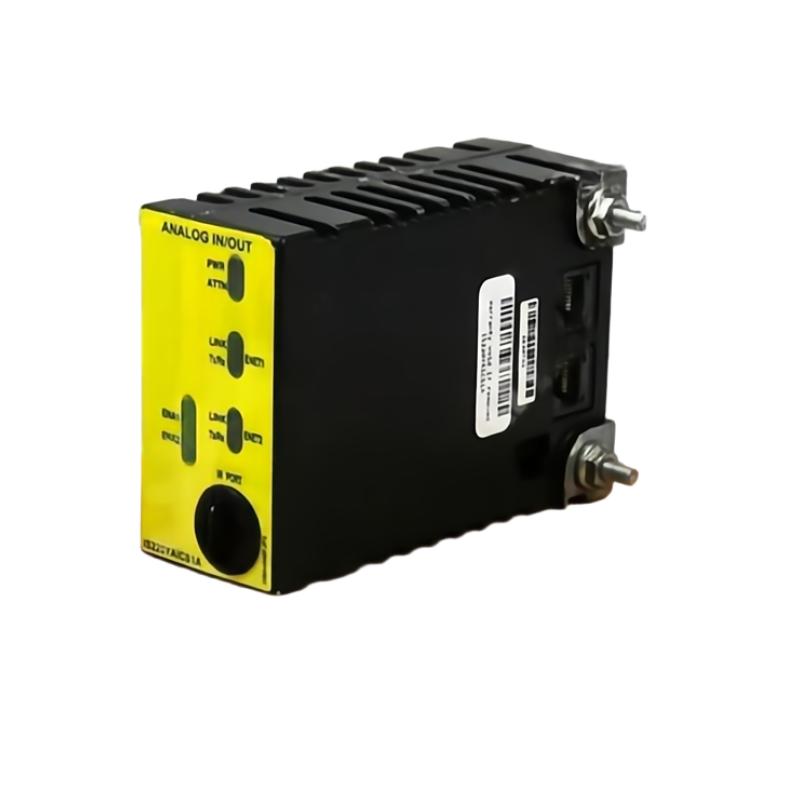

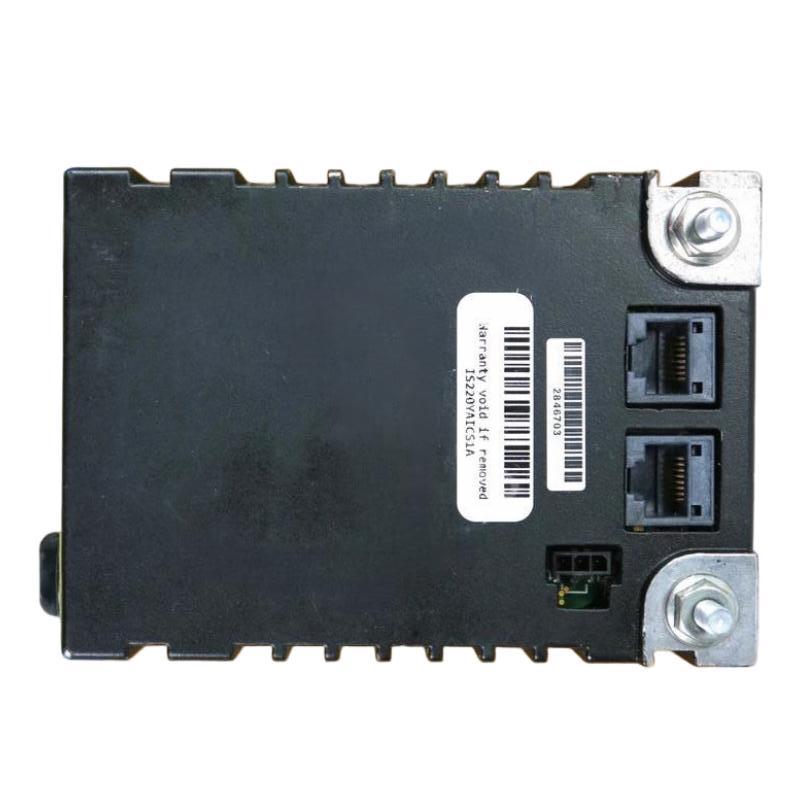

GE IS220YAICS1A I/O Analog Module Troubleshooting Guide
Time:2026-08-26 Browse: 0
GE IS220YAICS1A troubleshooting should distinguish a genuine module fault from field wiring, signal-source, and configuration problems. When an analog channel reports an abnormal value, the fastest Fault Diagnosis method is to follow the signal path instead of replacing the I/O module first.
GE IS220YAICS1A Analog Module Fault Symptoms
Typical symptoms may include:
Analog value fixed at one level
Channel reading significantly different from the field source
Intermittent signal fluctuations
Incorrect engineering value after scaling
Loss of one channel while other channels remain normal
Controller reporting an I/O channel abnormal condition
The pattern of the fault is important. A single abnormal channel points toward a channel-specific problem, while several channels changing simultaneously suggests a common wiring, power, configuration, or system-level issue.
GE IS220YAICS1A Fault Diagnosis Thinking Process
Start by asking a simple question:
Is the abnormal value already present at the field device, or does it appear later in the signal path?
Measure the field signal independently where appropriate and compare it with the value reported by the control system.
For example, if the field source produces a stable 12.0 mA signal but the controller displays a value corresponding to approximately 4 mA, the field instrument is unlikely to be the first suspect. The investigation should move toward wiring, channel assignment, signal reference, or configuration.
GE IS220YAICS1A Intermittent Signal Fault
An intermittent analog signal is often more difficult to diagnose than a completely dead channel.
In one field investigation, an analog value repeatedly moved between approximately 48% and 52% while the process itself was stable. The IS220YAICS1A was initially suspected because the fluctuation appeared only on one channel.
Instead of replacing the module, the technician monitored the signal at the field termination point and then at the I/O connection. The field signal was stable, while movement was observed at the termination connection when the cable was disturbed. The actual cause was a loose termination rather than an electronic module failure.
After tightening and rechecking the connection, the displayed value remained stable during extended observation.
GE IS220YAICS1A Incorrect Analog Reading
An incorrect reading requires comparison between raw signal and engineering value.
Check the following relationship:
Measured input → configured channel type → scaling → displayed engineering value
If the raw signal is correct but the displayed process value is wrong, review the System Configuration before changing hardware.
For example, a transmitter producing a known mid-range signal should not be diagnosed as defective simply because the controller shows an unexpected process value. Incorrect range selection or scaling can produce a perfectly stable but incorrect reading.
GE IS220YAICS1A Channel Failure Diagnosis
If one channel remains abnormal while neighboring channels operate normally, compare the affected channel with a known-good channel using the approved commissioning procedure.
Useful observations include:
Does the field source produce the expected signal?
Does the signal remain stable at the termination point?
Is the affected channel correctly assigned?
Are the channel parameters consistent with the project configuration?
Does the fault follow the field wiring or remain associated with the module channel?
The last question is particularly useful. If the abnormal behavior follows the external signal path, investigate the field circuit. If the problem remains associated with the same module channel after external causes have been eliminated, module-level Fault Diagnosis becomes more credible.
GE IS220YAICS1A Repair Decision
Do not treat every abnormal analog value as evidence of hardware failure.
A practical repair decision should be based on isolation results:
Correct field signal + correct wiring + correct configuration + abnormal module response = investigate module hardware
Before replacing the IS220YAICS1A, record the measured signal, affected channel, controller indication, and configuration parameters. This provides a useful baseline for post-repair validation and helps prevent the same fault from returning unnoticed.
