Honeywell 51153818-202 Node Address Jumper is used to assign the node address of an IOTA in Honeywell Safety Manager systems. This jumper kit covers node addresses 11 through 20 and is used with the RUSIO-3224 or RUSLS-3224 modules. During installation, the most important checks are the address range, jumper identification, IOTA location, and system configuration.

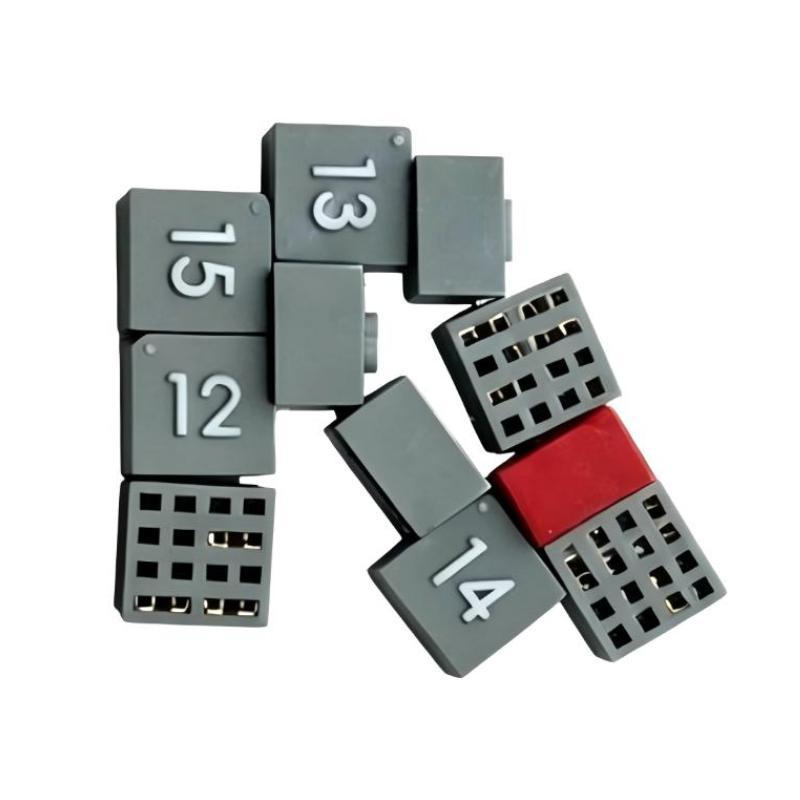

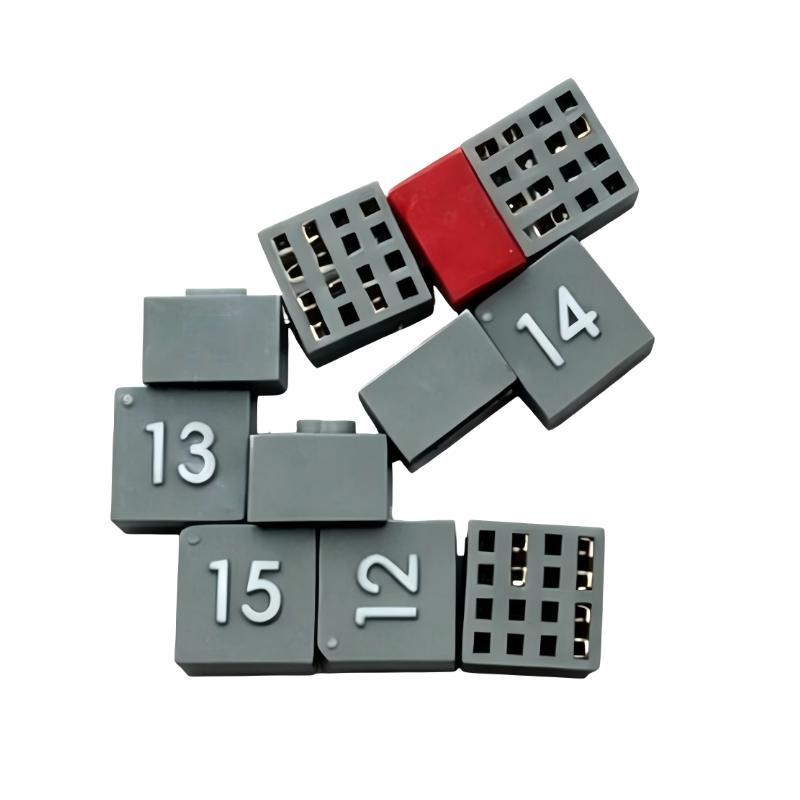

The 51153818-202 is a gray plastic node address jumper kit with clearly visible two-digit markings. The kit contains the address numbers 11 to 20. The jumper provides the processor with the node address associated with the IOTA, allowing the control system to identify the corresponding I/O location correctly.
The jumper itself is a small component, approximately 10.2 × 10.2 × 6.1 mm according to Honeywell documentation. Because the physical size is small, the printed address should be checked before installation rather than relying on the position of the jumper in the cabinet.

Before installation, confirm the IOTA address specified in the System Configuration. If the assigned address is between 11 and 20, the 51153818-202 kit provides the appropriate jumper.
A practical preparation check should include:
Confirm the target IOTA and associated RUSIO-3224 or RUSLS-3224 module.
Verify the configured node address.
Select the jumper carrying the exact two-digit address.
Check that the jumper is physically undamaged.
Confirm that the selected address does not duplicate another IOTA on the same network arrangement.
This verification is particularly important when several IOTAs are installed in the same cabinet. A visually similar jumper with a different number can create a configuration problem even though the component itself appears to be correctly installed.
Install the selected jumper onto the designated IOTA position according to the applicable Honeywell hardware configuration.
The number printed on the jumper should remain clearly identifiable after installation. For example, if the System Configuration assigns address 16 to the IOTA, the jumper marked 16 should be selected from the 51153818-202 kit.
Do not select a jumper simply because it belongs to the correct kit. The kit range is 11 through 20; the individual jumper still has to match the address assigned to the specific IOTA. Honeywell documentation identifies the 51153818-201, 51153818-202, 51153818-203, and 51153818-204 kits as the 01–10, 11–20, 21–30, and 31–40 address ranges respectively.
The jumper does not function as a conventional field wiring component. Its purpose is address identification, so commissioning should focus on whether the physical address agrees with the engineering configuration.
After installation, compare three items:
The number printed on the jumper.
The address assigned to the IOTA in the System Configuration.
The node address recognized by the control system.
These three values should agree.
If the physical jumper shows 18 while the engineering configuration expects 16, changing communication wiring or replacing the processor will not solve the problem. The first corrective action should be to resolve the address mismatch.

Although the 51153818-202 is not itself a PLC Controller or I/O Module, it directly affects how the associated I/O hardware is identified by the control system.
During commissioning, verify that the expected IOTA is associated with the correct node address. Check the controller diagnostics and confirm that the corresponding I/O point information is being displayed at the expected location.
A useful field practice is to record the physical jumper number against the cabinet drawing before closing the cabinet. This creates a simple reference for later Troubleshooting and Fault Diagnosis.
In a typical commissioning situation, an I/O node may appear unavailable even though the RUSIO-3224 module and communication connections test normally.
The first diagnostic question should be whether the physical node address matches the engineering configuration.
For example, assume the cabinet documentation assigns address 17 to an IOTA, while the installed jumper is marked 19. The communication hardware may be powered correctly and the module may show normal status indications, but the system can still fail to associate the I/O with the expected node.
Replacing the module at this stage would be poor troubleshooting practice. The more logical approach is to verify the address first, install the correct jumper, and then repeat commissioning validation.
Common search terms associated with this installation include Honeywell 51153818-202 installation guide, Honeywell 51153818-202 node address jumper setup, 51153818-202 IOTA address configuration, Honeywell node address jumper commissioning, 51153818-202 jumper installation, and Honeywell RUSIO-3224 node address setup.
These terms describe the practical engineering tasks involved in installing and commissioning the jumper rather than treating it as a standalone electrical component.
