Foxboro RH926KP Power Supply Cable Installation Overview

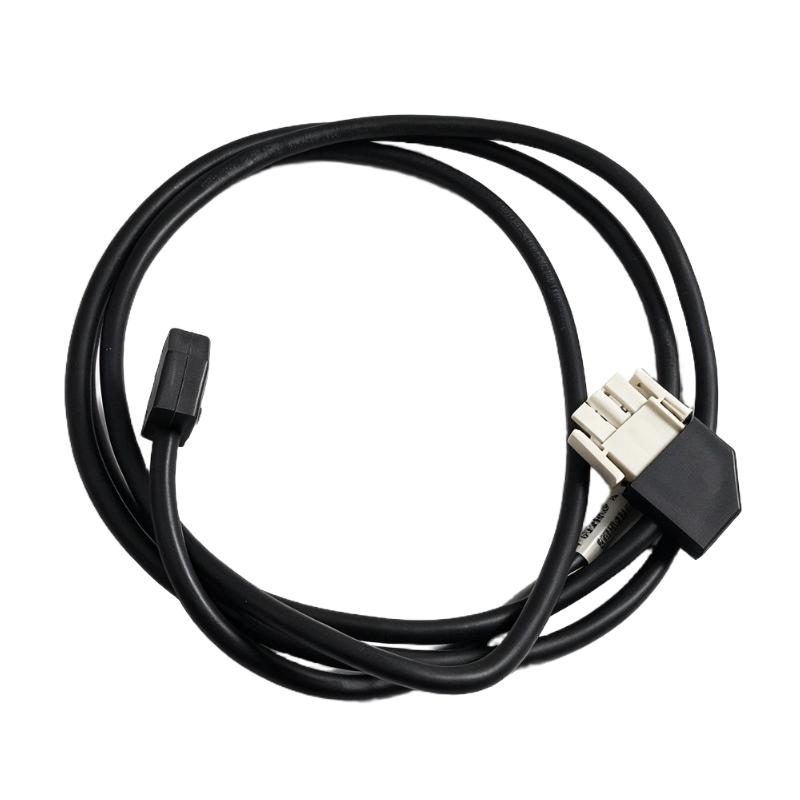

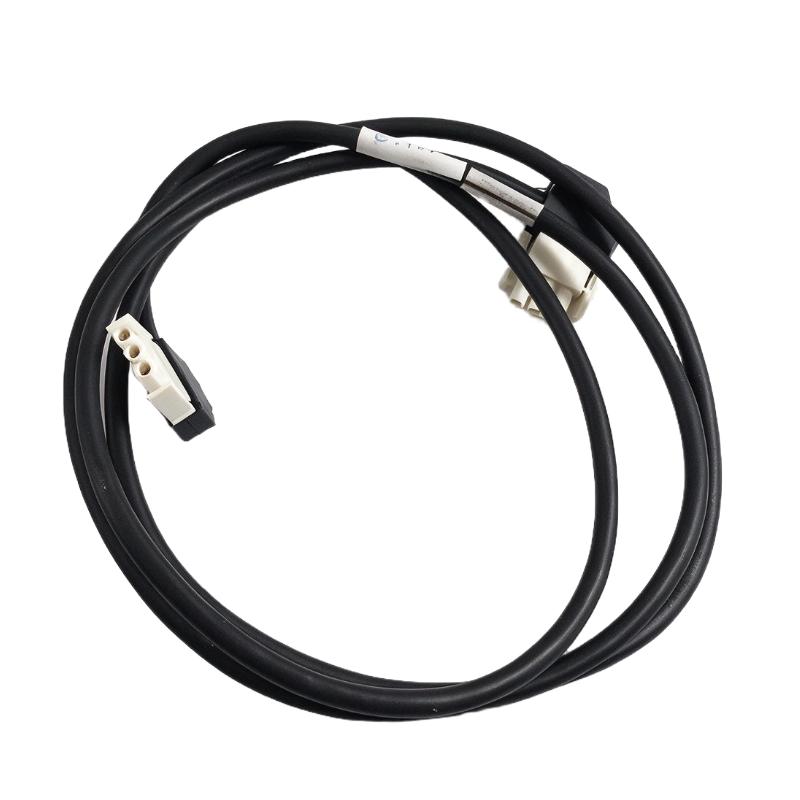

The Foxboro RH926KP power supply output cable is a 1.8-meter cable designed to connect compatible power supplies to modular baseplates in Foxboro industrial control systems. Correct cable selection, connector engagement, and power distribution verification are essential for reliable system commissioning. The RH926KP is identified in Foxboro documentation as a power supply-to-baseplate cable for compatible modular baseplates.
RH926KP Cable Function and System Configuration
Within a compatible Foxboro control cabinet, the RH926KP provides the physical electrical connection between a power supply output and a designated baseplate connection. Its 1.8-meter length allows routing between installed components while maintaining an organized cabinet layout.
Before installation, confirm the baseplate family and power supply model. Foxboro documentation distinguishes newer modular-baseplate cables from older cables used with P0914XA/XB baseplates. Although some connector interfaces may be compatible across cable generations, mechanical fit alone does not establish system suitability.
Preparation Before RH926KP Installation
Check the following conditions before beginning work:
Confirm that RH926KP is the specified cable for the target baseplate and power supply.
Compare the replacement cable with the existing cable, including connector keying and contact condition.
Inspect the cable jacket for cuts, crushing, discoloration, or signs of overheating.
Review the applicable Foxboro system wiring documentation and power-distribution requirements.
Isolate the relevant power source and follow the site's lockout/tagout procedure before handling the connection.
Do not assume the cable's pin assignment or current capacity from its model number alone. Use the applicable manufacturer documentation for the installed system.
Installing the Foxboro RH926KP Power Supply Cable
Route the cable between the designated power supply output and baseplate connection without stretching it or creating a sharp bend. Keep it clear of cabinet doors, sharp metal edges, hot components, and moving equipment.
Align each connector with its intended interface before inserting it. Secure the connection using the manufacturer's specified retention method; never force a connector that does not seat correctly. Maintain enough slack for servicing, but avoid loops that obstruct ventilation or adjacent wiring.
Where multiple baseplates share a power supply, verify that the complete arrangement complies with the power supply's documented connection limits and load requirements.
RH926KP Setup and Commissioning Checks
After installation, inspect both ends of the cable and confirm that the routing matches the approved system configuration. Restore power only after the relevant electrical checks and authorization have been completed.
During commissioning, observe the power supply's status indicators and verify that the connected baseplate operates normally. If the system reports a power fault, do not immediately replace the cable again. Check the supply output, connector seating, baseplate compatibility, and connected load in a controlled diagnostic sequence.
A useful commissioning record includes the cable part number, cable length, power supply model, baseplate model, inspection results, and observed status indicators.
Field Example: Verifying an RH926KP Connection
During a hypothetical maintenance scenario, a baseplate fails to initialize after a cable replacement. The first checks should focus on connector engagement, the selected cable type, and the supply's output status rather than assuming an internal baseplate failure.
If the power supply indicates normal operation but the baseplate remains unavailable, isolate the circuit according to site procedures and inspect the connection path. Compare results with the manufacturer's expected electrical values before considering further component replacement. Record measured values rather than relying solely on indicator lights.
