Gateway Empowering Intelligent Upgrade of Automotive Door Production Lines: ABB Robot and Beckhoff C
Time:2026-05-11 Browse: 0
EtherCAT Protocol Conversion Module Drives Smart Manufacturing in Automotive Door Production Lines
In modern automotive intelligent manufacturing, the door component production line is a critical link to ensure vehicle quality and assembly precision. It demands stringent requirements for multi-device coordination, high-speed communication, and stable operation. The WL‑PN‑ECATM PROFINET-to-EtherCAT protocol conversion module is specifically designed for multi-protocol interoperability in industrial environments, providing a reliable communication bridge between ABB robots and Beckhoff PLCs, enabling intelligent upgrades for automotive door production lines.
Key Performance Advantages
1. PROFINET Slave Compatibility for ABB Robots
The WL‑PN‑ECATM module connects to ABB IRB 1260 robots in PROFINET slave mode
Supports 125K / 250K / 500K baud rate auto-adaptation, matching different production line cycles
PROFINET bus-powered design simplifies field wiring and reduces installation complexity
Provides up to 128 bytes of bidirectional data exchange, ensuring sufficient bandwidth for robot command and status transmission
2. High-Speed EtherCAT Slave Integration with Beckhoff PLC
Supports EtherCAT slave communication with two RJ45 Ethernet ports
Compatible with 100BASE-TX full-duplex and MDI/MDIX auto-detection
Seamless integration with Beckhoff CX5130 PLC EtherCAT network
Data exchange frequency reaches hundreds of times per second, with communication latency controlled below 15 ms
Ensures real-time synchronization for precise execution of control commands and status feedback
3. Intelligent Data Forwarding for Flexible Production
Features bidirectional cache forwarding: control data from EtherCAT side is cached and forwarded to PROFINET, while robot status is fed back to PLC
Customizable I/O data length, adapting to different models and production stages
Supports fast line changeover and flexible manufacturing
On-Site Implementation in Automotive Door Production
Robot Tasks

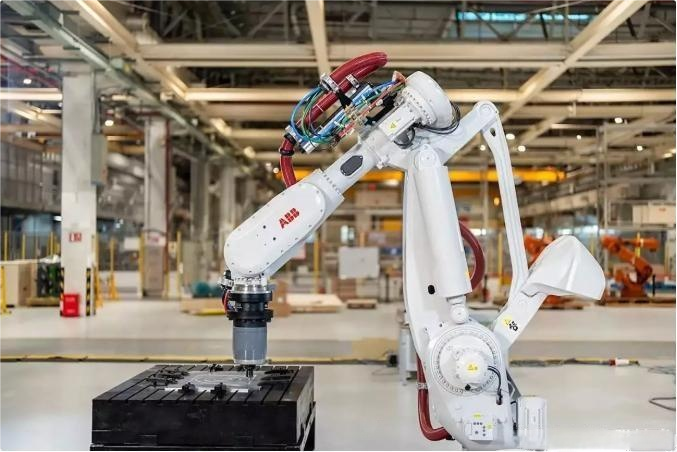

ABB IRB 1260 robots handle:
Workpiece handling and positioning
Assembly tasks
Material transportation
Communication Configuration Process
PLC Side:
Import EtherCAT device description files into TwinCAT
Add modules, assign nodes, configure IP and communication parameters
Robot Side:
Import PROFINET device description files into ABB robot controller
Configure node address, I/O length, and communication mode
Application Results
| KPI | Before | After | Improvement |
|---|---|---|---|
| Production Efficiency | Baseline | +30% | +30% |
| Defect Rate | Baseline | -40% | -40% |
| Robot Command Response | 28.5 ms | 15 ms | -47% |
| Line Changeover Efficiency | Baseline | +300% | +300% |
| Overall Equipment Effectiveness (OEE) | Baseline | +18% | +18% |
| Downtime Rate | Baseline | -62% | -62% |
Technical Highlights of the Module
Dual-port independent cache + core forwarding architecture

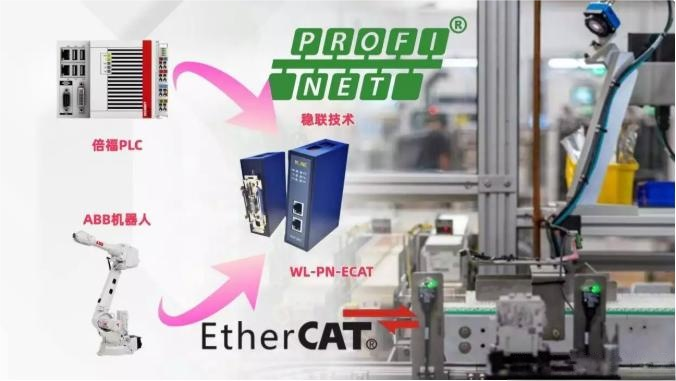

Separate communication links to Beckhoff CX5130 PLC (EtherCAT master) and ABB robot (PROFINET network)
Data written into buffers, core completes mapping, forwarding, and verification
Achieves transparent, bidirectional protocol conversion
Fast Configuration Steps
PROFINET Side (Robot):
Import device description file
Configure node address and I/O mapping
Align module station number and data length
Complete bus wiring and power check
Customer Value
Shorter commissioning cycle: standardized configuration allows same-day communication setup
Reduced maintenance cost: stable communication minimizes downtime, saving hundreds of thousands annually
Enhanced production management: precise data transmission supports visualization, process control, and traceability
Improved market competitiveness: flexible, intelligent lines enable multi-model production
Conclusion
The WL‑PN‑ECATM module leverages protocol optimization, hardware acceleration, and intelligent caching to provide:
High-speed, low-latency connectivity between ABB robots and Beckhoff PLCs
Flexible and high-precision assembly in automotive door production
Significant improvements in production efficiency, OEE, and reduced downtime
It has been successfully applied in multiple leading automotive component manufacturers, serving as a key enabler for intelligent and digital upgrades in automotive door production lines.
