ABB Switzerland Files Patent for Gas Chromatography Device with Thermal Conductivity Detector to Imp

Lead: ABB Switzerland has filed a patent for a novel gas chromatography (GC) device based on a thermal conductivity detector (TCD), designed to enhance analytical accuracy. The patent, titled “Gas Chromatography Device Based on Thermal Conductivity Detector (TCD)”, was filed in May 2024 and published as CN121336109A by the China National Intellectual Property Administration (CNIPA).

Patent Overview

The patented TCD-based GC device introduces innovations to improve measurement precision through enhanced thermal detection:

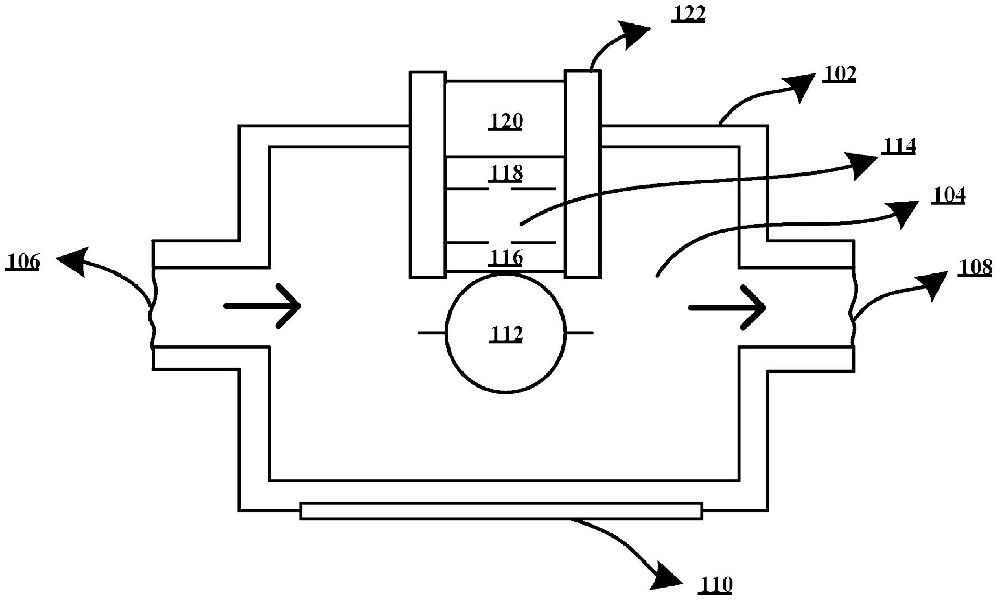

• TCD furnace design: The device includes a TCD furnace composed of multiple walls, equipped with an inlet and outlet valve.

• TCD element integration: The TCD element is positioned inside the furnace and thermally coupled to a thermoelectric generator (TEG).

• Heating sources: Multiple heating elements are installed on the furnace walls to precisely control temperature.

• Thermal gradient detection: The detector circuit measures the thermal gradient of the mixed gas (carrier gas and analyte) inside the furnace and generates a corresponding electrical signal.

Significance

• Enhanced analytical accuracy: By leveraging precise thermal control and gradient detection, the system improves GC measurement reliability.

• Efficient energy conversion: The integration of a thermoelectric generator (TEG) enables effective heat management and signal generation.

• Versatile application: The technology can be applied in laboratories and industrial settings where precise gas analysis is critical.

Industry Implications

This patent demonstrates ABB’s commitment to advancing analytical instrumentation. The TCD-based GC device offers a path to more precise, reliable gas chromatography, benefiting sectors such as chemical processing, environmental monitoring, and laboratory research. Enhanced detection precision can accelerate quality control, process optimization, and scientific studies relying on accurate gas composition analysis.
