Allen-Bradley 100-DNY41R DeviceNet Starter Auxiliary Installation

Overview

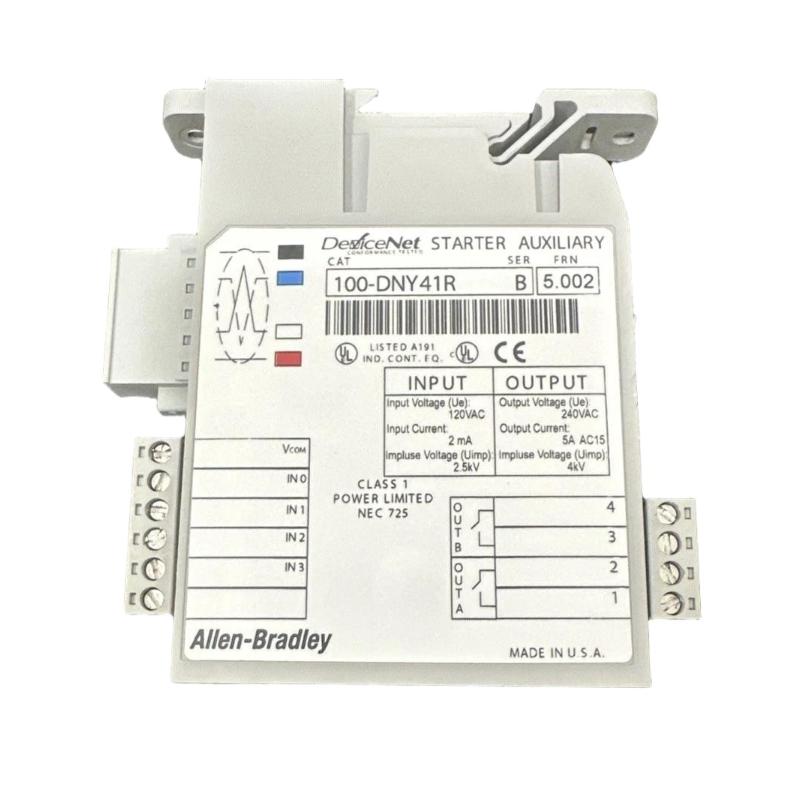

The 100-DNY41R DeviceNet starter auxiliary module acts as a decentralized interface between field devices and the DeviceNet PLC controller. It typically manages 4 digital AC inputs (120V AC) and 2 relay outputs (250V rated), making it suitable for motor starter applications and distributed I/O panels.

In one commissioning case at a wastewater treatment plant, we observed that incorrect node addressing caused the entire DeviceNet segment to remain in “idle state,” even though power and wiring were correct. This highlights that setup is not just physical installation but also network configuration integrity.

Allen-Bradley 100-DNY41R PLC System Preparation (Pre-Installation Checks)

Before mounting the module, confirm the following field conditions:

• DeviceNet trunk cable integrity (no impedance mismatch or damaged shielding)

• Proper 24V DC supply stability for communication layer

• PLC controller compatibility with DeviceNet scanner (e.g., ControlLogix or SLC-based gateway)

• Node address plan prepared in advance (critical for network stability)

In practice, we often see commissioning delays because address mapping is not documented before installation. DeviceNet is not forgiving—duplicate node IDs will immediately block communication.

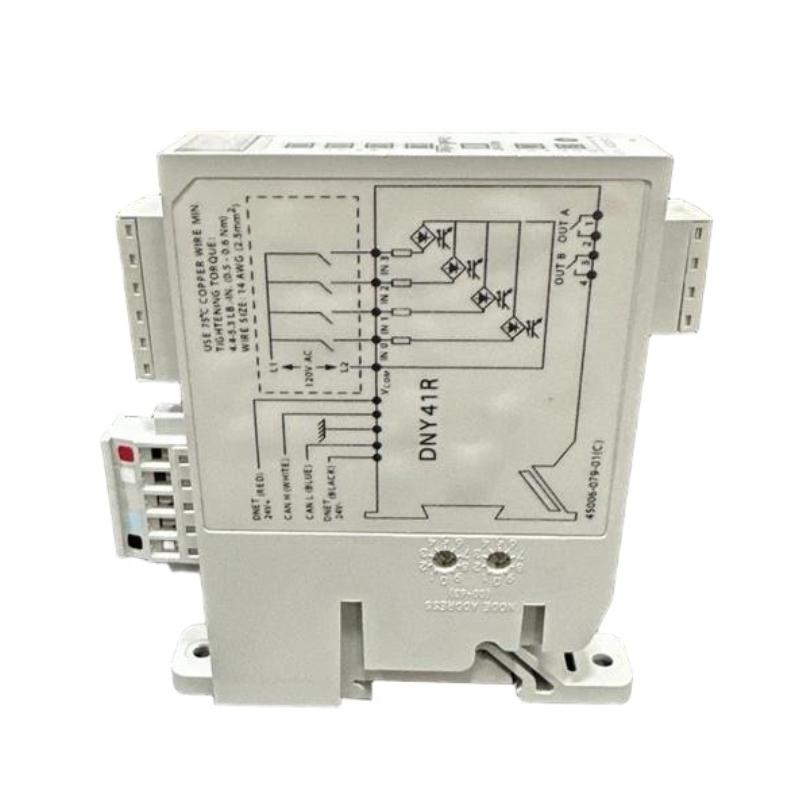

Allen-Bradley 100-DNY41R Wiring & System Configuration

The installation wiring should follow strict DeviceNet topology rules:

• Maintain trunk-and-drop topology (avoid star wiring)

• Ensure correct CAN_H / CAN_L polarity

• Use approved DeviceNet thick or thin cable only

• Install termination resistors at both ends of the network

During a real startup scenario, we found intermittent I/O loss caused by a loose shield termination. After re-terminating the shield drain wire at both ends, communication stability improved immediately and PLC scan errors disappeared.

Allen-Bradley 100-DNY41R Commissioning Validation

Once wired, perform structured commissioning:

• Verify module LED status (power, network, I/O)

• Scan network using RSNetWorx for DeviceNet

• Confirm all nodes appear without duplicate addresses

• Validate input/output response through PLC forcing test

After full commissioning in a packaging line, system response time stabilized at under 20 ms cycle delay, confirming proper DeviceNet synchronization.
