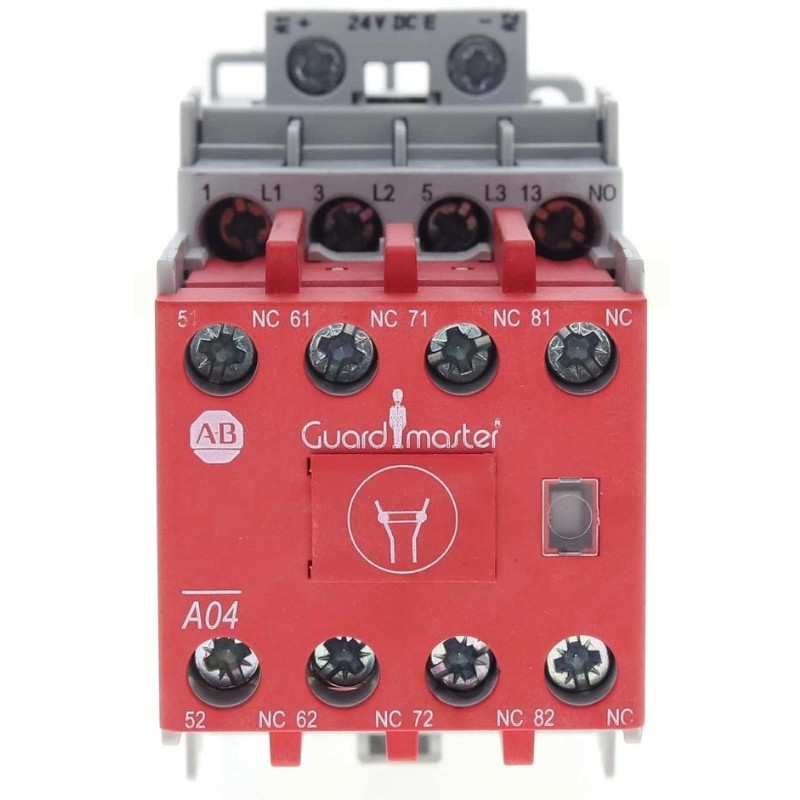

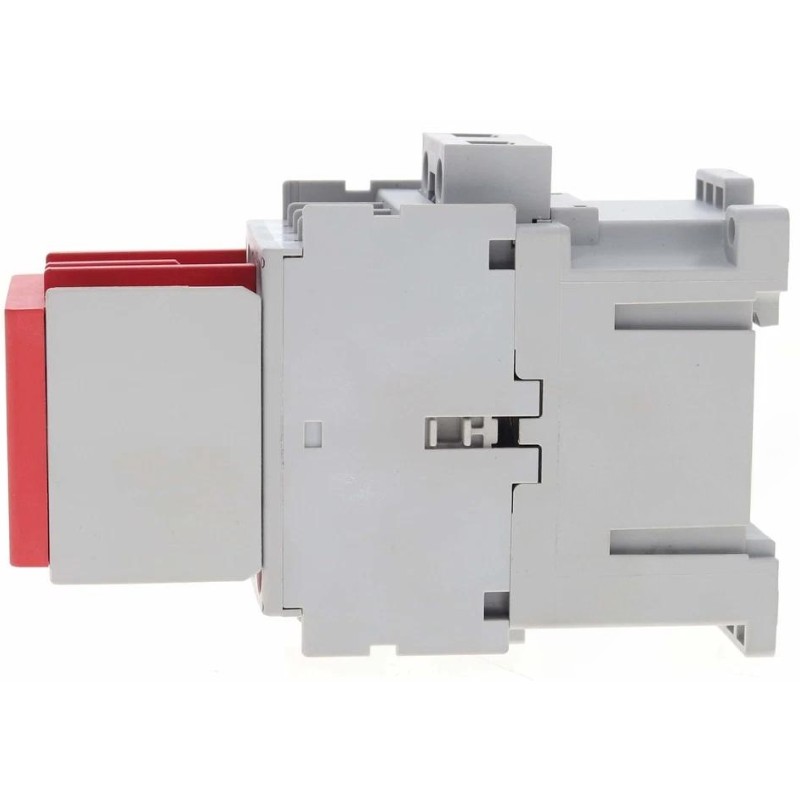

Allen-Bradley 100S-C09EJ14C Safety Contactor Overview

The 100S-C09EJ14C is a compact, DIN-rail mountable safety contactor designed for motor control, safety circuits, and emergency stop applications. Rated for AC-3 load up to 9A and 24–480V AC operational voltage, it features mechanical auxiliary contacts and optional interlock configurations for safe machine shutdown.

In one commissioning case at a metal fabrication plant, we observed that incorrect auxiliary wiring caused the emergency stop circuit to remain open even though the contactor energized, highlighting that setup errors often mimic component failure.

Allen-Bradley 100S-C09EJ14C Pre-Installation Preparation

Before mounting:

• Verify voltage rating compatibility (24–480V AC)

• Confirm contactor control circuit aligns with safety PLC outputs or hardwired safety relays

• Inspect mechanical interlocks and auxiliary contact positions

• Prepare torque-controlled screwdrivers for terminal tightening (recommended 2.5–3.0 Nm)

Field experience shows that under-torqued terminals frequently cause intermittent coil activation, especially in high-vibration environments.

Allen-Bradley 100S-C09EJ14C Wiring & Commissioning

1. Power Circuit: Connect line and load terminals according to AC-3 load rating.

2. Control Circuit: Connect coil inputs to safety PLC outputs or E-stop relay outputs.

3. Auxiliary Contacts: Wire normally open/normally closed contacts for feedback to the safety controller.

During a real startup at a packaging plant, coil voltage verification with a multimeter ensured 24V AC input was stable at 23.9V, preventing inadvertent dropout during first run.

Allen-Bradley 100S-C09EJ14C System Validation

• Check mechanical operation by manual actuation (verify interlock and auxiliary feedback)

• Energize coil and measure voltage across the contactor coil terminals

• Test emergency stop function to ensure immediate load cutoff

• Validate auxiliary contact signaling in the PLC safety network

After commissioning, machine reaction time to E-stop averaged 25 ms, confirming compliance with IEC 60204-1 safety standards.
