ABB ACS355-03E-01A2-4 3ABD0000058242 Overvoltage Fault Troubleshooting Guide
Time:2026-07-07 Browse: 0

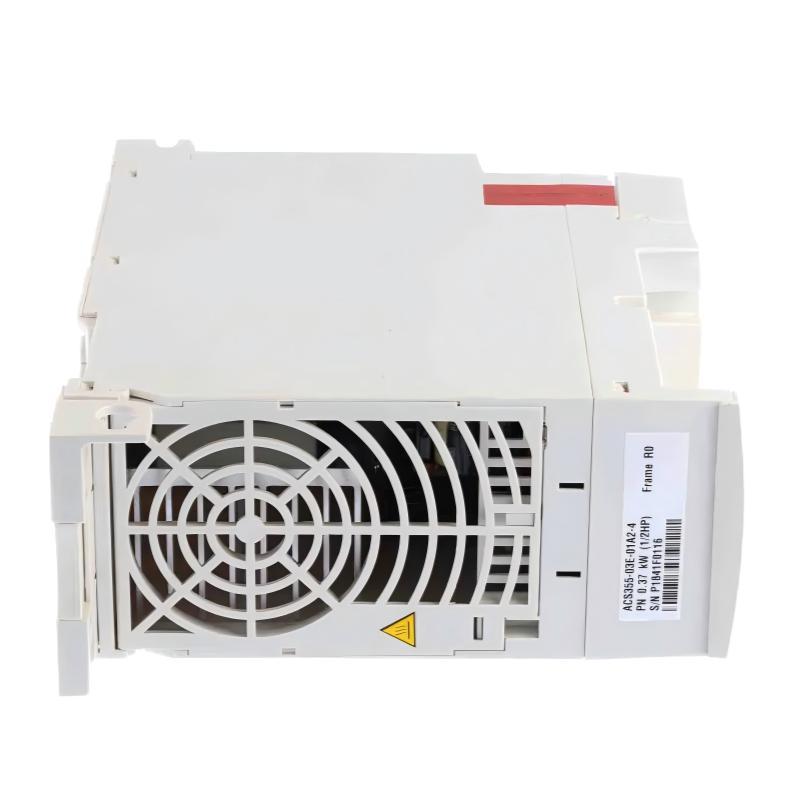

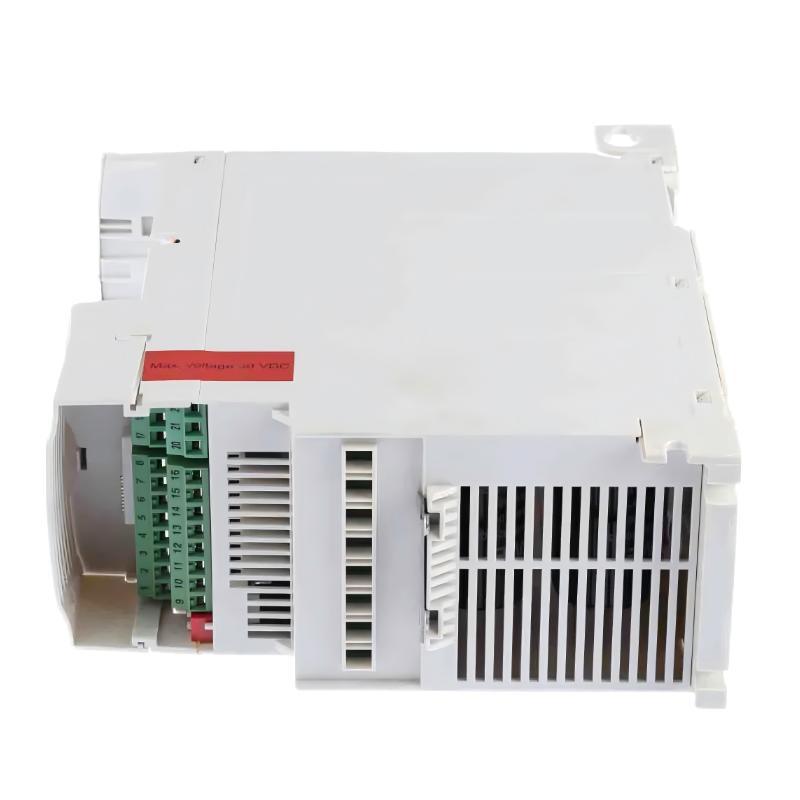

ABB ACS355-03E-01A2-4 Overvoltage Fault Troubleshooting During Motor Deceleration
ABB ACS355-03E-01A2-4 overvoltage faults frequently appear during rapid motor stopping, high-inertia load operation, or incorrect deceleration parameter settings. In many field cases, the variable frequency drive itself is not damaged. The actual cause is energy returning from the motor into the DC bus during braking conditions.
This ABB ACS355-03E-01A2-4 Fault Diagnosis process requires engineers to analyze operating conditions, DC bus behavior, and mechanical load characteristics before deciding whether repair or replacement is necessary.
ABB ACS355-03E-01A2-4 Fault Symptoms Observed in Industrial Operation
A typical ABB ACS355-03E-01A2-4 overvoltage problem does not always appear immediately after startup.
Field symptoms often include:
Drive operates normally during running
Fault occurs when speed command decreases
Motor stops suddenly during emergency deceleration
Alarm appears only when machine load is high
In one production machine, the ABB ACS355-03E-01A2-4 controlled a rotating indexing mechanism. Operators reported that the drive worked correctly for several minutes but tripped whenever the machine performed a fast stop.
Initial assumption was an internal inverter problem. However, the Fault Diagnosis process focused on the stopping condition because the fault timing was directly related to deceleration.
ABB ACS355-03E-01A2-4 Root Cause Analysis Through Signal Observation
The troubleshooting engineer first monitored:
DC bus voltage trend
Motor speed reduction curve
Deceleration time
Machine inertia response
During testing, the DC bus voltage increased from the normal operating range to approximately 780 VDC immediately before the trip.
The measurement indicated regenerative energy from the motor was flowing back into the drive. The ABB ACS355-03E-01A2-4 was protecting itself correctly.
The investigation then moved to parameter settings instead of replacing the drive.
ABB ACS355-03E-01A2-4 Troubleshooting Solution and Parameter Correction
The original deceleration time was configured too aggressively for the mechanical system.
The repair approach included:
Increasing deceleration time
Testing different stopping profiles
Confirming motor response under normal load
Monitoring DC bus stability
After adjustment, the motor stopping time increased from 2 seconds to 8 seconds.
The DC bus voltage remained stable, and the ABB ACS355-03E-01A2-4 completed more than 100 stop/start cycles without another overvoltage event.
ABB ACS355-03E-01A2-4 Fault Diagnosis Logic for Maintenance Engineers
When an ABB ACS355-03E-01A2-4 reports an overvoltage condition, engineers should determine whether the problem follows the motor operating pattern.
A practical diagnostic approach:
If the fault appears during acceleration:
→ Check incoming power quality and supply voltage.
If the fault appears during stopping:
→ Check regenerative energy, deceleration settings, and mechanical inertia.
If the fault appears randomly:
→ Investigate wiring, grounding, and possible drive hardware problems.
This diagnostic logic prevents unnecessary replacement of a functioning PLC Controller drive system.
ABB ACS355-03E-01A2-4 Repair Verification After Fault Recovery
After correcting the overvoltage condition, the final repair verification should reproduce the original failure condition.
During the machine test, engineers performed repeated high-speed indexing operations and monitored:
DC bus stability
Output current
Motor stopping response
Fault history
The ABB ACS355-03E-01A2-4 remained stable after the correction, confirming that the issue was caused by application configuration rather than hardware failure.
ABB ACS355-03E-01A2-4 Troubleshooting Keywords for Industrial Maintenance
Maintenance engineers commonly search for ABB ACS355-03E-01A2-4 Troubleshooting Guide, ABB ACS355-03E-01A2-4 overvoltage fault diagnosis, ABB ACS355-03E-01A2-4 inverter repair method, ABB ACS355-03E-01A2-4 VFD fault analysis, and ABB ACS355-03E-01A2-4 motor control troubleshooting.
Effective repair depends on understanding the relationship between the ABB Module, motor behavior, and machine mechanics instead of treating every fault as a hardware failure.
