Allen Bradley 1606-XL120D Power Supply Troubleshooting Guide
Time:2026-07-12 Browse: 0

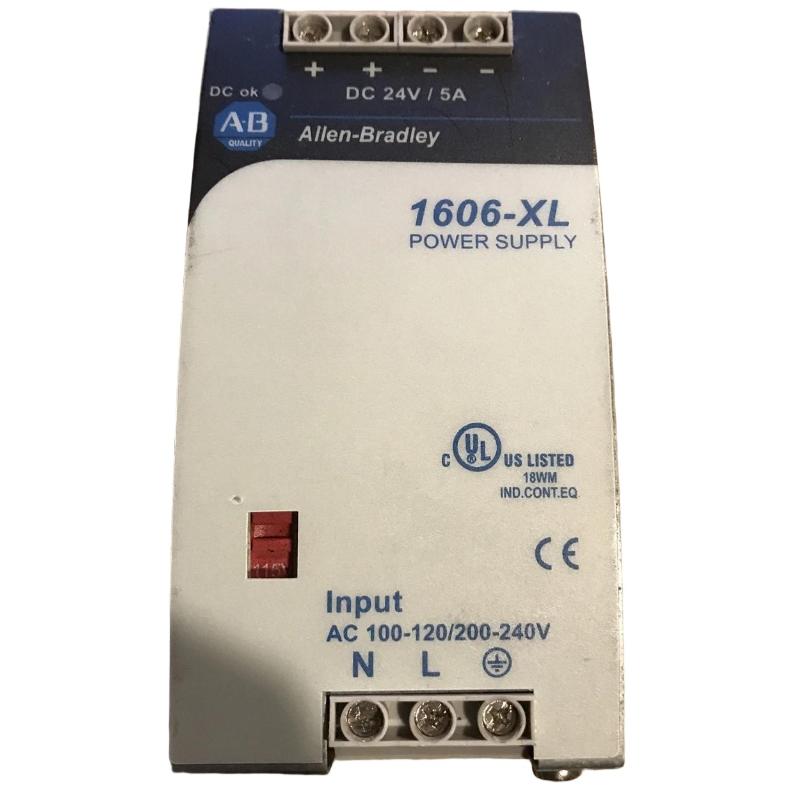

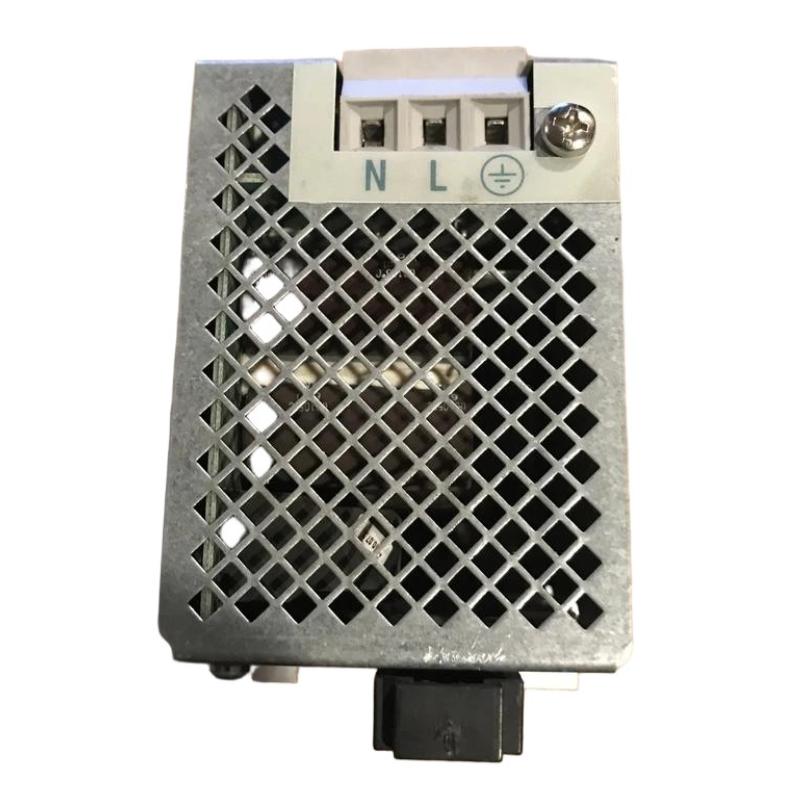

Allen Bradley 1606-XL120D Power Supply Troubleshooting usually begins when a PLC Controller experiences unexpected restart, unstable sensor signals, or intermittent module communication. In many industrial repair cases, the actual Fault Diagnosis result shows that external wiring problems, overload conditions, or field equipment faults are responsible.
A correct Troubleshooting approach requires measurement and analysis before replacing the power supply module.
Allen Bradley 1606-XL120D Power Supply Fault Symptoms Found During Field Diagnosis
Common Allen Bradley 1606-XL120D fault symptoms include:
PLC Controller restarting randomly
I/O modules losing communication
Sensors turning off temporarily
Relay outputs dropping
Machine stopping during operation
In one assembly line, operators reported that the PLC system restarted several times every day.
The initial inspection showed:
Power supply indicator normal
PLC restart alarm active
24V DC output measured at 24.1V DC
Because the power supply output was stable, engineers continued investigation instead of replacing the module.
The next step was checking voltage behavior at different points in the control system.
Allen Bradley 1606-XL120D Fault Diagnosis Process for DC Voltage Drop Problems
A common mistake during Troubleshooting is assuming that every PLC fault comes from the power supply.
Experienced engineers compare multiple measurement points.
During one repair case, the measured values were:
Power supply output:
24.1V DC
Distribution terminal:
23.9V DC
Field sensor terminal:
20.6V DC
The large voltage difference indicated a wiring problem.
After inspection, engineers found a damaged terminal block with unstable contact resistance.
The repair result:
Sensor voltage increased from 20.6V DC to 23.8V DC
False input signals disappeared
PLC Controller operated normally
The Fault Diagnosis confirmed that the 1606-XL120D Power Supply was not damaged.
Allen Bradley 1606-XL120D Overload Troubleshooting and Load Analysis
Overload conditions are a frequent cause of 24V DC instability.
Typical overload sources include:
Added field devices
Short-circuit sensor cables
Failed solenoid coils
Excessive relay consumption
In one maintenance case, engineers compared the original design load with actual operating conditions.
Measured values:
Original design:
3.0 A
Actual running current:
5.4 A
Startup peak:
6.2 A
The additional current came from newly installed pneumatic valves.
The troubleshooting process included disconnecting each load branch and monitoring current changes.
After removing the abnormal load:
Power supply output remained stable
PLC Controller stopped restarting
Machine cycle became reliable
The repair result proved that the problem was caused by system expansion rather than power supply failure.
Allen Bradley 1606-XL120D Communication Fault Diagnosis Caused by Power Instability
Communication faults are sometimes related to unstable control voltage.
A machine experienced repeated communication interruptions between the PLC Controller and remote modules.
Engineers monitored the 24V DC condition during motor startup.
Before correction:
Normal voltage: 24.0V DC
Startup voltage drop: 21.8V DC
After separating high-current equipment from the PLC power branch:
Normal voltage: 24.1V DC
Startup voltage drop: 23.6V DC
The communication problem disappeared.
The Fault Diagnosis conclusion was that the communication hardware was functioning normally, while the unstable DC supply condition caused the system interruption.
Allen Bradley 1606-XL120D Power Supply Repair Evaluation Before Replacement
Before replacing an Allen Bradley 1606-XL120D Power Supply, engineers should confirm the actual failure source.
The evaluation should include:
Input voltage inspection
Output stability testing
Load response measurement
Thermal condition checking
External circuit inspection
In field maintenance, replacing a power supply without identifying the root cause often results in repeated failures.
A proper Repair process should determine whether the problem is caused by:
Internal module damage
External short circuit
Incorrect load configuration
Wiring problems
Environmental conditions
Allen Bradley 1606-XL120D Fault Diagnosis Experience in Industrial Maintenance
Effective Troubleshooting depends on engineering judgment and measured data.
A practical Fault Diagnosis method is:
Confirm the failure symptom
Measure electrical parameters
Compare normal and abnormal conditions
Locate the fault source
Verify recovery after correction
In industrial automation systems, the Allen Bradley 1606-XL120D Power Supply is usually a reliable component. Most field problems are related to system changes, wiring conditions, and incorrect load management.
Accurate troubleshooting can reduce unnecessary replacement costs and minimize machine downtime.
