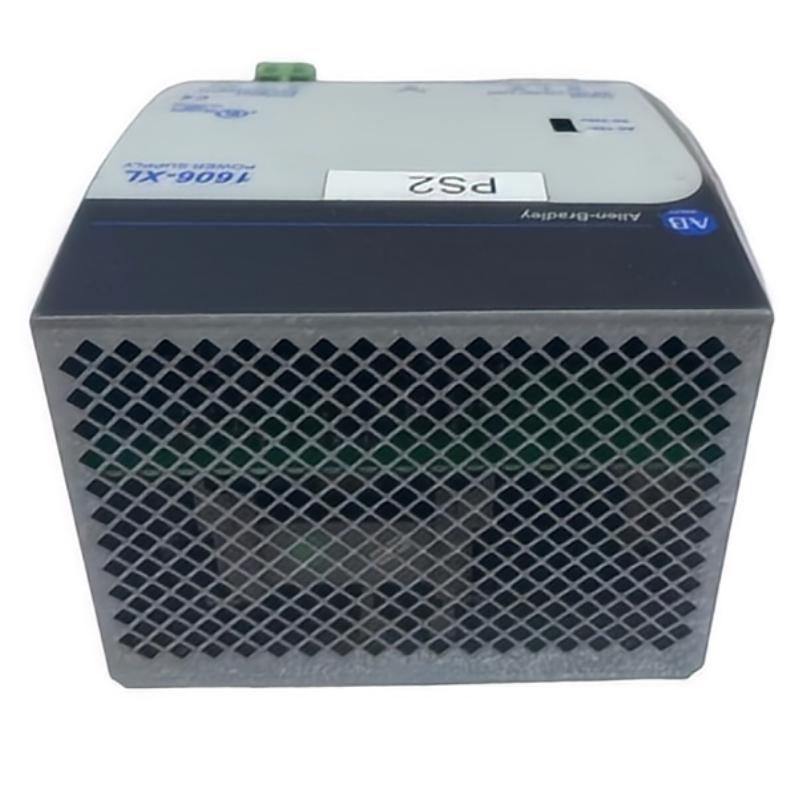

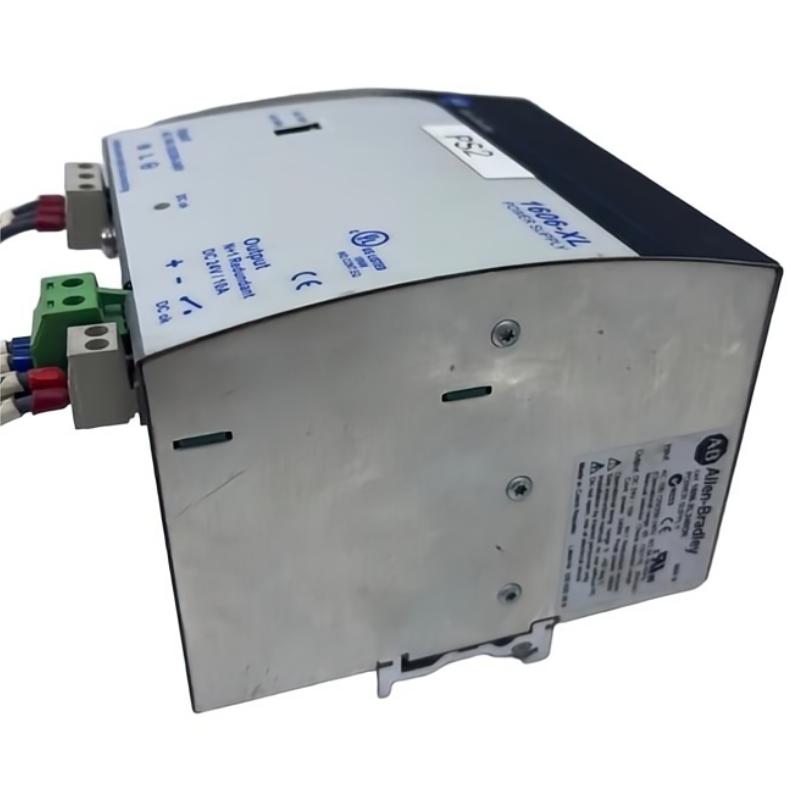

Allen Bradley 1606-XL240DR Redundant Power Supply Fault Symptoms
The Allen Bradley 1606-XL240DR Troubleshooting Guide starts with identifying the actual failure pattern. In industrial environments, a power supply problem may appear as a PLC Controller fault, communication failure, or unexpected machine stop.
Common 1606-XL240DR fault symptoms include:
PLC Controller suddenly loses power
Remote I/O modules restart repeatedly
DC OK indication changes unexpectedly
24VDC output fluctuates during operation
System operates normally at idle but fails under load
A correct Fault Diagnosis process requires engineers to analyze when the fault happens, not only what alarm appears.
Allen Bradley 1606-XL240DR Voltage Drop Fault Diagnosis Process
A common failure pattern with redundant power systems is unstable voltage during peak load conditions.
In one production line case, operators reported random PLC shutdowns approximately three times per shift.
Initial observation:
Power supply indicator appeared normal
PLC diagnostic log showed unexpected restart
No internal PLC hardware fault was detected
Engineers measured the 24VDC supply during machine operation.
The results:
Normal running voltage: 24.1VDC
During valve activation: 19.8VDC
Recovery time: approximately 100ms
The voltage drop suggested a downstream power issue rather than immediate internal failure of the 1606-XL240DR.
Allen Bradley 1606-XL240DR Root Cause Analysis of Output Instability
The troubleshooting process continued with load isolation.
Engineers disconnected field devices one by one and monitored the DC voltage response.
The investigation found:
PLC Controller load was normal
Communication modules were operating correctly
One group of solenoid valves created excessive startup current
The fault was caused by:
Shared power wiring between control devices and inductive loads
Insufficient separation between PLC power and field actuator power
After correcting the System Configuration:
PLC voltage remained above 23.7VDC
Restart events stopped
Production operation became stable
This type of Fault Diagnosis is common in industrial control systems where power quality affects the entire automation network.
Allen Bradley 1606-XL240DR Overload and Thermal Fault Troubleshooting
Another field failure pattern involves overload operation.
When diagnosing a possible 1606-XL240DR overload condition, engineers check:
Output current level
Cabinet temperature
Load startup characteristics
Continuous operating conditions
In one repair case, the power supply failed only after several hours of operation.
The measurement results showed:
Initial current: 7.5A
Continuous current after production expansion: 10.2A
Cabinet temperature: 58°C
The actual problem was not a defective power supply. The load had increased after additional I/O modules were added.
The corrective action included:
Reducing power load distribution
Improving cabinet ventilation
Reviewing PLC Controller power requirements
Allen Bradley 1606-XL240DR Troubleshooting Logic for Repair Decisions
A practical Allen Bradley 1606-XL240DR Fault Diagnosis approach follows electrical verification:
Check input conditions:
AC voltage stability
Input wiring condition
Protective device status
Check output performance:
24VDC measurement
Load current
Voltage fluctuation
Check system behavior:
PLC restart history
Communication interruption timing
Field device activation sequence
Allen Bradley 1606-XL240DR Repair Verification After Fault Correction
After repairing a 1606-XL240DR power system, engineers should verify that the original fault condition has been removed.
A final validation normally includes:
Continuous voltage monitoring
PLC Controller operation test
Communication stability check
Load activation test
In a maintenance case, the original system showed repeated PLC resets every four hours.
After replacing damaged terminals and correcting power distribution:
Before repair:
Voltage fluctuation: 24VDC down to 20.5VDC
PLC restart frequency: Multiple times per day
After repair:
Voltage maintained above 23.8VDC
No PLC restart during 48-hour operation test
This confirms that effective Troubleshooting and Repair requires both component testing and understanding of the complete automation system.
Allen Bradley 1606-XL240DR Long-Term Maintenance Recommendations
The 1606-XL240DR Redundant Power Supply should be included in regular industrial maintenance programs.
Recommended checks:
Inspect DC terminal connections
Measure output voltage stability
Review PLC diagnostic history
Check cabinet temperature
Confirm actual load current
Many power-related failures are caused by changes in the automation system after installation, such as added sensors, communication modules, or field devices.
A professional Allen Bradley 1606-XL240DR Troubleshooting and Repair process combines electrical measurement, fault analysis, and practical field experience to restore reliable 24VDC control power.
