Allen Bradley 1606-XL240E-3C Power Supply Output Voltage Fault Troubleshooting Guide
Time:2026-07-17 Browse: 1
Allen Bradley 1606-XL240E-3C Power Supply Fault Symptoms
Allen Bradley 1606-XL240E-3C Power Supply output voltage problems are usually related to overload conditions, poor wiring connections, or incorrect System Configuration rather than immediate component failure.
Typical Fault Diagnosis symptoms include:
PLC Controller restarting unexpectedly
HMI losing power temporarily
Sensor signals becoming unstable
Communication modules disconnecting
DC voltage dropping during machine operation
When these symptoms appear, engineers should analyze the complete power system instead of replacing the power supply immediately.
Allen Bradley 1606-XL240E-3C Power Supply Troubleshooting Case Study
In one production line troubleshooting case, an Allen Bradley 1606-XL240E-3C Power Supply was suspected after repeated PLC Controller communication alarms occurred.
The operator reported:
Random controller reboot events
Ethernet communication interruption
Sensor feedback errors during actuator movement
The first diagnostic assumption was a PLC hardware problem. However, engineers performed voltage monitoring before replacing any components.
The measurement results showed:
Normal operation voltage: 24.1V DC
During actuator startup: 20.3V DC
The voltage drop occurred only when multiple field devices started simultaneously.
Allen Bradley 1606-XL240E-3C Fault Diagnosis Analysis
The troubleshooting process focused on identifying the actual failure source.
Input Voltage Inspection
Engineers checked the AC supply entering the power supply. The voltage remained stable, confirming that the upstream power source was operating correctly.
Output Voltage Monitoring
The 24V DC output was monitored during machine operation. The sudden voltage decrease indicated that the issue was related to load conditions.
Load Current Investigation
Current measurement showed that the connected devices exceeded the original design calculation. Additional sensors and control valves had been added during machine expansion without updating the power System Configuration.
The overload condition caused temporary voltage instability and triggered PLC Controller resets.
Allen Bradley 1606-XL240E-3C Power Supply Repair and Recovery Method
The final repair solution focused on correcting the electrical design rather than replacing the power supply.
The engineering team performed:
Separation of high-current devices
Redistribution of DC loads
Improvement of terminal connections
Review of power capacity requirements
After correction, the output voltage was measured again:
Before repair:
24.1V DC → 20.3V DC during startup
After repair:
24.0V DC stable during startup
The PLC Controller operated continuously without communication alarms.
Allen Bradley 1606-XL240E-3C Common Fault Diagnosis Experience
Field experience shows that many 1606-XL240E-3C problems are not caused by internal power supply damage.
Common failure patterns include:
Voltage Drop Under Load
Usually caused by excessive current demand or poor DC wiring.
Intermittent Controller Reset
Often related to unstable 24V DC supply conditions.
Field Sensor Communication Problems
May result from voltage fluctuation affecting connected devices.
A professional Troubleshooting approach requires measurement-based analysis instead of replacing components based only on symptoms.
Allen Bradley 1606-XL240E-3C Preventive Maintenance Recommendations
Regular inspection helps prevent unexpected automation downtime.
Recommended maintenance activities:
Check DC voltage trends
Inspect terminal connections
Verify cabinet temperature
Review added field devices
Confirm power load calculations
In industrial automation environments, the power supply is the foundation of every PLC Controller system. Correct Fault Diagnosis methods help engineers locate real problems faster.

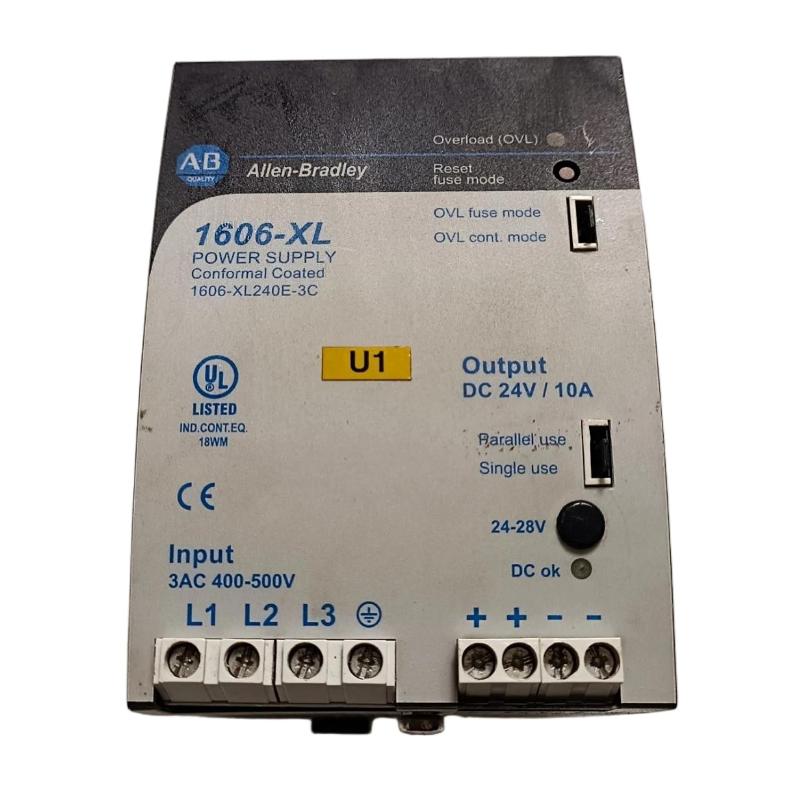

Allen Bradley 1606-XL240E-3C Power Supply Specifications
Brand: Allen-Bradley
Country of Origin: Czech Republic
Product Type: Industrial Power Supply
Series: Power Supply XL
Output Capacity: 240 W
The Allen Bradley 1606-XL240E-3C provides dependable DC power for industrial control systems and requires proper configuration, installation, and maintenance to achieve long-term reliability.
