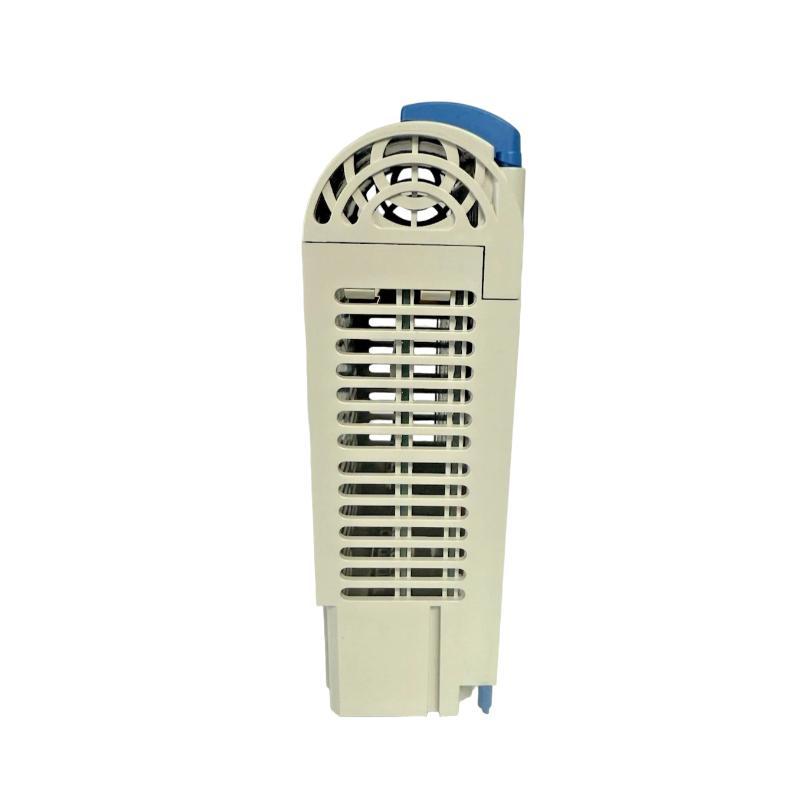

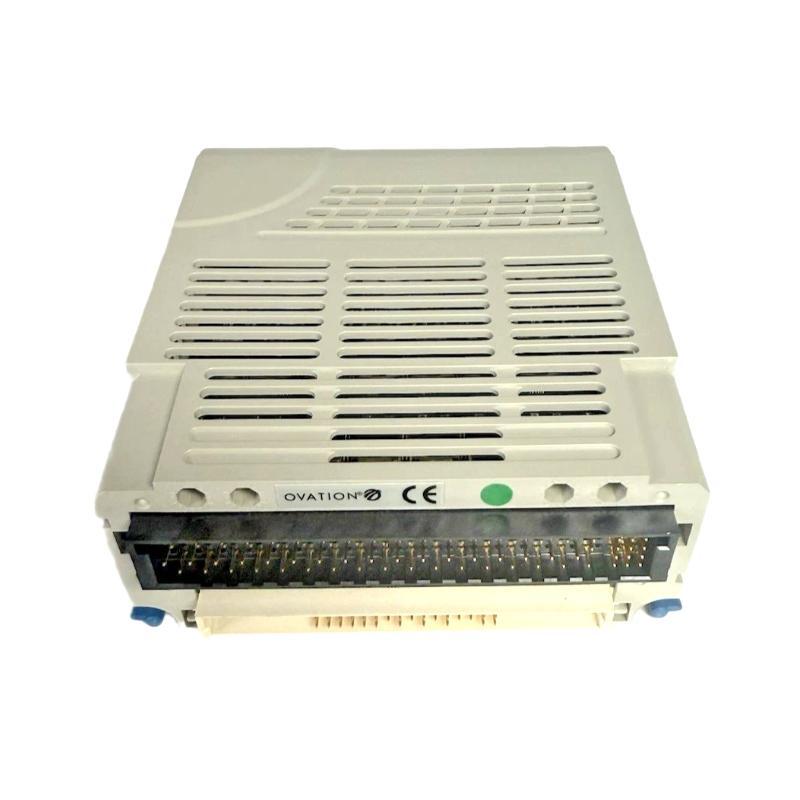

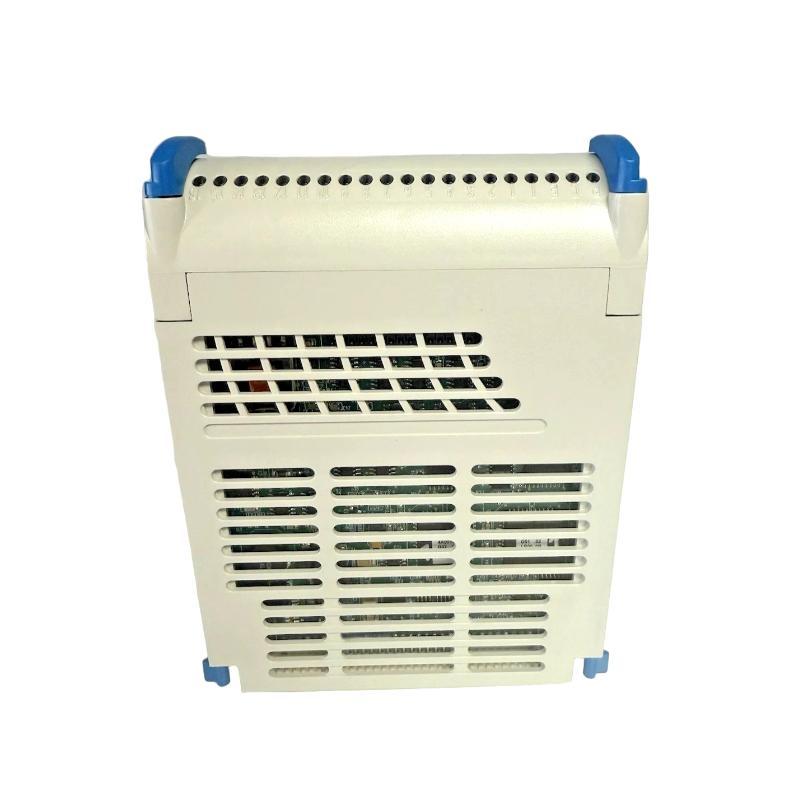

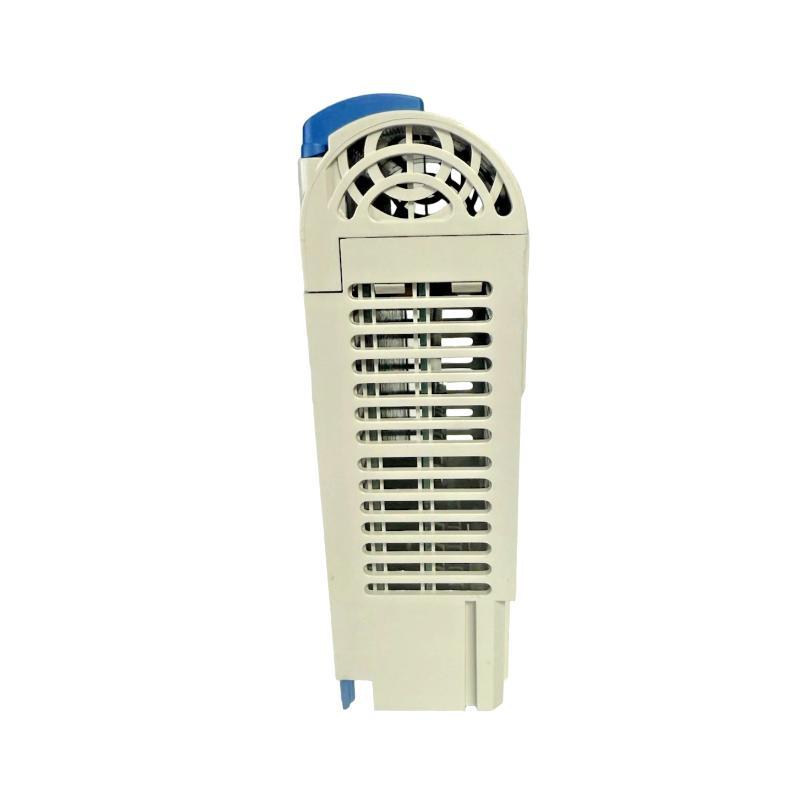

Ovation 1C31123G01 Digital Output Module

Overview

The Ovation 1C31123G01 is a digital output module used in Ovation distributed control system applications. It provides discrete output signals from the control system to field devices, supporting reliable switching and status control in industrial automation environments.

General Information

Part Number: 1C31123G01

Manufacturer: Emerson

Brand: Ovation

Product Type: Digital Output Module

System: Ovation Distributed Control System

Function: Digital signal output

Application: Industrial process control and automation

Typical Applications: Motor control, valve actuation, relay interfaces, alarms, and discrete field devices

Country of Origin: United States

Power Specifications

Input Power: Supplied through the Ovation system carrier

Nominal System Supply: 24 V DC

Output Type: Digital discrete output

Signal Switching: Solid-state output switching

Load Supply: External field power as required by the connected circuit

Protection: Designed for industrial control cabinet operation

Communication & Interface

Module Interface: Ovation system backplane

I/O Type: Digital output

Output Channels: Discrete output channels for field control

Signal Transmission: Electrical on/off control signals

Status Monitoring: Module and channel status diagnostics through the Ovation system

Controller Interface: Communicates with the Ovation controller through the system carrier

The module provides an interface between the Ovation control system and discrete field devices requiring reliable digital output signals.

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: Up to 95%, non-condensing

Installation Environment: Industrial control cabinet

Protection Rating: Suitable for enclosed cabinet installation

Environmental Design: Intended for continuous operation in industrial process-control environments

Dimensions & Weight

Dimensions (H × W × D): 166 × 142 × 40 mm

Weight: 0.5 kg
