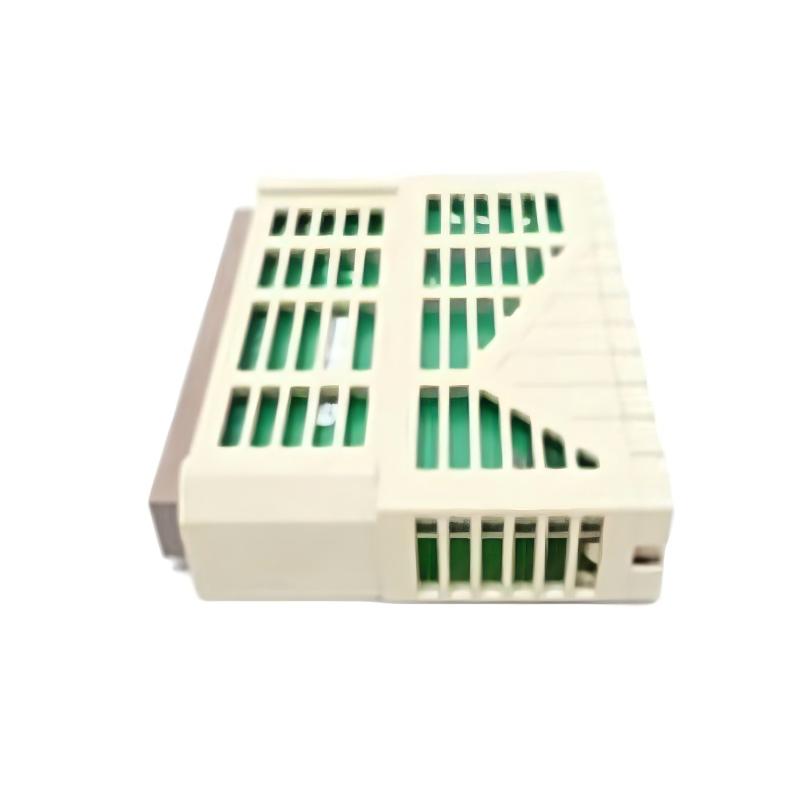

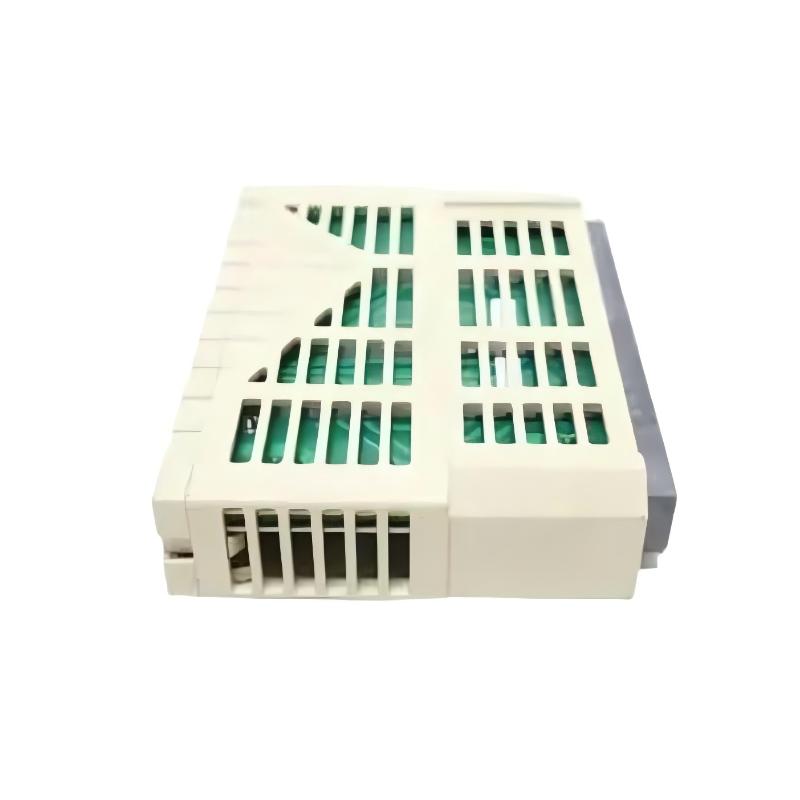

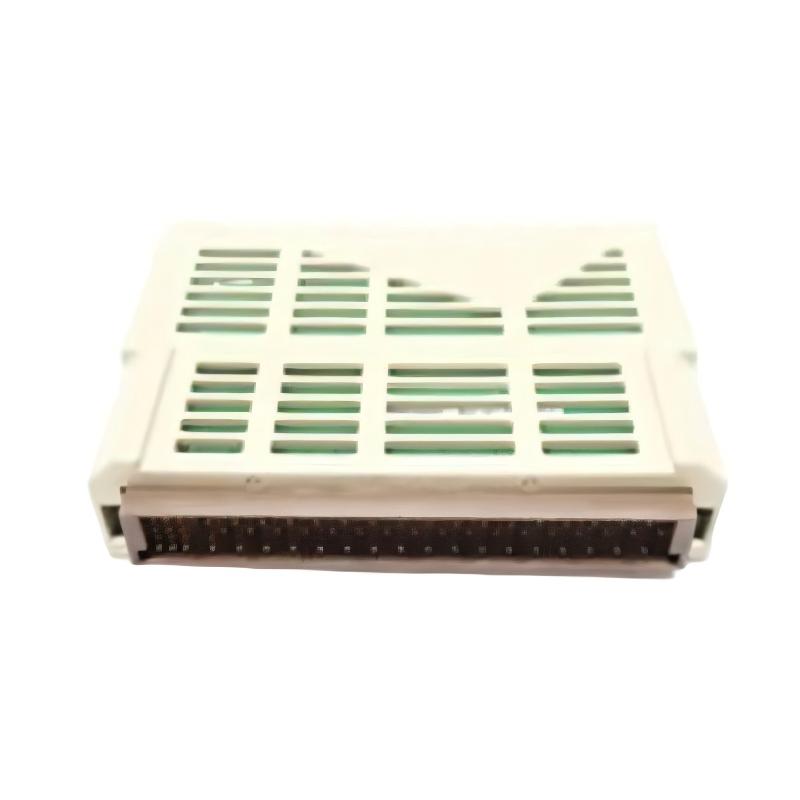

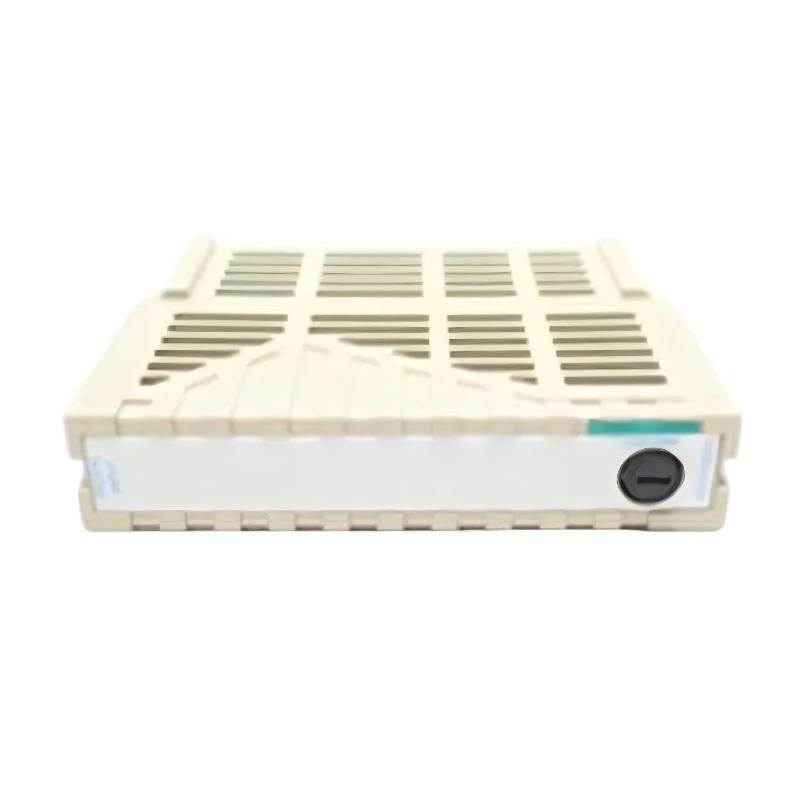

Ovation 1C31127G01 Digital Input Module

Overview

The Ovation 1C31127G01 is a digital input module designed for use in Ovation distributed control system applications. It receives discrete signals from field devices and transfers their status to the control system for monitoring, sequencing, and process control.

General Information

Part Number: 1C31127G01

Manufacturer: Emerson

Brand: Ovation

Product Type: Digital Input Module

System: Ovation Distributed Control System

Function: Digital signal input

Application: Industrial process control and automation

Typical Applications: Switch monitoring, alarm inputs, equipment status, interlocks, and discrete field signals

Country of Origin: United States

Power Specifications

Input Power: Supplied through the Ovation system carrier

Nominal System Supply: 24 V DC

Input Type: Digital discrete input

Signal Detection: On/off field signal monitoring

Field Power: Supplied according to the connected field circuit

Protection: Designed for reliable operation in industrial control cabinets

Power Interface: System backplane connection

Communication & Interface

Module Interface: Ovation system backplane

I/O Type: Digital input

Input Channels: Discrete input channels for field signal monitoring

Signal Transmission: Electrical on/off status signals

Status Monitoring: Channel and module diagnostics through the Ovation system

Controller Interface: Communicates with the Ovation controller through the system carrier

The 1C31127G01 provides a reliable interface between field devices and the Ovation control system, allowing discrete equipment status and process signals to be monitored by the controller.

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: Up to 95%, non-condensing

Installation Environment: Industrial control cabinet

Protection Rating: Suitable for enclosed cabinet installation

Environmental Design: Intended for continuous operation in industrial process-control environments

Dimensions & Weight

Dimensions (H × W × D): 147 × 25 × 160 mm

Weight: 0.39 kg
