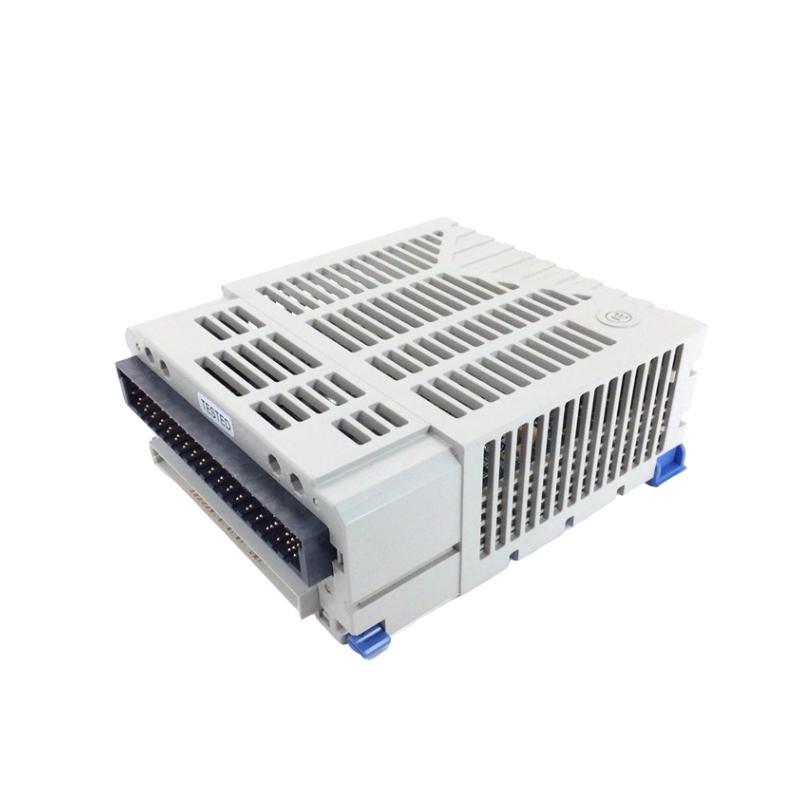

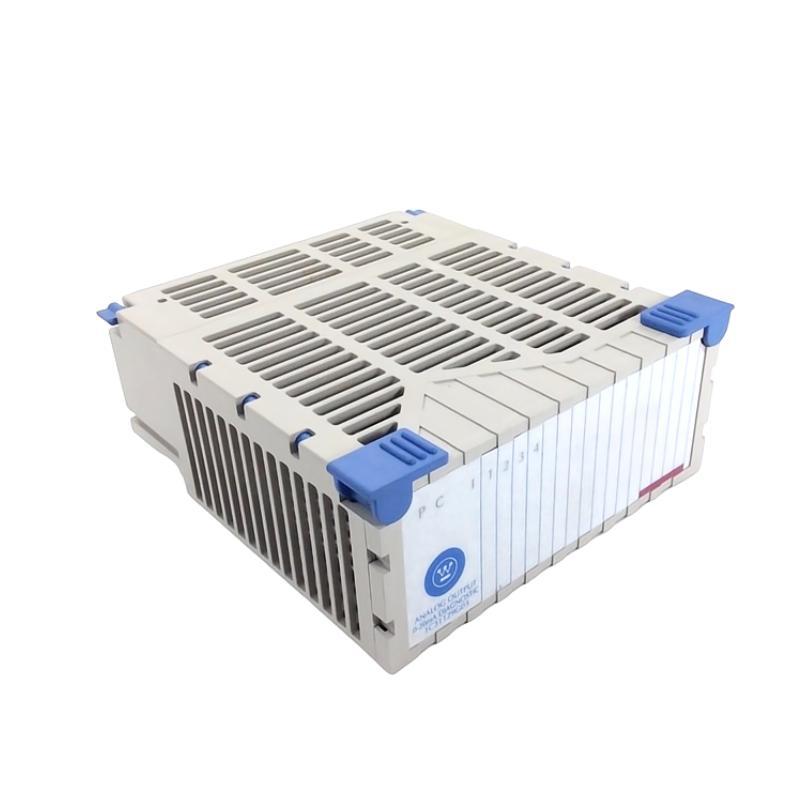

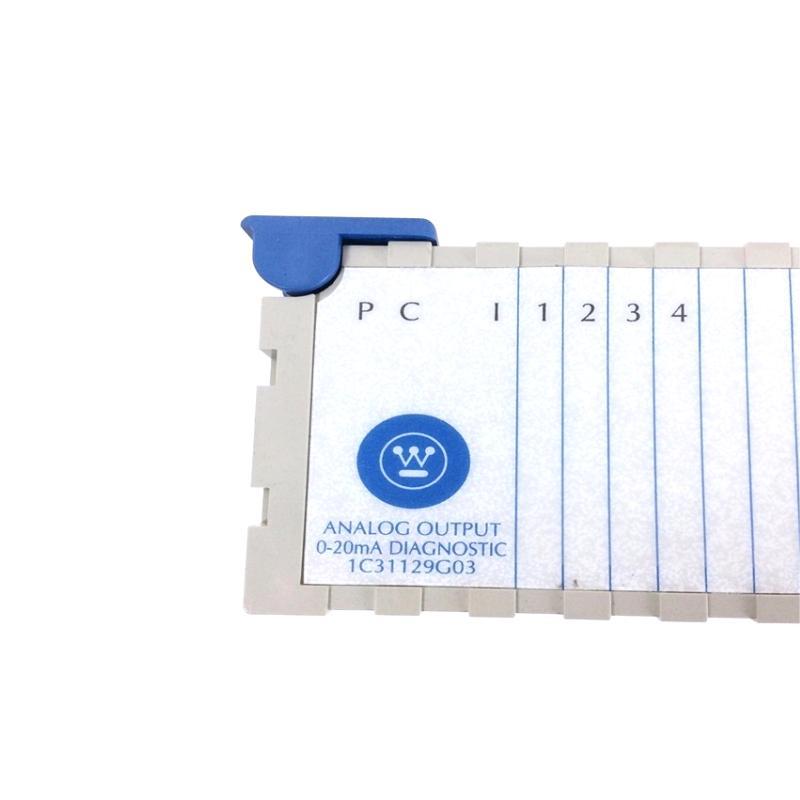

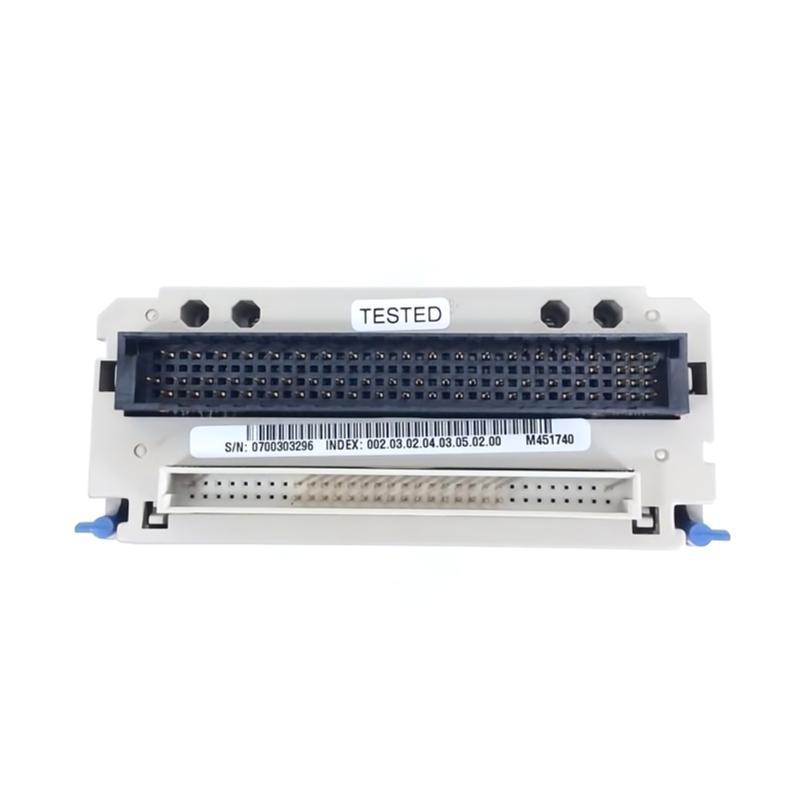

Ovation 1C31129G02 Analog Output Module

Overview

The Ovation 1C31129G02 is an analog output module designed for Ovation distributed control system applications. It converts controller commands into analog signals for field devices, supporting precise process regulation and continuous control in industrial automation systems.

General Information

Part Number: 1C31129G02

Manufacturer: Emerson

Brand: Ovation

Product Type: Analog Output Module

System: Ovation Distributed Control System

Function: Analog signal output

Application: Industrial process control and automation

Typical Applications: Valve positioning, actuator control, speed regulation, and process control loops

Country of Origin: United States

Power Specifications

Input Power: Supplied through the Ovation system carrier

Nominal System Supply: 24 V DC

Output Type: Analog control output

Output Signal: Continuous analog signal

Signal Conversion: Digital control data converted to analog field output

Load Supply: External field power as required by the connected circuit

Protection: Designed for reliable operation in industrial control cabinets

Communication & Interface

Module Interface: Ovation system backplane

I/O Type: Analog output

Output Channels: Analog channels for continuous process control

Signal Transmission: Analog electrical control signals

Controller Interface: Communicates with the Ovation controller through the system carrier

Status Monitoring: Module and channel diagnostics through the Ovation system

The 1C31129G02 provides an interface between the Ovation controller and analog field equipment, allowing control commands to be transmitted to valves, actuators, and other process devices.

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: Up to 95%, non-condensing

Installation Environment: Industrial control cabinet

Protection Rating: Suitable for enclosed cabinet installation

Environmental Design: Intended for continuous operation in industrial process-control environments

Dimensions & Weight

Dimensions (H × W × D): 40 × 260 × 200 mm

Weight: 0.94 kg
