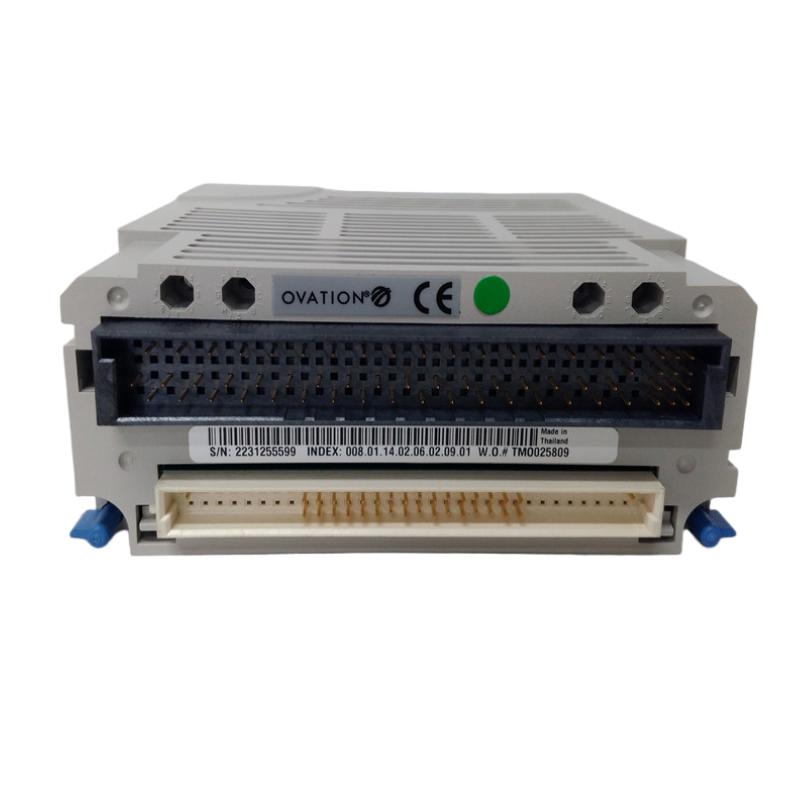

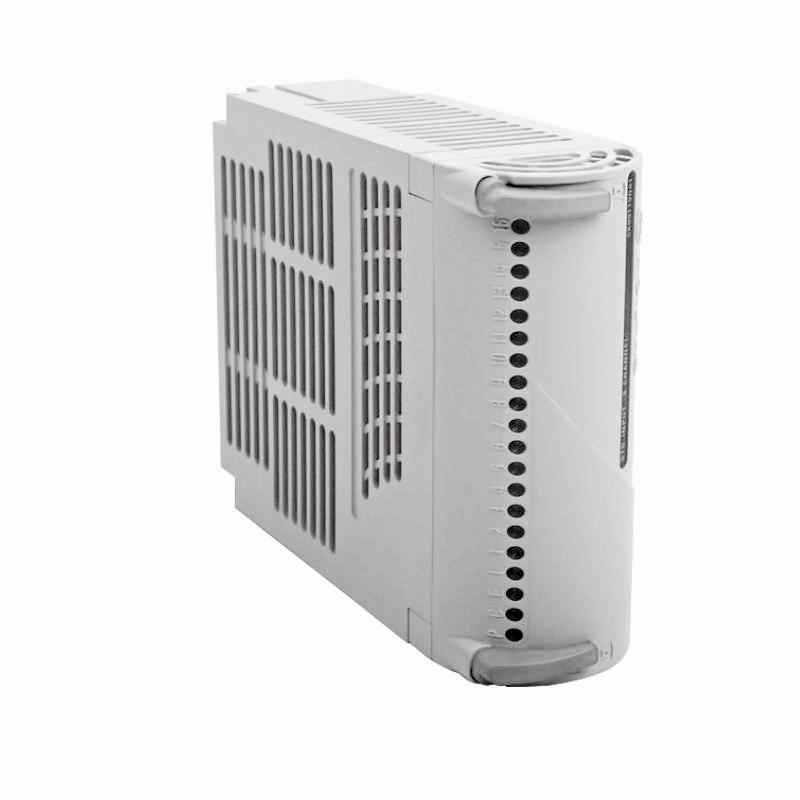

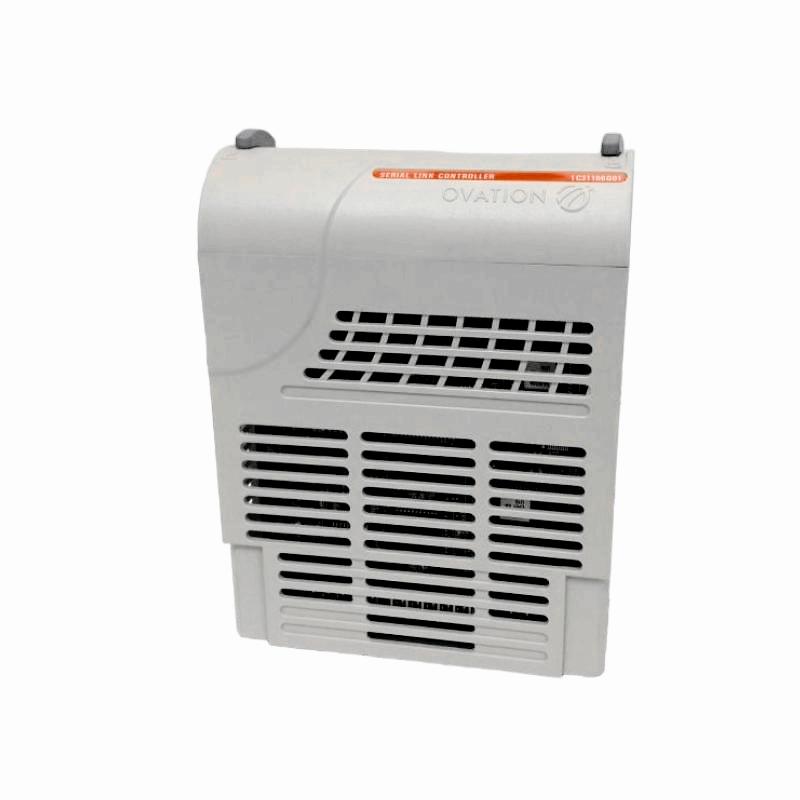

OVATION 1C31166G01 | Serial Link Controller Quality Selection

Overview

The OVATION 1C31166G01 is a serial link controller module used in Emerson Ovation distributed control systems. It provides communication between the DCS and field or third-party serial devices, supporting RS‑232, RS‑485, or RS‑422 interfaces for reliable data exchange and protocol conversion.

General Information

Part Number: 1C31166G01
Manufacturer: Emerson (Ovation)
Series: Ovation Link Controller
Type: Serial Link Controller Module
Mounting: Installed on the Ovation I/O cabinet backplane
Function: Provides serial communication interfaces to connect third-party devices, enabling data transfer and protocol adaptation

Communication & Interface

Supported Protocols: RS‑232, RS‑485, RS‑422
Ports: Two serial ports configurable for different communication setups
Baud Rate: Supports multiple industrial communication speeds
Function: Acts as a communication bridge between Ovation controllers and external devices, enabling data reading, command transmission, and protocol translation
Diagnostics: LEDs for communication status and fault detection

Environmental & Compatibility

Operating Temperature: −40 °C to +70 °C
Installation Environment: Installed inside control cabinets, suitable for standard industrial conditions with dry, non-condensing environment
Bus / Interface: Connects via Ovation backplane bus to other modules

Dimensions & Weight

Dimensions (L × W × H): 229 × 130 × 64 mm
Weight: ~ 1.5 kg

Brand-new original components in full stock, supported by live customer chat.
