Overview

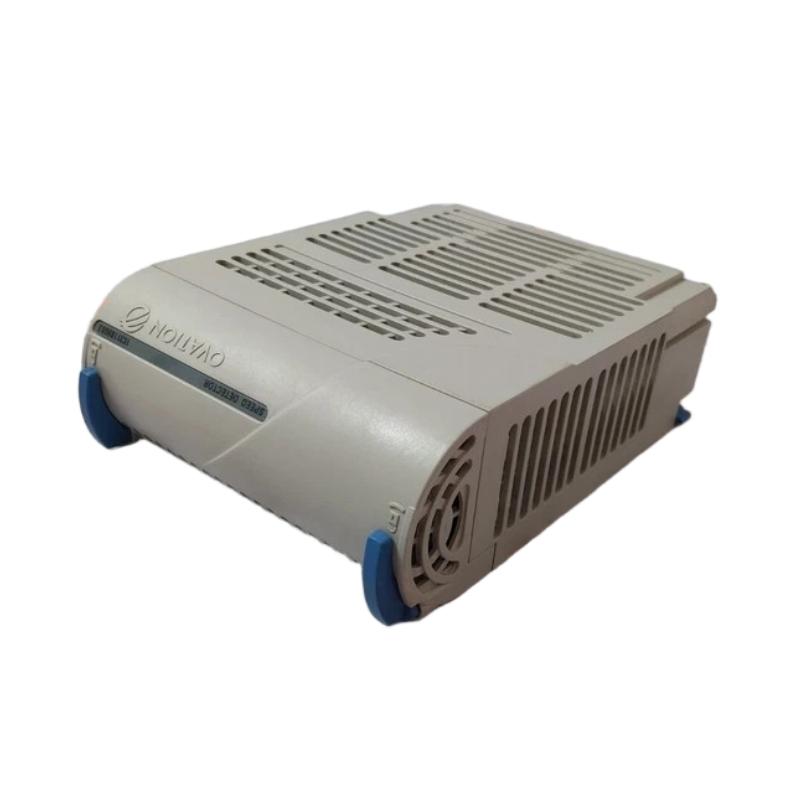

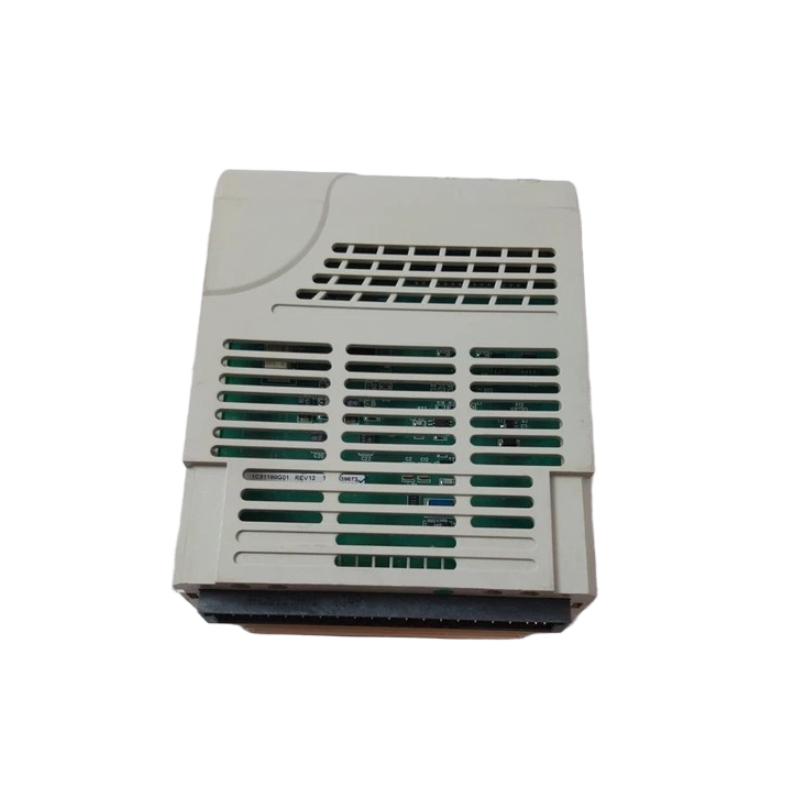

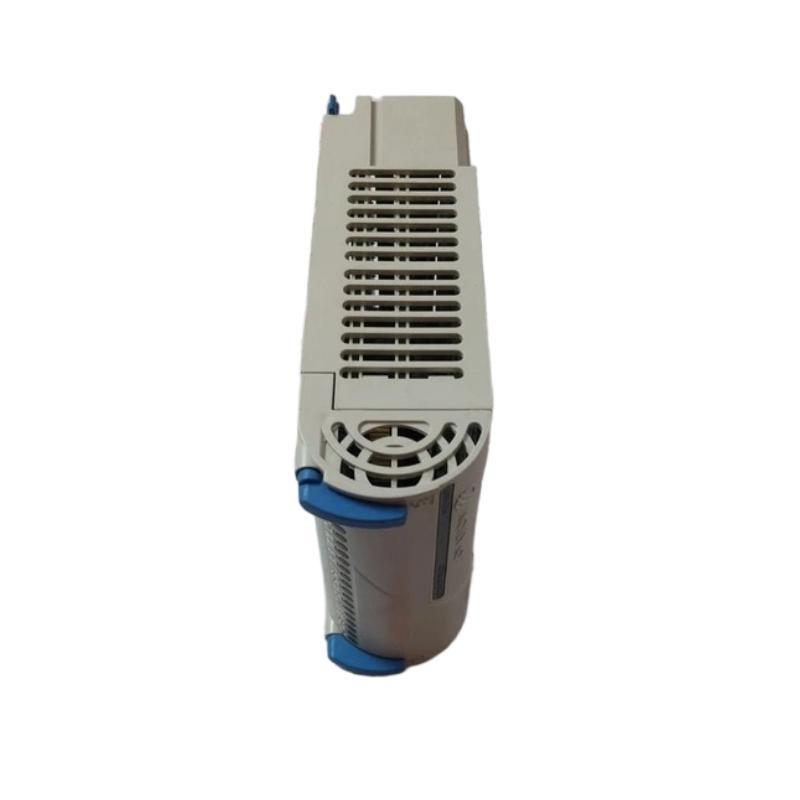

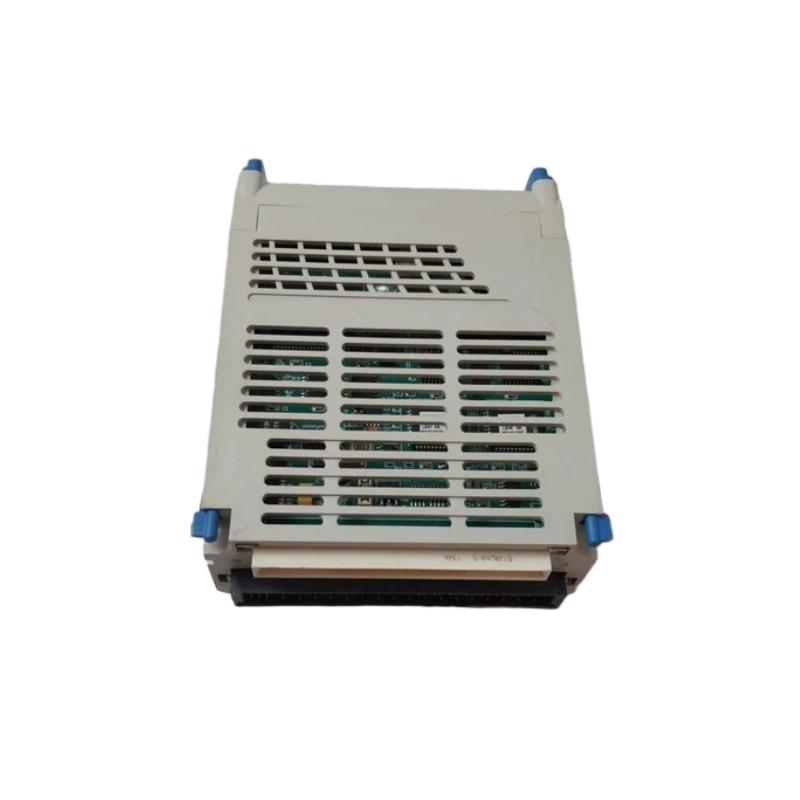

The Ovation 1C31189G04 is a high-speed analog input module for the Emerson Ovation process control system. It converts voltage signals from field sensors into precise digital data for accurate process monitoring and control.
General Information
Part Number: 1C31189G04
Manufacturer: Emerson
Brand / Country of Origin: Emerson / USA
Type: High-Speed Analog Input Module
Series: Ovation I/O System
Mounting: Plug-in module for Ovation I/O base units
Technology: Industrial-grade analog interface with internal surge protection and accurate analog-to-digital conversion
Power Specifications
Supply Source: Powered via Ovation I/O backplane
Power Consumption: Typical for standard Ovation analog input modules
Protection: Internal surge protection and input isolation to safeguard module circuitry
Communication & Interface
Input Type: Voltage analog input
Supported Input Ranges: ±5 V, ±10 V depending on system configuration
Signal Processing: Analog-to-digital conversion for accurate measurement delivery to the controller
Compatibility: Fully compatible with Ovation I/O base units and backplane for seamless integration
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Installation Environment: Indoor control cabinets, protected from harsh external conditions
Dimensions & Weight
Dimensions (L × W × H): 165 × 35 × 120 mm
Weight: ~0.32 kg
