Overview

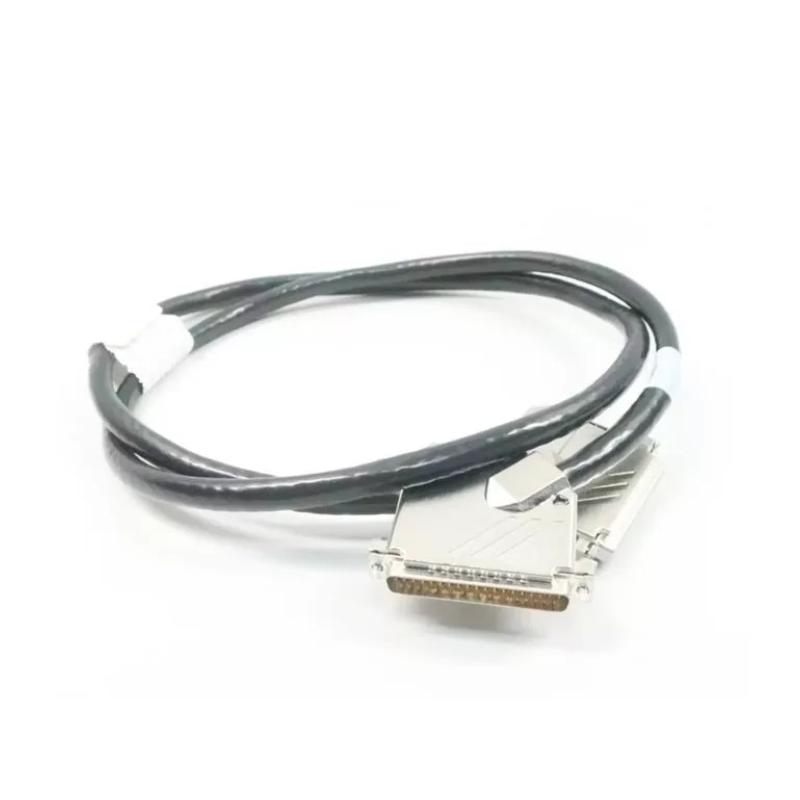

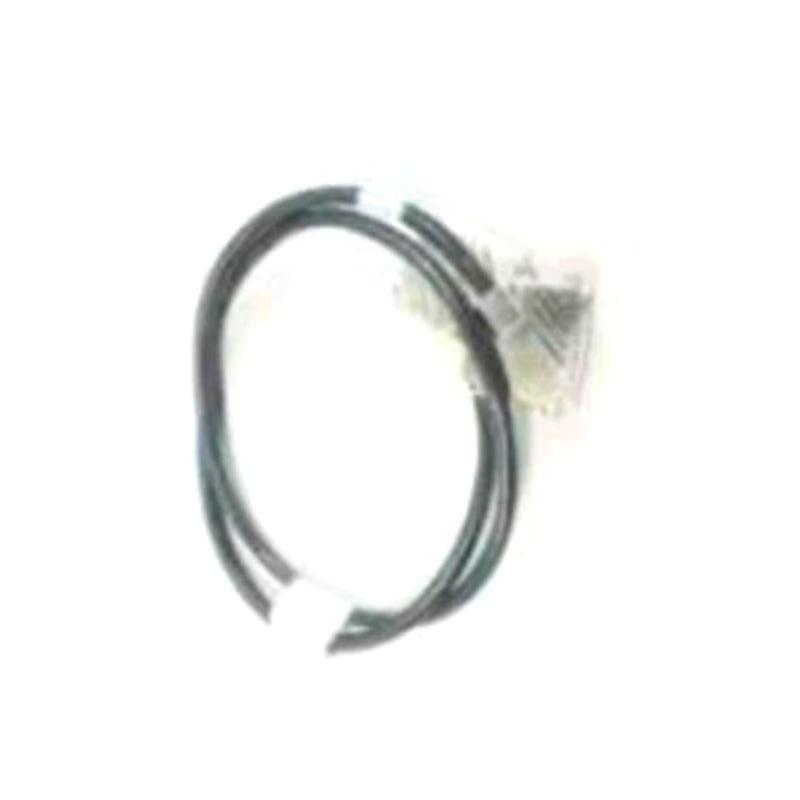

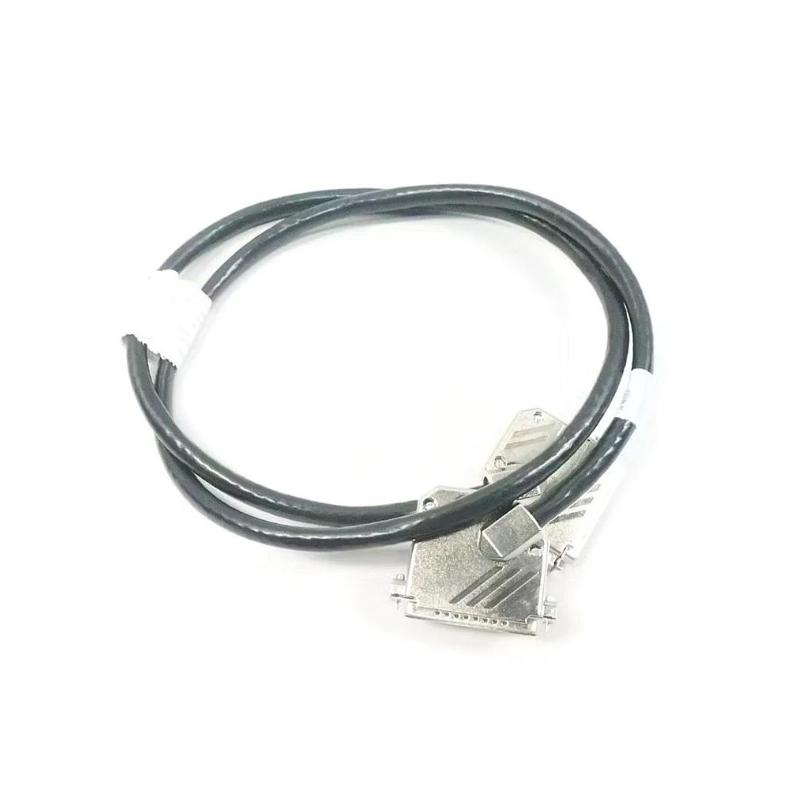

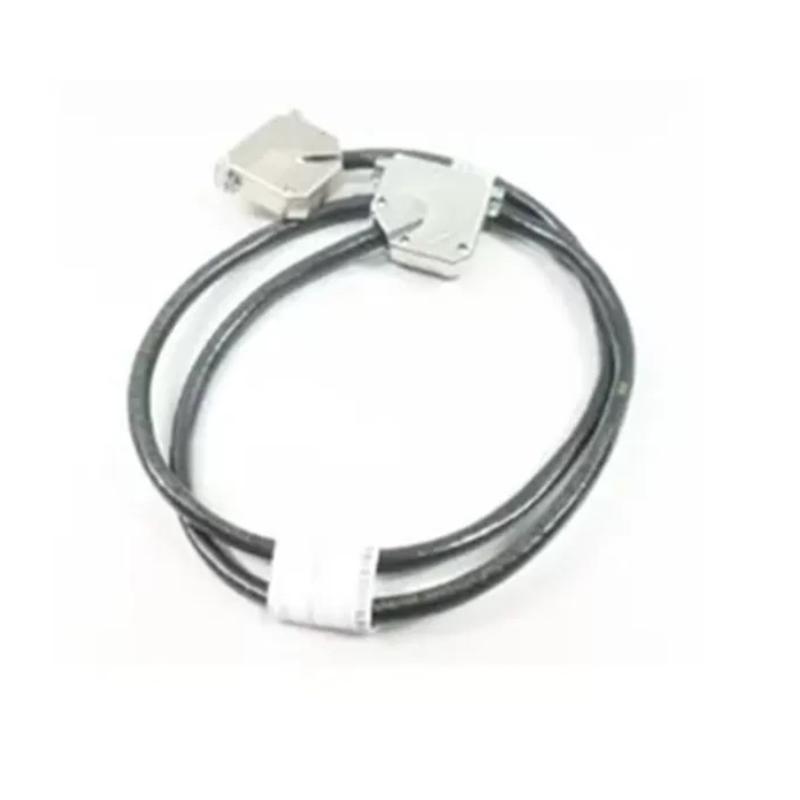

The OVATION 5A26141G09 is a local I/O bus cable used in Emerson Ovation DCS systems. It provides reliable signal and data transfer between I/O modules and the system backplane, ensuring stable communication for digital and analog field devices.
General Information
Part Number: 5A26141G09
Manufacturer: Emerson
Brand / Country of Origin: Emerson / USA
Series: Ovation I/O Accessories
Type: Local I/O Bus Cable
Mounting: Plug-in connection between I/O modules and backplane
Technology: Shielded communication cable for industrial DCS environments
Power Specifications
Supply Voltage: Powered via I/O modules (bus signal power)
Power Consumption: N/A (passive cable)
Input: N/A
Protection: EMI/RFI shielding for signal integrity
Indicators: None
Communication & Interface
Bus Role: Connects Ovation I/O modules to backplane for data and signal transfer
Diagnostics: Monitored through Ovation system diagnostics
Operator Interface: None
Reset Features: N/A
I/O & Channels
Relay Channels: None
External Load Support: None (cable only transmits signals, does not drive loads)
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Suitable for indoor industrial control cabinet
Dimensions & Weight
Dimensions (L × W × H): Approx. 165 × 35 × 120 mm
Weight: ~0.5 kg
