Overview

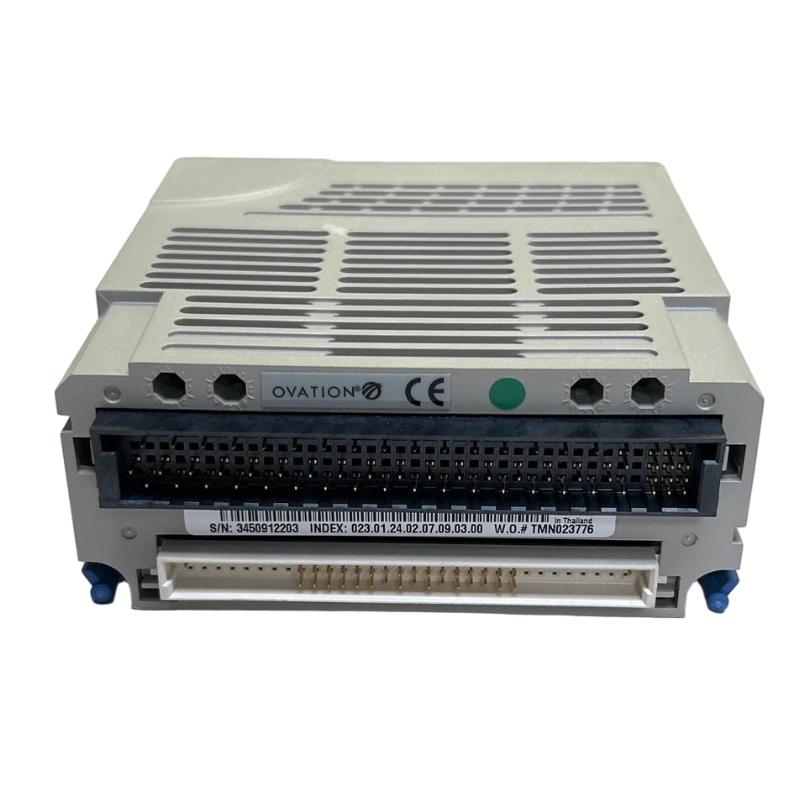

The OVATION 5X00070G05 is a digital input module designed for Emerson Ovation DCS systems. It converts discrete 24 V DC signals from field devices into digital logic for the controller, enabling monitoring and process automation.
General Information
Part Number: 5X00070G05
Manufacturer: Emerson
Brand / Country of Origin: Emerson / USA
Series: Ovation I/O Modules
Type: Digital Input Module
Mounting: Plug-in module in Ovation I/O rack slot
Technology: 24 V DC discrete signal acquisition, LED diagnostics
Power Specifications
Supply Voltage: 24 V DC (field input)
Power Consumption: Supplied via I/O backplane
Input: 24 V DC discrete signals from field devices
Protection: Input isolation and over-current protection
Indicators: LEDs for channel status and module health
Communication & Interface
Bus Role: Transmits digital input signals to Ovation controller via backplane
Diagnostics: Channel status and fault reporting through LED indicators and Ovation diagnostics
Operator Interface: LED indicators
Reset Features: Supports hot-swap replacement and system reconfiguration
I/O & Channels
Relay Channels: None
External Load Support: None (module acquires signals, does not drive loads)
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment
Dimensions & Weight
Dimensions (L × W × H): 165 × 35 × 120 mm
Weight: ~0.35 kg
