Overview

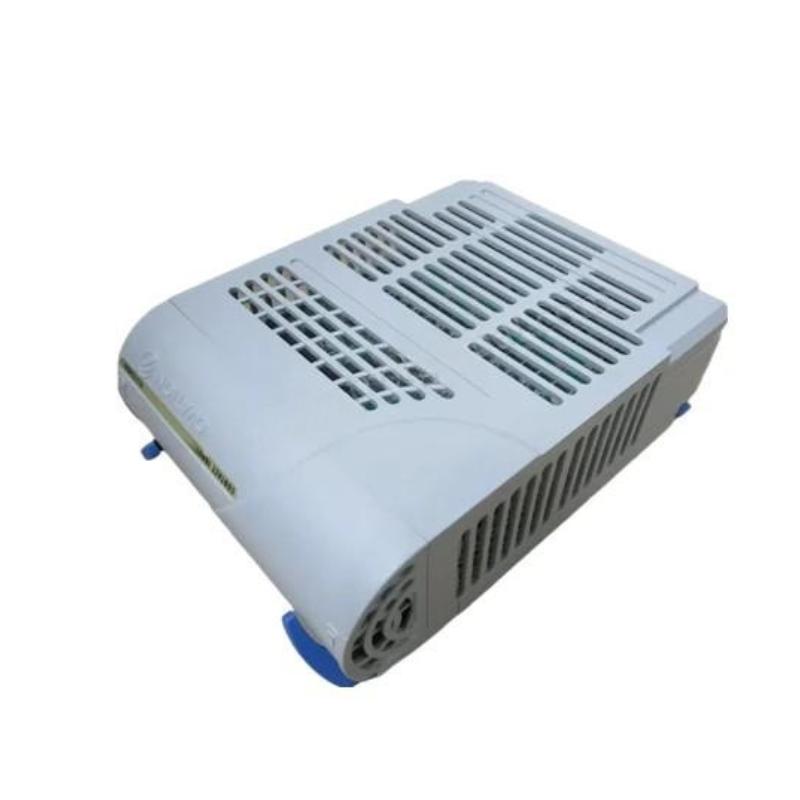

The OVATION 5X00119G02 is a digital output module for Emerson Ovation DCS systems. It receives digital commands from the controller and drives 24 V DC field devices, such as relays, actuators, and indicators, enabling process control and actuation.
General Information
Part Number: 5X00119G02
Manufacturer: Emerson
Brand / Country of Origin: Emerson / USA
Series: Ovation I/O Modules
Type: Digital Output Module
Mounting: Plug-in module in Ovation I/O rack slot
Technology: 24 V DC discrete output, LED status diagnostics
Power Specifications
Supply Voltage: Powered via Ovation I/O backplane
Power Consumption: Dependent on output load
Output: 24 V DC discrete output channels
Protection: Output isolation, over-current protection
Indicators: LEDs for channel status and module health
Communication & Interface
Bus Role: Transmits controller commands to field devices via digital outputs
Diagnostics: LED indicators and Ovation system diagnostics provide channel and module status
Operator Interface: LED indicators
Reset Features: Supports hot-swap replacement and system reconfiguration
I/O & Channels
Relay Channels: None
External Load Support: Drives discrete 24 V DC loads per channel specification
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: Standard industrial cabinet environment
Dimensions & Weight
Dimensions (L × W × H): 165 × 35 × 120 mm
Weight: ~0.35 kg
