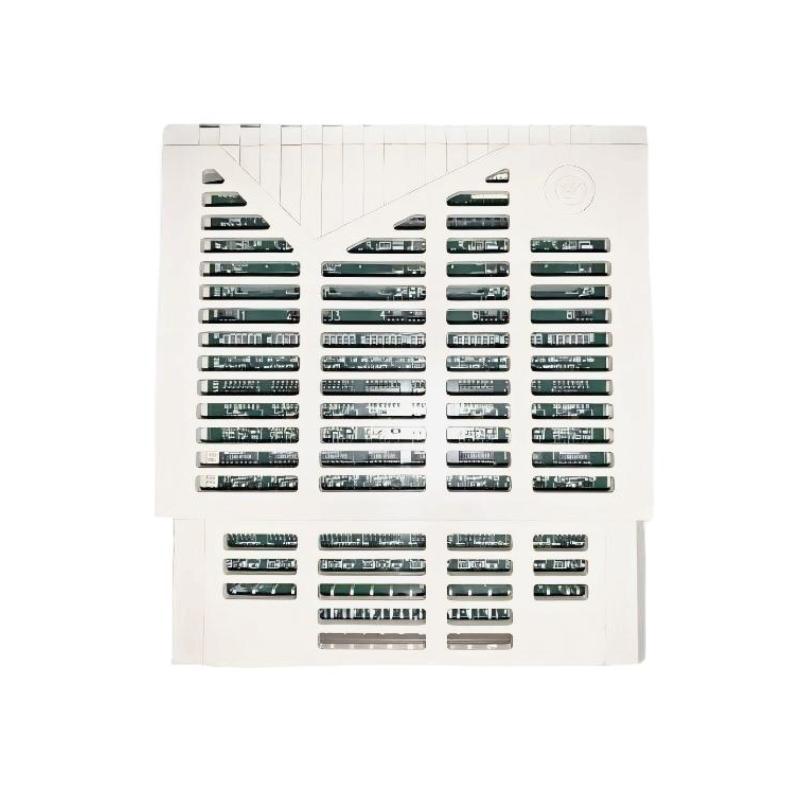

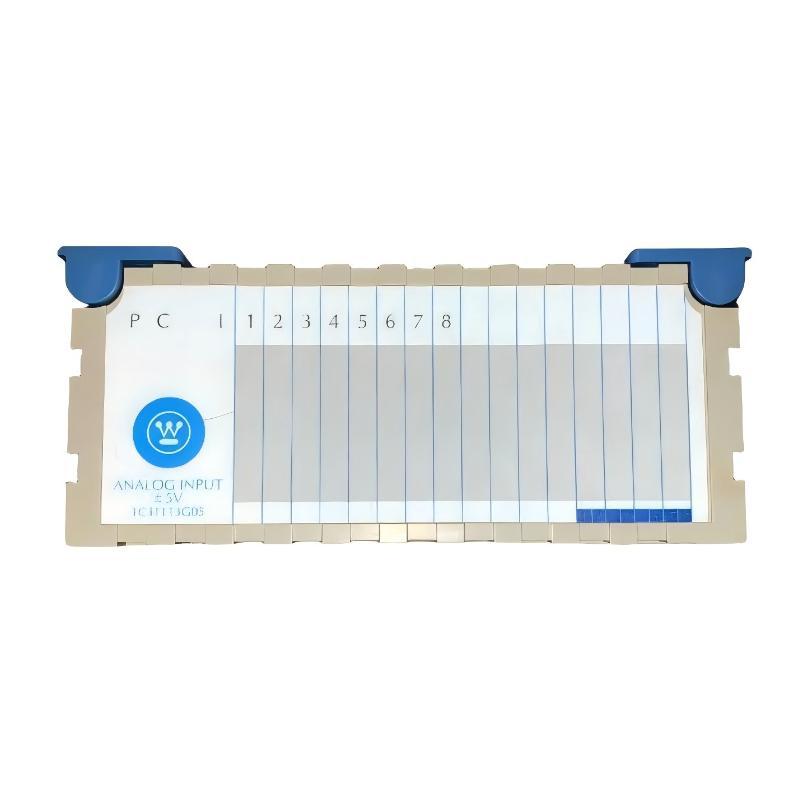

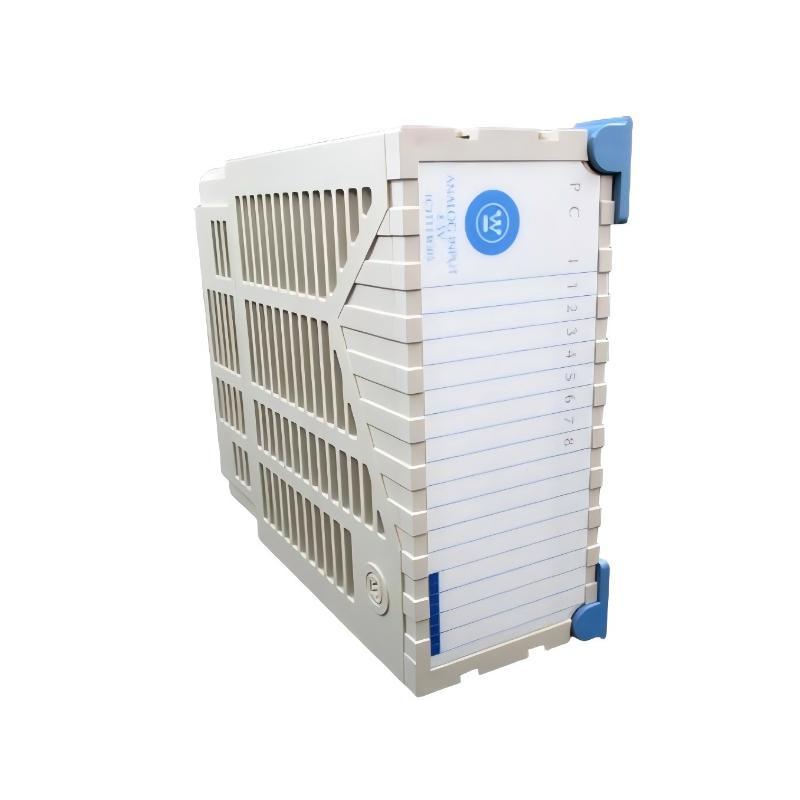

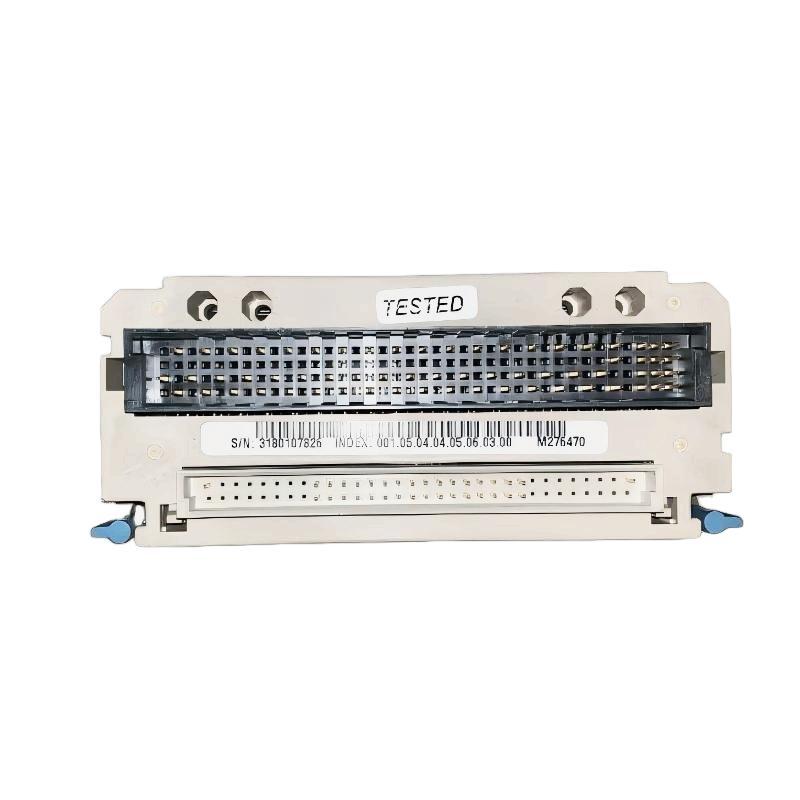

Ovation 1C31113G05 Analog Input Module

Overview

The Ovation 1C31113G05 is an industrial analog input module designed for Emerson Ovation control systems. It is used to acquire and convert analog signals from field instruments such as transmitters and sensors into digital data for process monitoring and control applications. The module delivers stable performance and accurate signal processing for power generation and large-scale industrial automation systems.

General Information

Part Number: 1C31113G05

Manufacturer: Emerson

Brand: Ovation

Country of Origin: USA

Series: Ovation Control System

Type: Analog Input Module

Function: Converts field analog signals into digital values for control system processing

Mounting: Installed in Ovation system rack or control chassis

Technology: High-precision analog signal conditioning and A/D conversion architecture

Power Specifications

Operating Voltage: Supplied via system backplane

Power Consumption: Low power industrial module

Input Signal Types: Industrial standard analog inputs (e.g., 4–20 mA, voltage signals depending on configuration)

Protection: Overvoltage protection and channel isolation

Indicators: LED status indicators for module health and operational status

Communication & Interface

System Interface: Ovation control system backplane communication

Data Handling: Real-time analog data acquisition and transmission to controller

Diagnostics: Built-in self-diagnostics and fault detection functions

Channel Architecture: Multi-channel configurable input structure depending on system setup

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control system rated

Protection Rating: Designed for cabinet or rack installation (IP20 equivalent)

Dimensions & Weight

Dimensions (H × W × D): 162 × 62 × 127 mm

Weight: 0.32 kg
