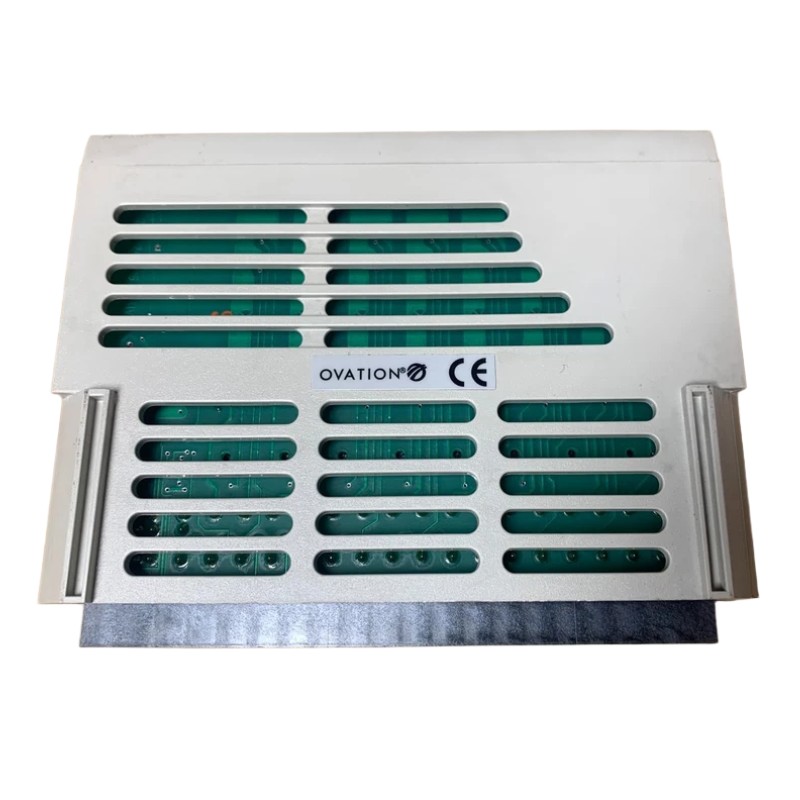

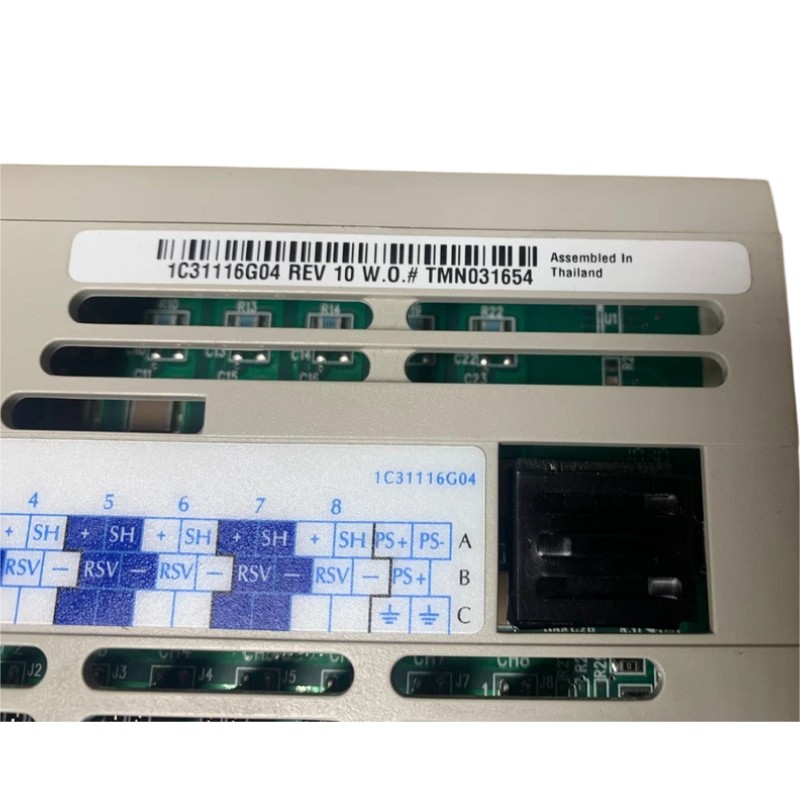

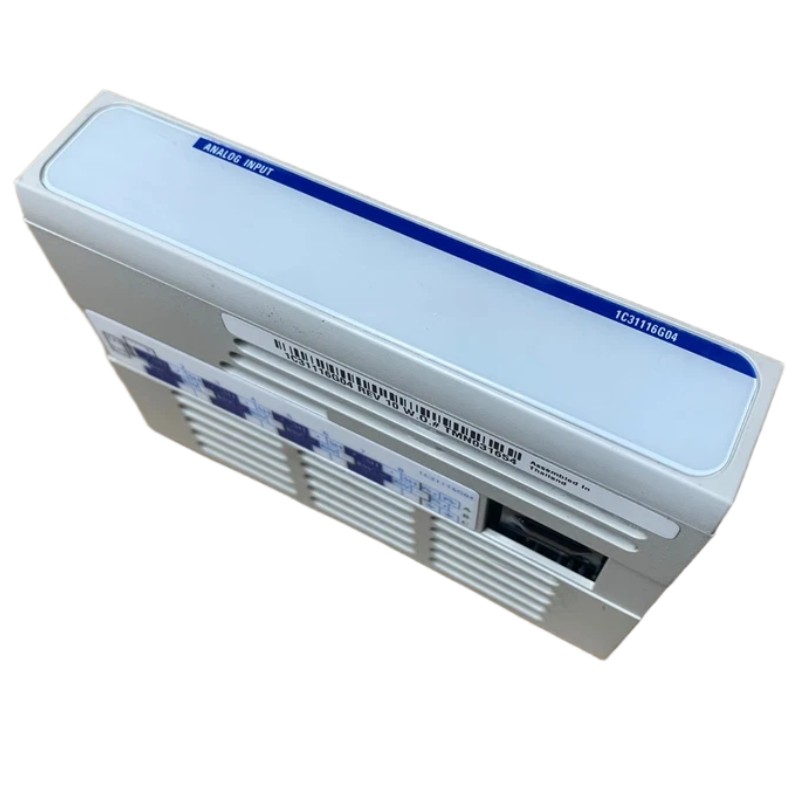

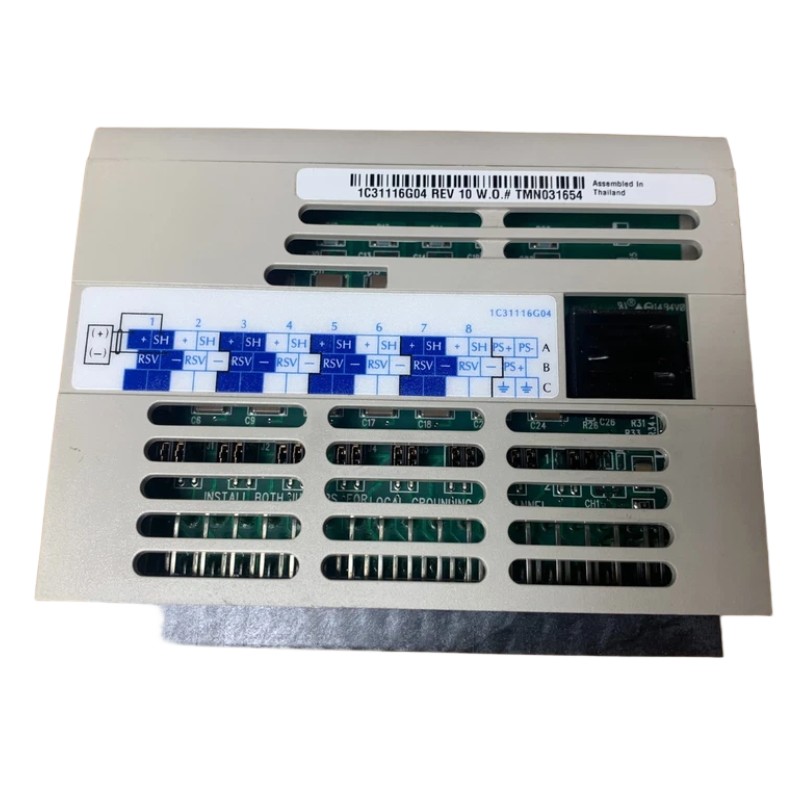

Ovation 1C31116G04 Analog Input Module

Overview

The Ovation 1C31116G04 is an analog input module used in industrial control applications to collect and process continuous analog signals from field instruments. It supports accurate signal conversion and stable data transmission to the control system, enabling reliable monitoring and process automation in demanding environments.

General Information

Part Number: 1C31116G04
Manufacturer: Emerson
System Series: Ovation DCS
Brand: Emerson (USA)
Country of Origin: USA
Type: Analog Input Module
Function: Multi-channel analog signal acquisition and conditioning
Installation: Rack-mounted module within Ovation control chassis
Compatibility: Ovation distributed control system
Technology: High-precision analog-to-digital conversion with diagnostic capabilities

Power Specifications

Supply Voltage: 24 V DC (via system backplane)
Power Consumption: Typically ≤ 6 W
Input Power Source: System rack power supply
Protection: Over-voltage, short-circuit, and reverse polarity protection
Status Indication: LED indicators for power and fault status

Communication & Interface

Signal Interface: Analog input channels for industrial sensors
Input Types: 4–20 mA / 0–10 V (system dependent configuration)
Data Transfer: Digital communication via backplane to controller
Channel Isolation: Galvanic isolation between channels
Diagnostics: Open-circuit detection, fault monitoring, channel status feedback
System Integration: Fully compatible with Ovation control architecture

Environmental

Operating Temperature: 0 to +60 °C
Storage Temperature: −40 to +85 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial cabinet standard
Protection Class: IP20

Dimensions & Weight

Dimensions (L × W × H): 180 × 35 × 120 mm
Weight: 0.113 kg

In Stock – Ready for Immediate Shipment!
