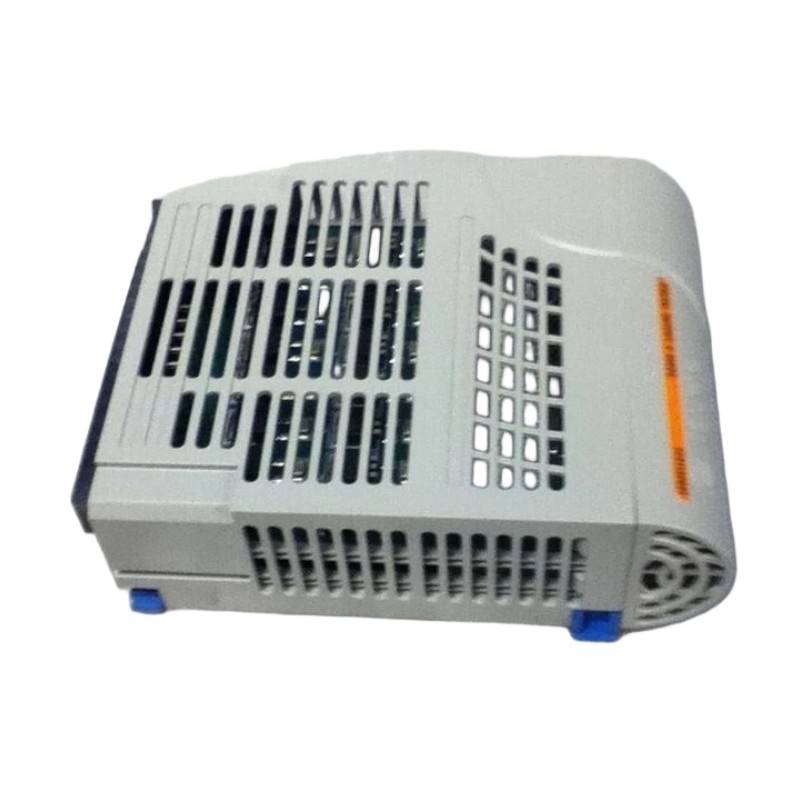

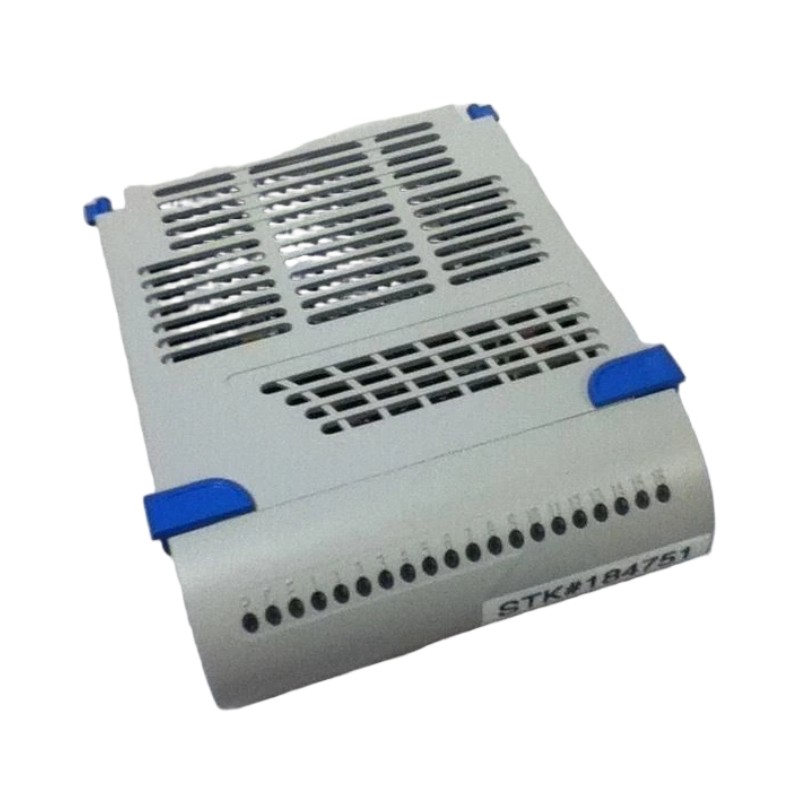

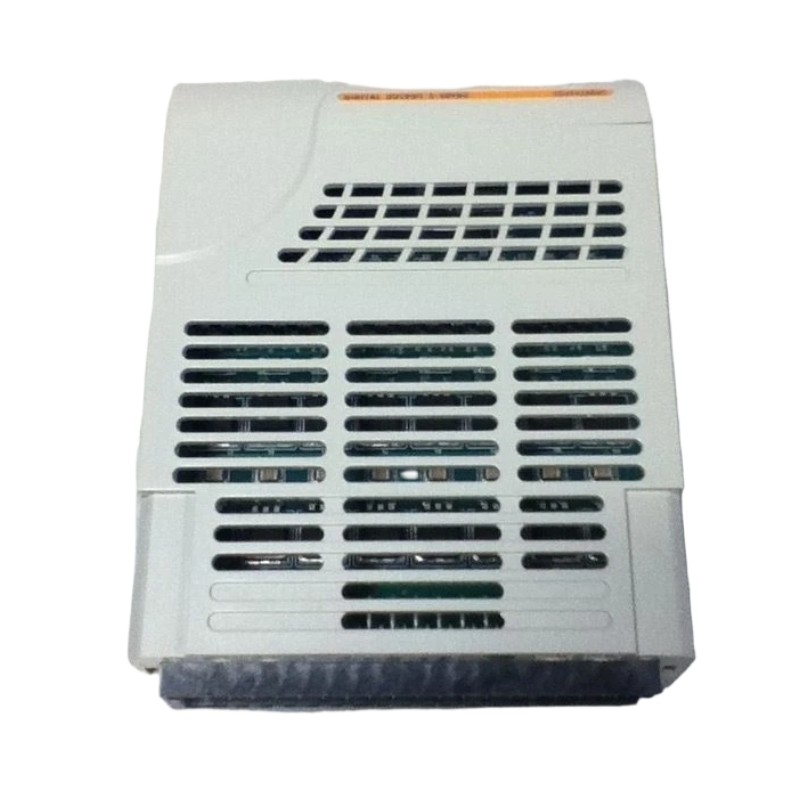

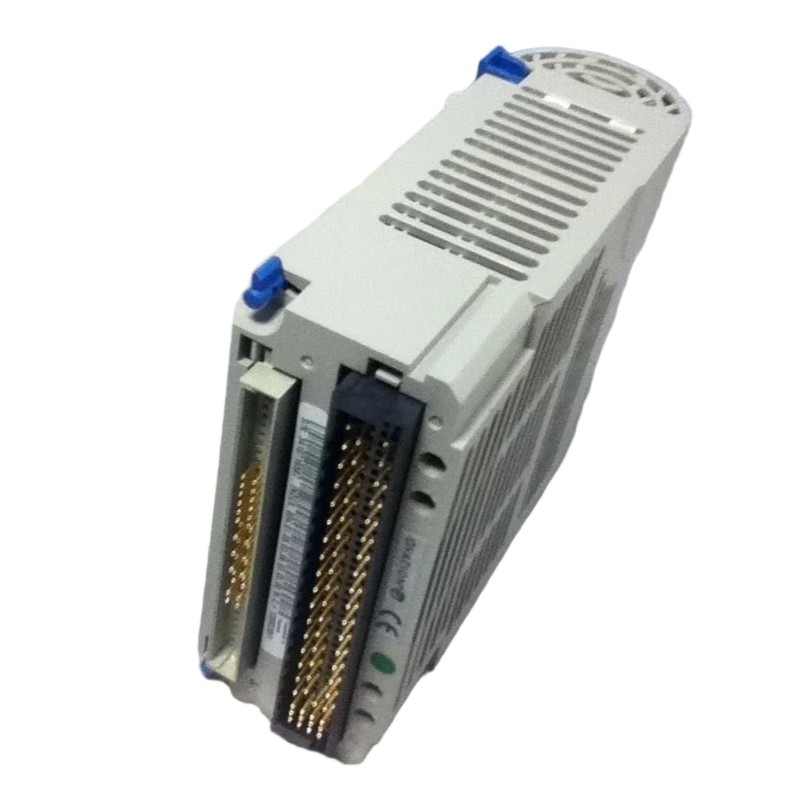

Ovation 1C31122G01 Digital Output Module

Overview

The Ovation 1C31122G01 is a digital output module designed for industrial automation and process control applications. It is used to convert control system commands into discrete electrical output signals to drive field devices such as relays, solenoids, and actuators. The module ensures fast switching performance and reliable operation in demanding industrial environments.

General Information

Part Number: 1C31122G01
Manufacturer: Emerson
System Series: Ovation DCS
Brand: Emerson (USA)
Country of Origin: USA
Type: Digital Output Module
Function: Discrete signal output for field device control
Installation: Rack-mounted module within Ovation control chassis
Compatibility: Ovation distributed control system
Technology: Solid-state switching with diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC (via system backplane)
Power Consumption: Typically ≤ 10 W
Output Power Source: System rack / backplane supply
Protection: Over-current, over-voltage, and short-circuit protection
Status Indication: LED indicators for channel status, power, and fault

Communication & Interface

Output Type: Digital ON/OFF signal outputs
Load Types: Relays, solenoids, indicator lamps, actuators
Data Transfer: Backplane communication with control processor
Channel Isolation: Optical/electrical isolation per output channel
Diagnostics: Output status feedback, fault detection, channel monitoring
System Integration: Fully integrated with Ovation control architecture

Environmental

Operating Temperature: 0 to +60 °C
Storage Temperature: −40 to +85 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial control cabinet standard
Protection Class: IP20

Dimensions & Weight

Dimensions (L × W × H): 132 × 108 × 35 mm
Weight: 0.34 kg

Reliable control performance for critical industrial applications!
