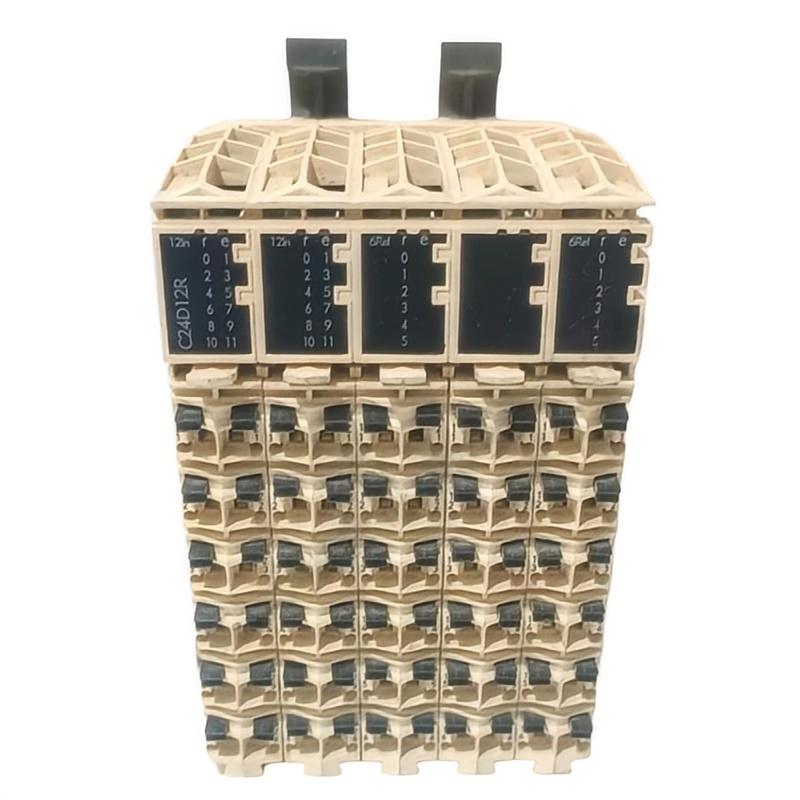

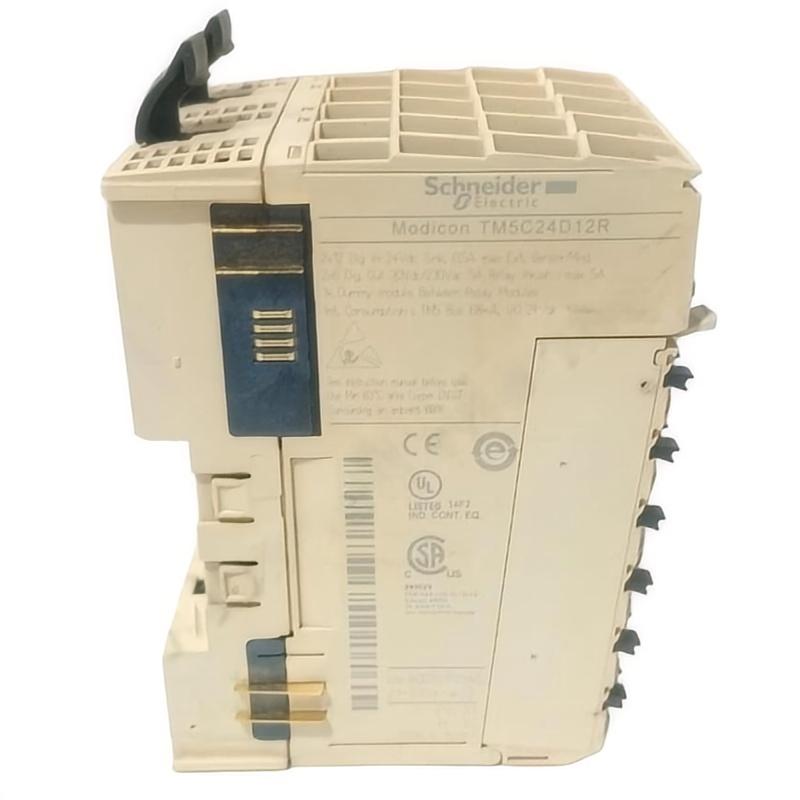

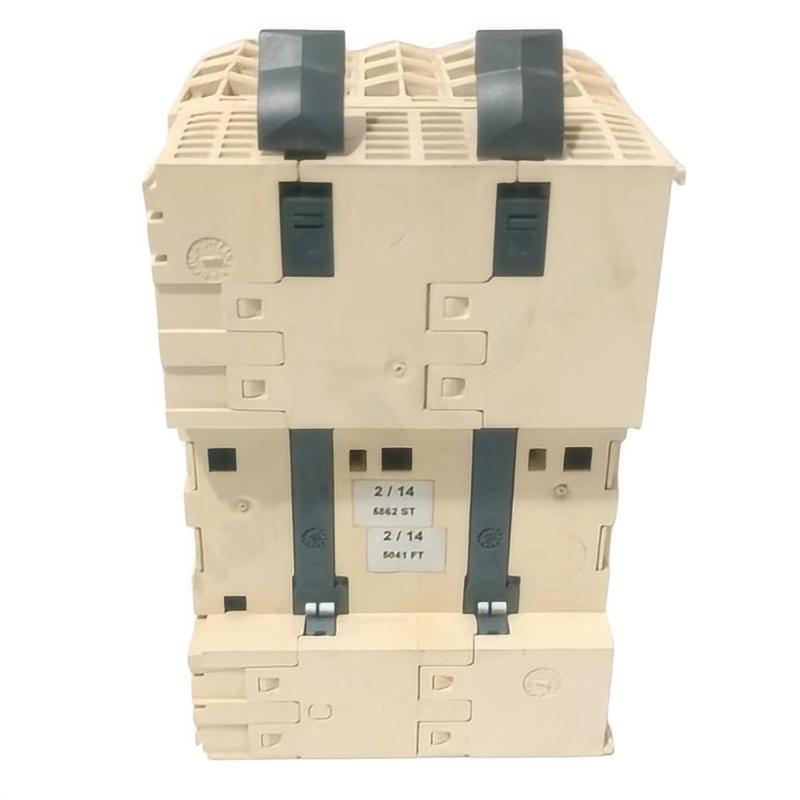

Schneider TM5C24D12R Compact I/O Expansion Block
| Release time | Aug 10, 2026 |
|---|---|
| Brand | Schneider PLC |
| Product Numbe | TM5C24D12R |
| Country Of Origin | France |
| Dimensions | 99 × 62.5 × 75 mm |
| Weight | 0.26 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Schneider TM5C24D12R is a compact I/O expansion block designed for Modicon TM5 automation systems. It provides additional digital input and relay output capabilities, allowing flexible expansion of control systems for industrial automation applications.
The compact design supports efficient cabinet integration while providing reliable signal processing and stable communication for modular machine control systems.
General Information
Part Number: TM5C24D12R
Manufacturer: Schneider Electric
Brand / Country of Origin: Schneider Electric / France
Series: Modicon TM5 Series
Type: Compact I/O Expansion Block
Application: Industrial automation, machine control, distributed I/O expansion, and modular control systems
Installation: TM5 modular I/O system installation
Function: Provides additional digital input and relay output channels for automation applications
Technology: Distributed I/O expansion with integrated internal bus communication
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low-power industrial I/O design
Input Type: Digital input signal processing
Output Type: Relay output control
Protection Functions: Overvoltage and short-circuit protection
Status Indicators: LED indicators for power, input, and output status monitoring
Communication & Interface
System Interface: Modicon TM5 bus communication
Input Channels: Digital input channels for field signal monitoring
Output Channels: Relay output channels for actuator and device control
Communication Method: High-speed internal bus connection
Diagnostics: Module status monitoring and fault indication
Configuration: Managed through compatible Schneider automation software
Environmental
Operating Temperature: −10 to +60 °C
Storage Temperature: −25 to +70 °C
Humidity: 5 to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Suitable for industrial control cabinets
Cooling Method: Natural air cooling
Dimensions & Weight
Dimensions (L × W × H): 99 × 62.5 × 75 mm
Weight: 0.26 kg
