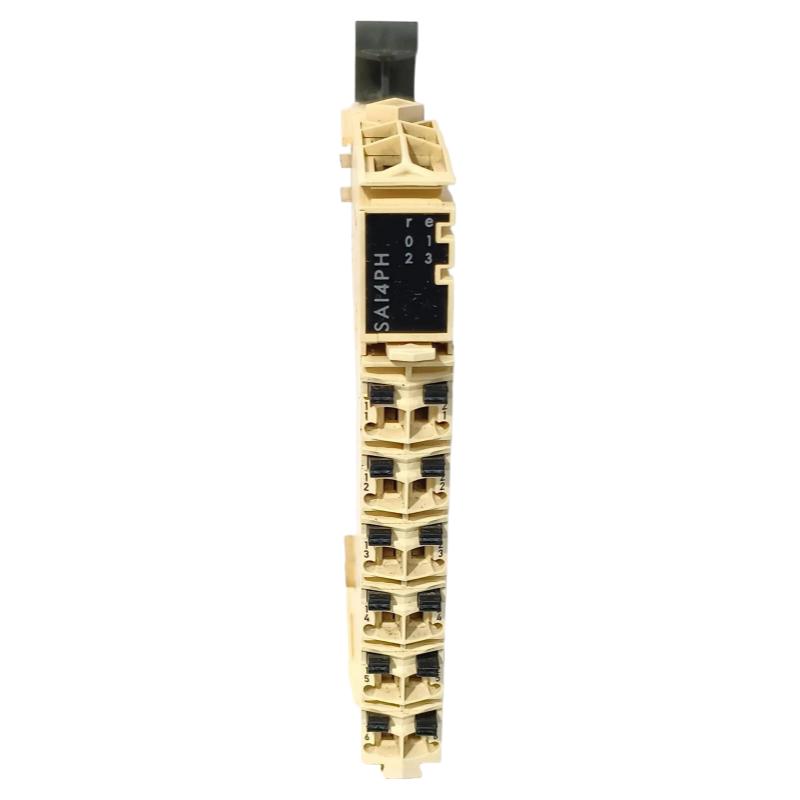

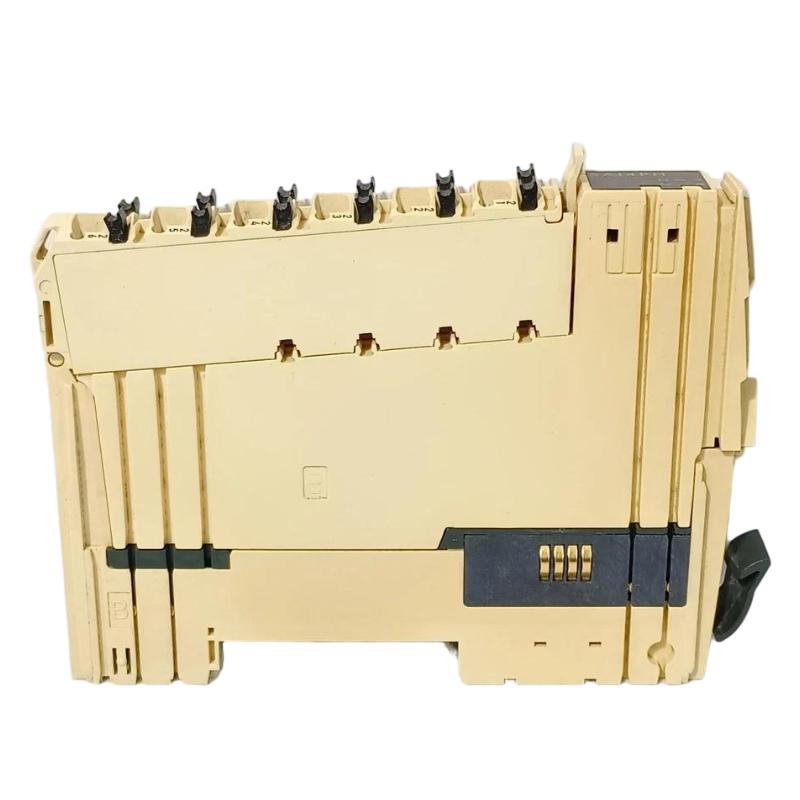

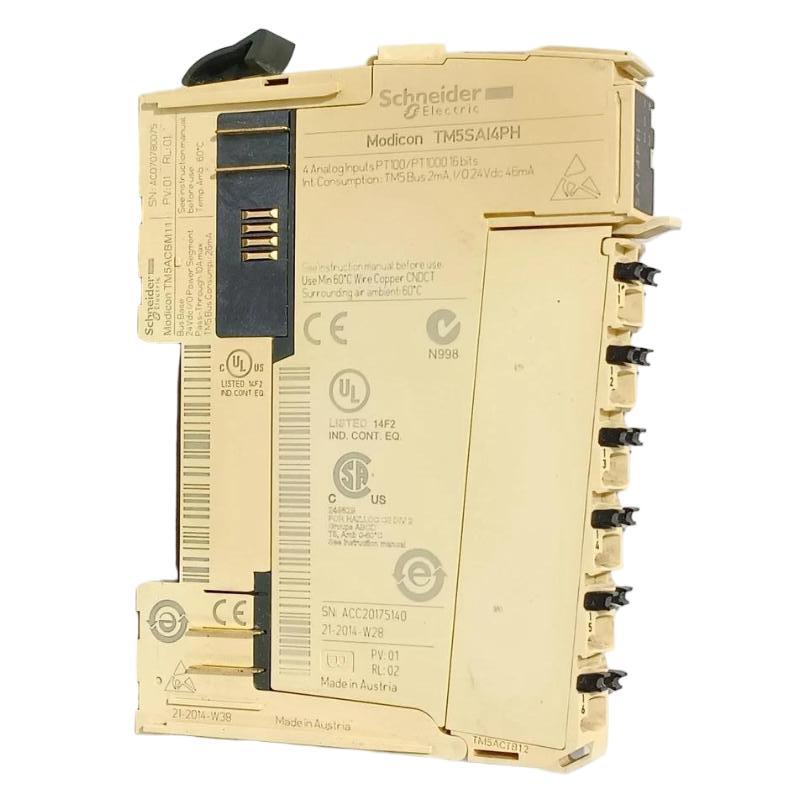

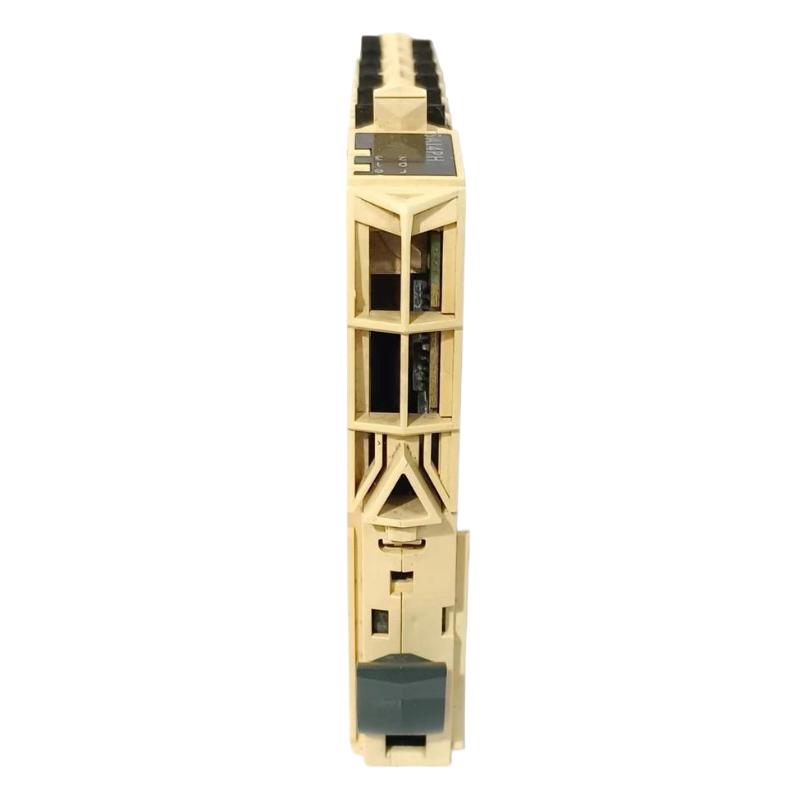

Schneider TM5SAI4PH Analog Input Module
| Release time | Aug 10, 2026 |
|---|---|
| Brand | Schneider PLC |
| Product Numbe | TM5SAI4PH |
| Country Of Origin | France |
| Dimensions | 99 × 12.5 × 75 mm |
| Weight | 0.025 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Schneider TM5SAI4PH is an analog input module designed for Modicon TM5 automation systems. It provides accurate analog signal acquisition for industrial measurement and control applications, allowing controllers to monitor process variables such as voltage and current signals.
The compact module design supports flexible I/O expansion and reliable data processing in machine automation and industrial control systems.
General Information
Part Number: TM5SAI4PH
Manufacturer: Schneider Electric
Brand / Country of Origin: Schneider Electric / France
Series: Modicon TM5 Series
Type: Analog Input Module
Application: Industrial measurement, process monitoring, machine control, and automation systems
Installation: TM5 modular I/O system installation
Function: Converts analog field signals into digital values for controller processing
Technology: High-precision analog signal acquisition technology
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low-power industrial I/O design
Input Type: Analog voltage and current signal input
Resolution: High-resolution analog signal conversion
Protection Functions: Overvoltage and signal input protection
Status Indicators: LED indicators for module status and operation monitoring
Communication & Interface
System Interface: Modicon TM5 internal bus communication
Input Channels: 4 analog input channels
Signal Type: Analog voltage/current measurement signals
Communication Method: High-speed data exchange through TM5 bus
Diagnostics: Channel monitoring, fault detection, and module status reporting
Configuration: Managed through compatible Schneider automation software
Environmental
Operating Temperature: −10 to +60 °C
Storage Temperature: −25 to +70 °C
Humidity: 5 to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Suitable for industrial control cabinets
Cooling Method: Natural air cooling
Dimensions & Weight
Dimensions (L × W × H): 99 × 12.5 × 75 mm
Weight: 0.025 kg
New In Stock – Fast Shipping!
QDo you provide technical support or installation services?
QCan I return products if they don’t meet my requirements?
QHow can I ensure compatibility with my existing systems?
QAre there discounts for new wholesale customers?
QCan I purchase different quantities of a product?
QWhat payment methods do you accept for wholesale orders?
QCan I get discounts for bulk purchases?
QWhat is the minimum order quantity (MOQ)?
QHow long does shipping take?
QHow can I verify the product before purchasing?
QDoes this product come with a warranty?
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613620394314 | |||||||
| +8613620394314 | ||||||||
| +8613620394314 | ||||||||
| Add | Room 1102, Jiuzhou Commercial Building, Siming District, Xiamen, China | |||||||
Warranty Conditions
At Qunlebu Co., Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
Normal wear and tear.
Negligence.
Extreme environmental conditions beyond product specifications.
