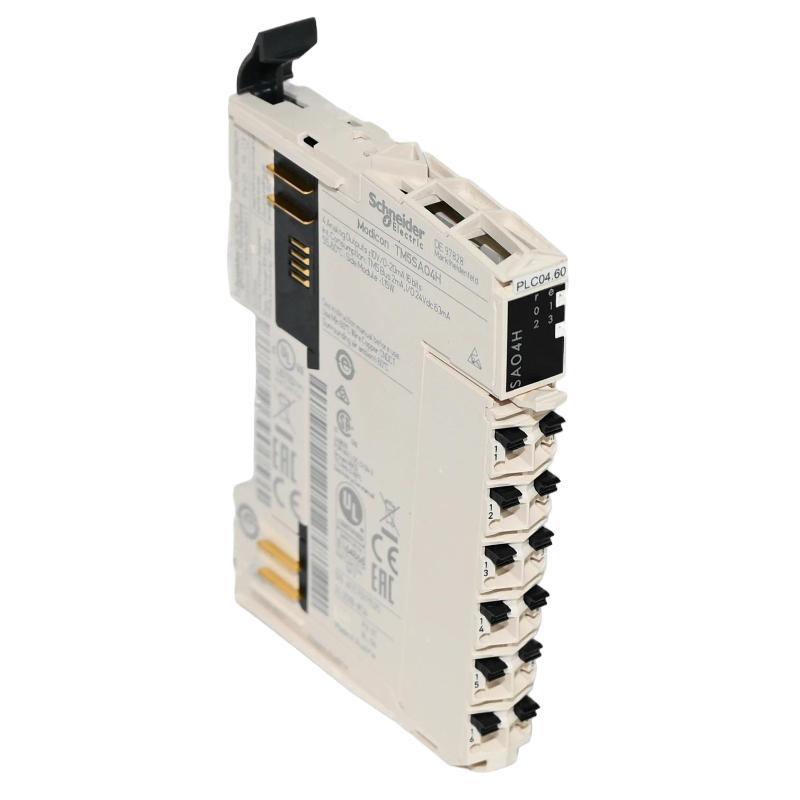

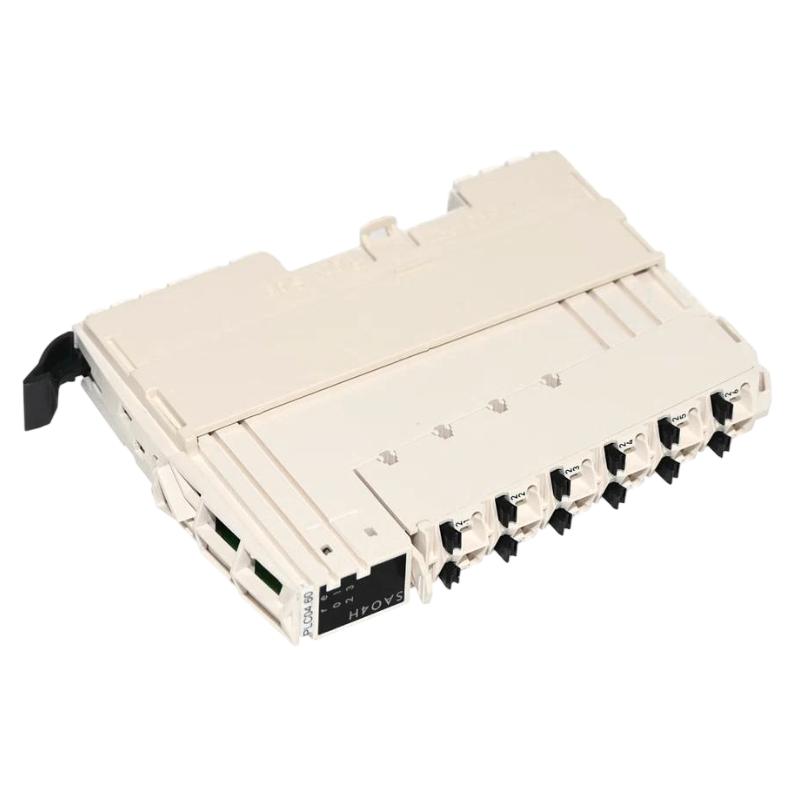

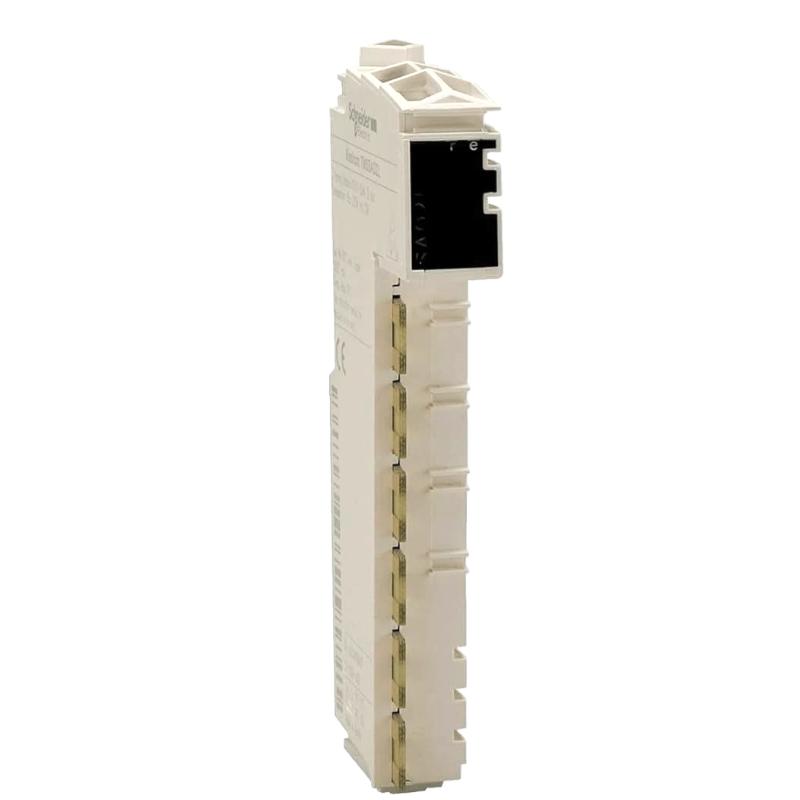

Schneider TM5SAO4H Analog Output Module
| Release time | Aug 10, 2026 |
|---|---|
| Brand | Schneider PLC |
| Product Numbe | TM5SAO4H |
| Country Of Origin | France |
| Dimensions | 99 × 12.5 × 75 mm |
| Weight | 0.025 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Schneider TM5SAO4H is an analog output module designed for Modicon TM5 automation systems. It provides precise analog signal output for controlling industrial equipment such as actuators, valves, and variable speed devices.
The compact module expands the analog control capability of TM5 systems while providing stable signal processing and reliable performance for industrial automation applications.
General Information
Part Number: TM5SAO4H
Manufacturer: Schneider Electric
Brand / Country of Origin: Schneider Electric / France
Series: Modicon TM5 Series
Type: Analog Output Module
Application: Industrial control, process automation, actuator regulation, and machine control systems
Installation: TM5 modular I/O system installation
Function: Converts digital control signals into analog outputs for connected field devices
Technology: High-precision digital-to-analog conversion technology
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Low-power industrial I/O design
Output Type: Analog voltage/current output
Output Channels: 4 analog output channels
Resolution: High-resolution signal conversion for accurate control
Protection Functions: Overvoltage and output short-circuit protection
Status Indicators: LED indicators for module status and operation monitoring
Communication & Interface
System Interface: Modicon TM5 internal bus communication
Output Channels: 4 analog output channels
Signal Type: Analog voltage/current control signals
Communication Method: High-speed data exchange through TM5 bus
Diagnostics: Channel monitoring, fault detection, and module status reporting
Configuration: Managed through compatible Schneider automation software
Environmental
Operating Temperature: −10 to +60 °C
Storage Temperature: −25 to +70 °C
Humidity: 5 to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Suitable for industrial control cabinets
Cooling Method: Natural air cooling
Dimensions & Weight
Dimensions (L × W × H): 99 × 12.5 × 75 mm
Weight: 0.025 kg
