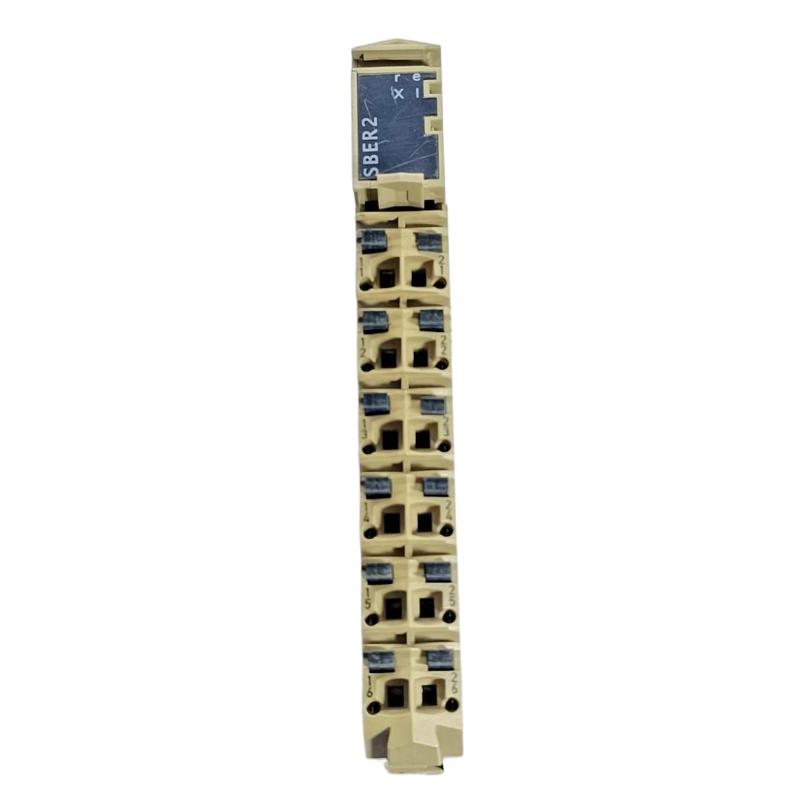

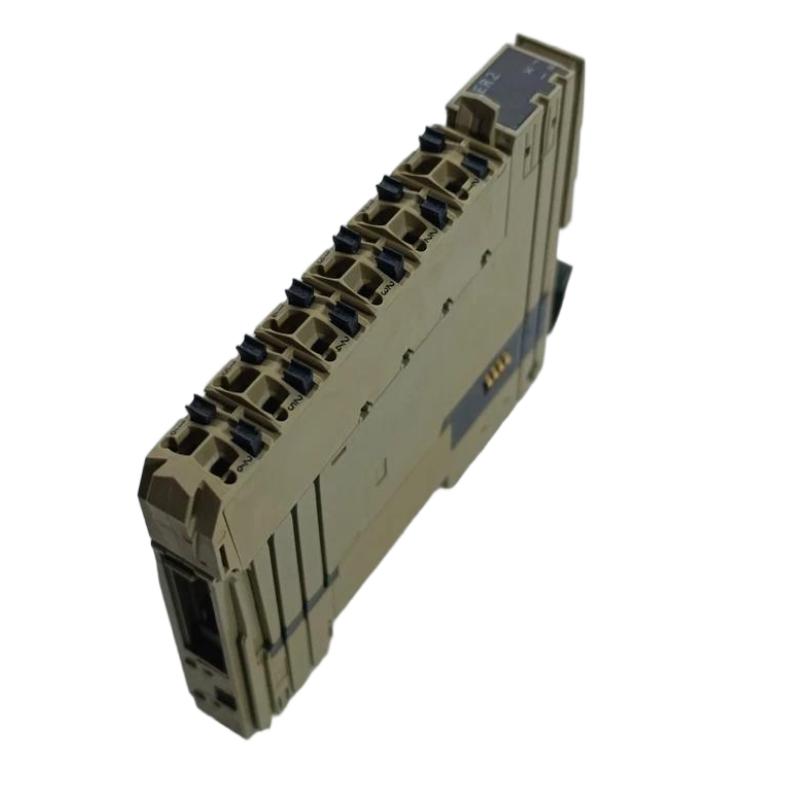

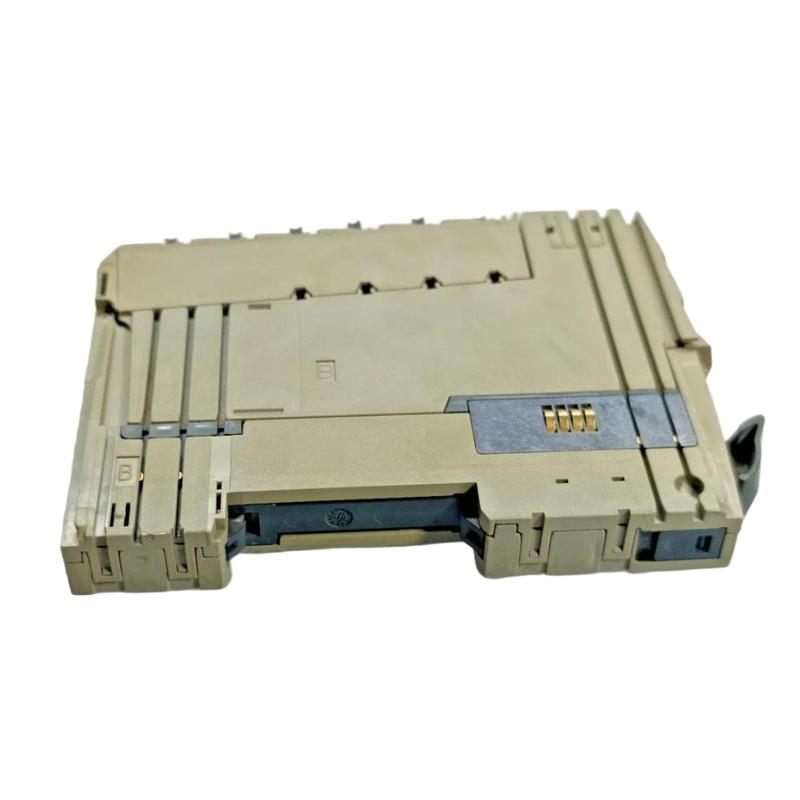

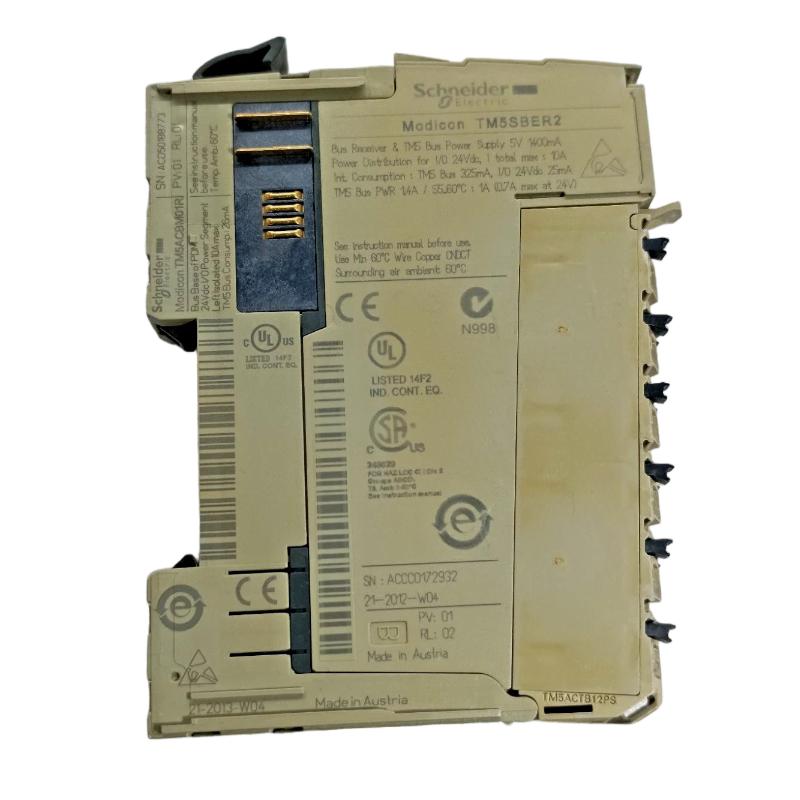

Schneider TM5SBER2 Remote Receiver Module

Overview

The Schneider TM5SBER2 is a compact remote receiver module designed for the Modicon TM5 distributed I/O system. It enables communication between remote I/O islands and the main controller, providing reliable signal exchange and flexible system expansion.

The module supports efficient I/O distribution in industrial automation applications where reduced wiring complexity and modular system architecture are required.

General Information

Part Number: TM5SBER2

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon TM5

Type: Remote Receiver Module

Application: Distributed I/O systems, machine automation, industrial control

Mounting: TM5 bus base installation

Design: Compact modular receiver unit with integrated communication functions

Power Specifications

Supply Voltage: 24 V DC

Power Supply Type: Powered through the TM5 system power bus

Power Consumption: Low power consumption design for distributed applications

Signal Processing: Handles remote I/O communication data exchange

Protection: Overvoltage and short-circuit protection

Indicators: LED status display for power, communication, and fault diagnostics

Communication & Interface

System Interface: Modicon TM5 expansion bus

Communication Function: Remote connection between controller and I/O expansion modules

Data Transmission: Supports reliable TM5 bus communication

Diagnostics: Communication monitoring, module status detection, and fault reporting

Connection Type: TM5 terminal block interface

Application Support: Suitable for distributed machine control architectures

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: 10 to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinets and automation panels

Environmental Resistance: Designed for stable operation in industrial environments

Dimensions & Weight

Dimensions (L × W × H): 99 × 12.5 × 75 mm

Weight: 0.025 kg
