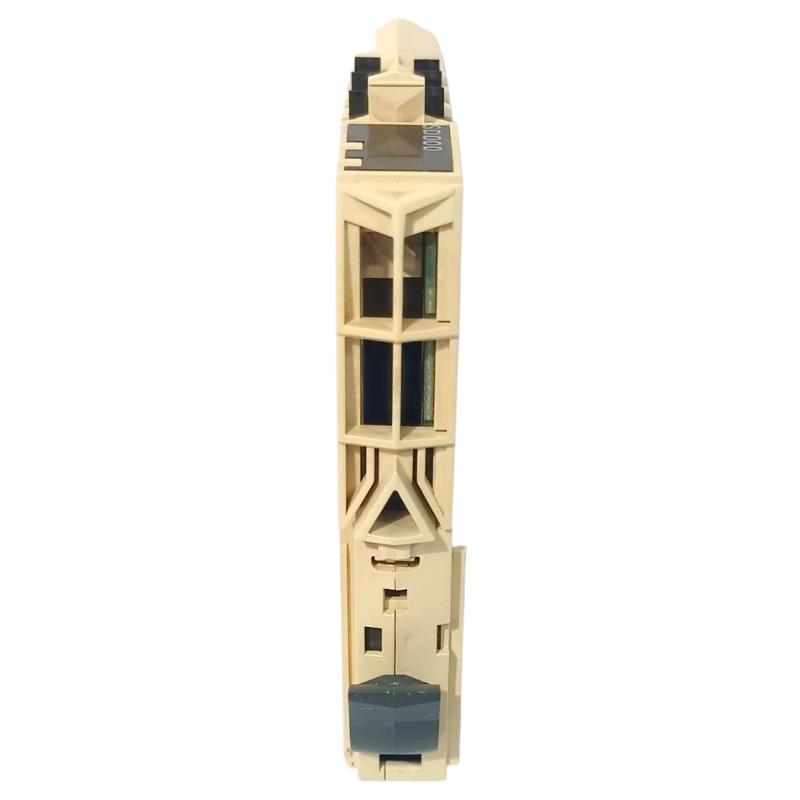

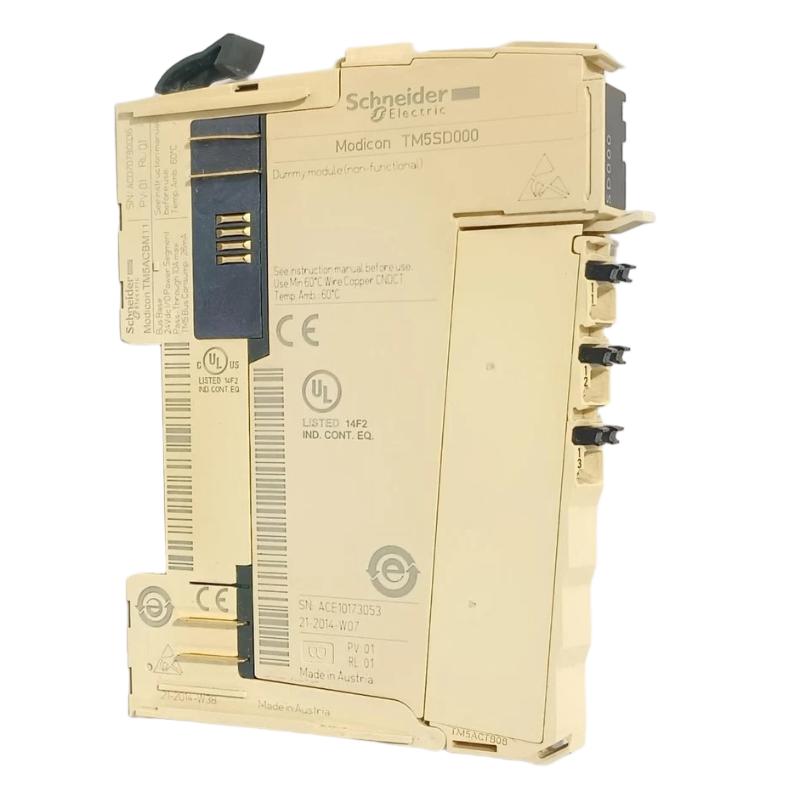

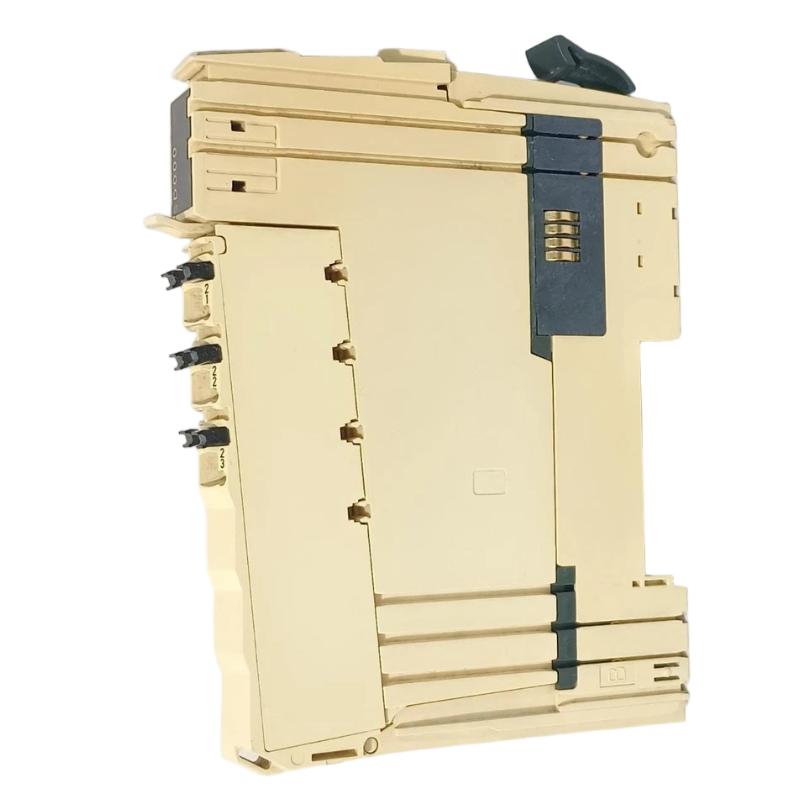

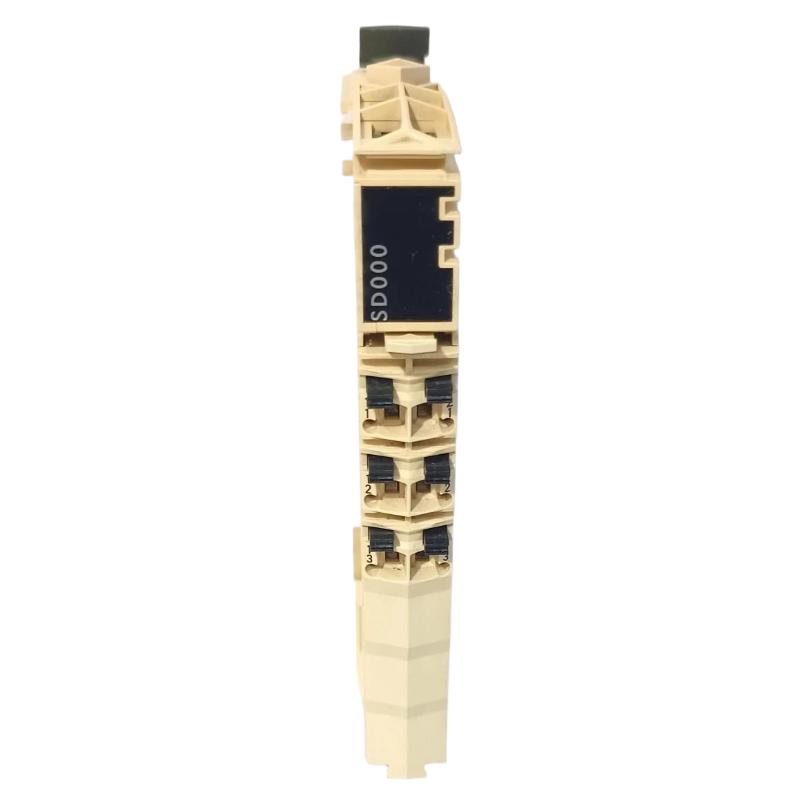

Schneider TM5SD000 Dummy Module

Overview

The Schneider TM5SD000 is a compact dummy module designed for the Modicon TM5 I/O system. It is used to reserve empty positions within the I/O configuration, maintain mechanical stability, and support proper system organization when no functional I/O module is installed.

The module provides a simple solution for unused TM5 slots, helping maintain a clean and structured automation system layout.

General Information

Part Number: TM5SD000

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon TM5

Type: Dummy Module

Application: I/O slot protection, system configuration, automation panel organization

Mounting: TM5 bus base installation

Design: Compact placeholder module for unused I/O positions

Power Specifications

Supply Voltage: No external power supply required

Power Consumption: 0 W

Function: Provides mechanical slot protection without signal processing

Protection: Helps prevent contamination and accidental contact on unused module positions

Indicators: None

Module Operation: Passive component for system arrangement and expansion preparation

Communication & Interface

System Interface: Modicon TM5 bus base connection

Communication Function: No communication function

Signal Processing: None

Diagnostics: Not applicable

Connection Type: TM5 mechanical interface

Application Support: Maintains I/O island structure and supports future module expansion

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: 10 to 95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinets and automation panels

Environmental Resistance: Designed for reliable use in standard industrial environments

Dimensions & Weight

Dimensions (L × W × H): 99 × 12.5 × 75 mm

Weight: 0.025 kg
