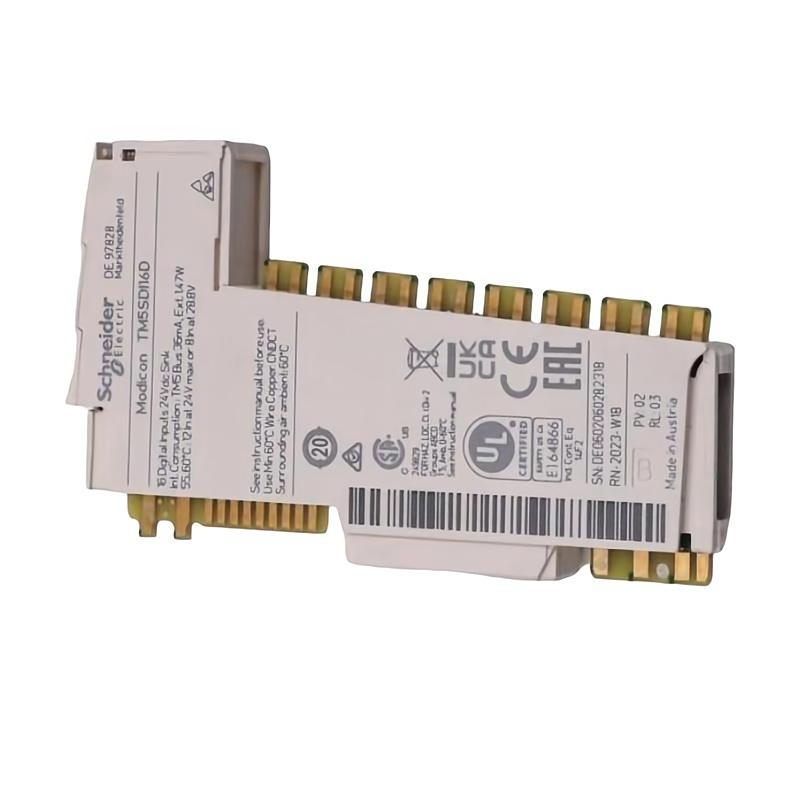

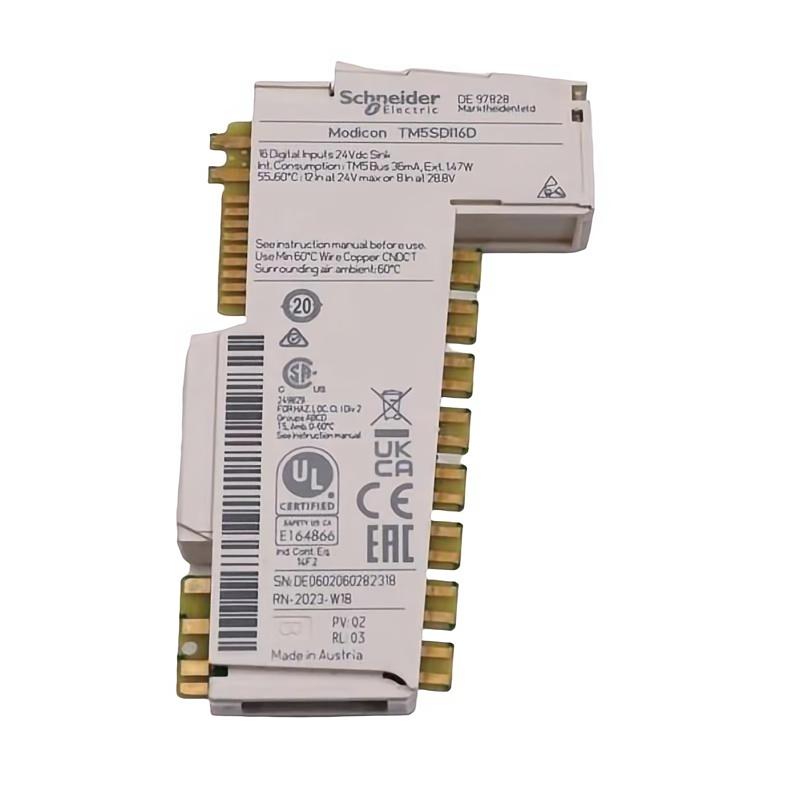

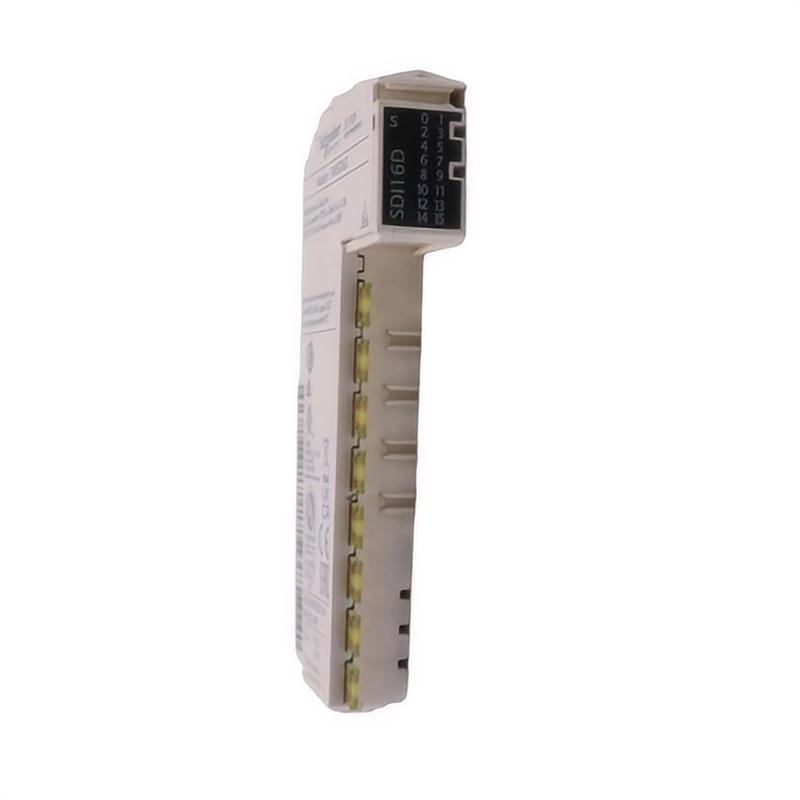

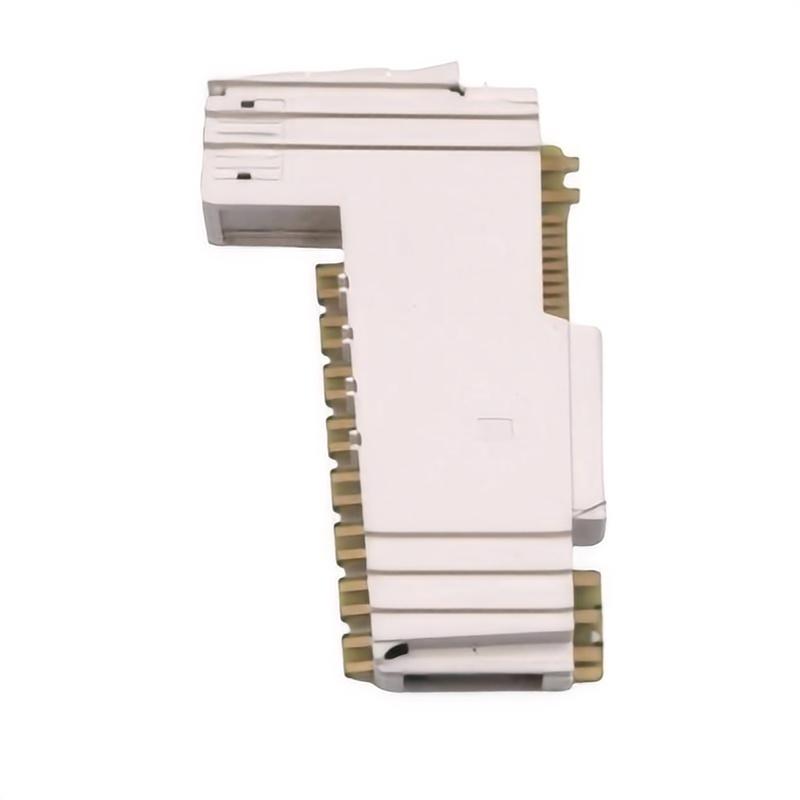

Schneider TM5SDI16D Discrete Input Module
| Release time | Aug 11, 2026 |
|---|---|
| Brand | Schneider PLC |
| Product Numbe | TM5SDI16D |
| Country Of Origin | France |
| Dimensions | 99 × 12.5 × 75 mm |
| Weight | 0.025 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Schneider TM5SDI16D is a compact discrete input module designed for the Modicon TM5 I/O system. It provides reliable digital signal acquisition from industrial sensors, switches, and field devices, allowing automation controllers to monitor machine conditions and process states.
The module offers a space-saving design and stable signal processing performance, making it suitable for distributed I/O applications that require efficient wiring and flexible system expansion.
General Information
Part Number: TM5SDI16D
Manufacturer: Schneider Electric
Brand: Schneider Electric
Country of Origin: France
Series: Modicon TM5
Type: Discrete Input Module
Application: Industrial automation, machine control, distributed I/O systems
Mounting: TM5 bus base installation
Design: Compact modular I/O structure with integrated diagnostic functions
Power Specifications
Supply Voltage: 24 V DC
Power Supply Type: Powered through the TM5 I/O system
Input Channels: 16 digital input channels
Input Signal Type: Discrete voltage signals
Signal Processing: Fast digital input detection for automation control
Protection: Input protection against electrical noise and overload conditions
Indicators: LED status indicators for module and channel monitoring
Communication & Interface
System Interface: Modicon TM5 expansion bus
Communication Method: Internal TM5 bus communication with controller
Input Configuration: Software-configurable input parameters
Diagnostics: Module status monitoring, input signal detection, and fault reporting
Connection Type: TM5 terminal block interface
Application Support: Designed for connection with industrial sensors, switches, and control devices
Environmental
Operating Temperature: 0 to +55 °C
Storage Temperature: −25 to +70 °C
Humidity: 10 to 95% RH, non-condensing
Protection Rating: IP20
Installation Environment: Industrial control cabinets and automation panels
Environmental Resistance: Designed for stable performance in industrial operating conditions
Dimensions & Weight
Dimensions (L × W × H): 99 × 12.5 × 75 mm
Weight: 0.025 kg
