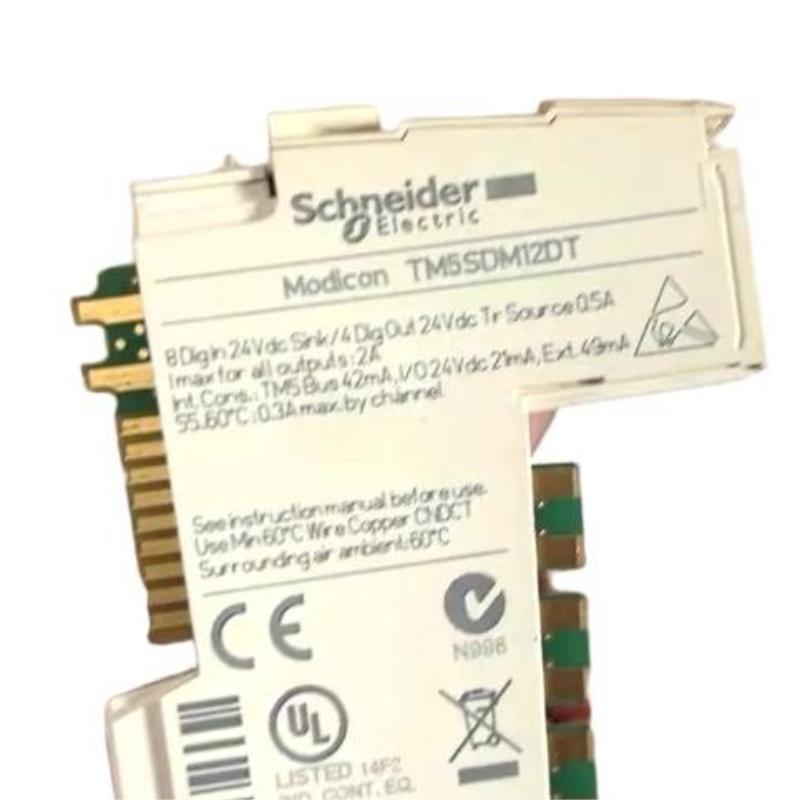

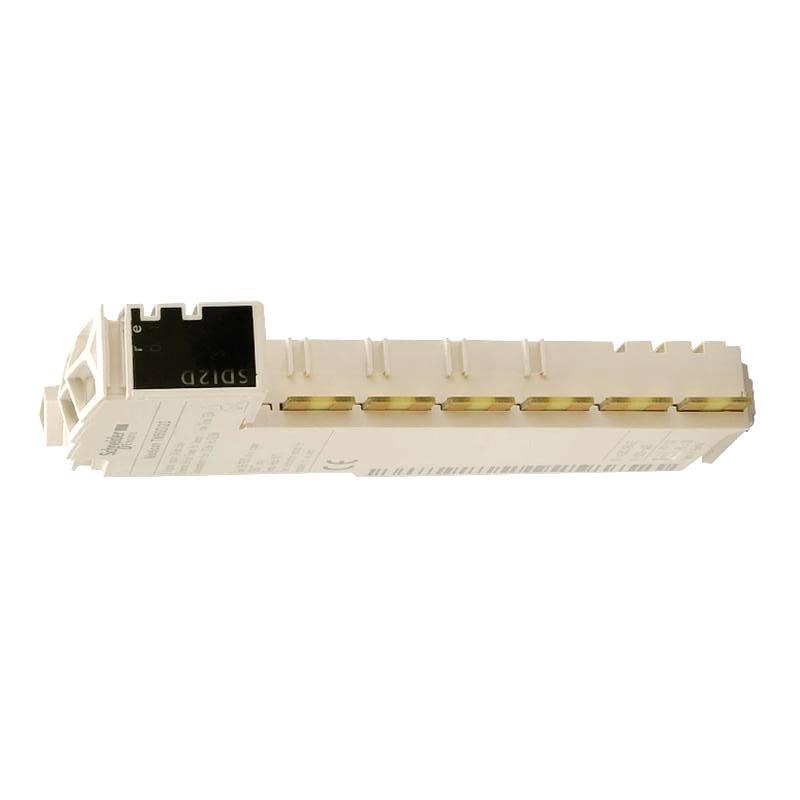

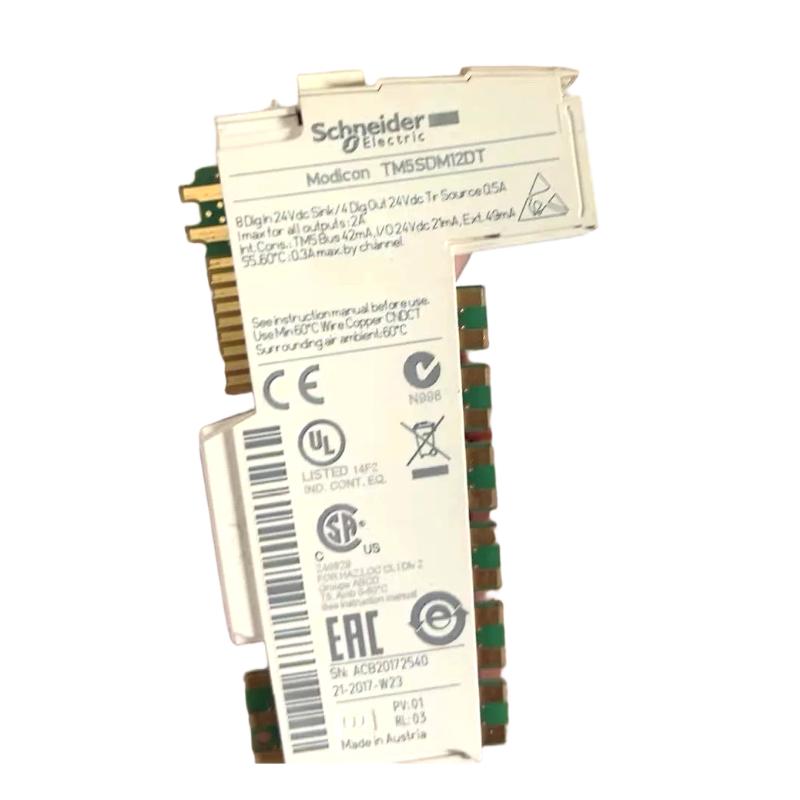

Schneider TM5SDM12DT Discrete I/O Modules

Overview

The Schneider TM5SDM12DT is a compact discrete I/O module designed for the Modicon TM5 modular I/O system. It combines digital input and output functions in one space-saving module, making it suitable for machine control, automation equipment, and distributed I/O applications.

Its narrow 12.5 mm housing allows efficient cabinet installation while providing flexible signal handling for connected field devices.

General Information

Part Number: TM5SDM12DT

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon TM5

Type: Discrete I/O Module

I/O Type: Digital Input / Digital Output

Application: Industrial automation and machine control

Mounting: TM5 modular I/O system

Power Specifications

Rated Input Voltage: 24 V DC

I/O Channels: 12

Signal Type: ON/OFF digital signals

Power Supply: Via the TM5 system

Input Function: Digital signal detection

Output Function: Digital signal switching

Protection: Suitable for industrial control cabinet applications

Communication & Interface

I/O Interface: Discrete input and output channels

System Interface: TM5 bus

Field Connection: TM5 terminal connection

Controller Communication: I/O data exchanged through the TM5 system bus

Status Indication: Module and channel status LEDs

Environmental

Operating Environment: Industrial automation applications

Installation Location: Electrical cabinet or protected control enclosure

Protection Rating: IP20

Humidity: Suitable for standard industrial operating conditions

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): 99 × 12.5 × 75 mm

Weight: 0.025 kg
