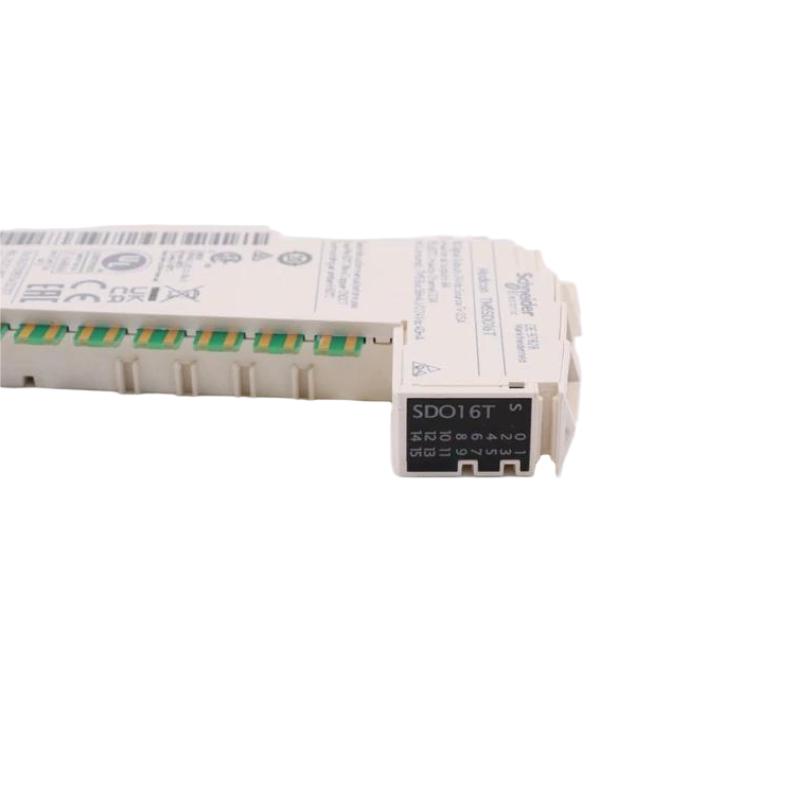

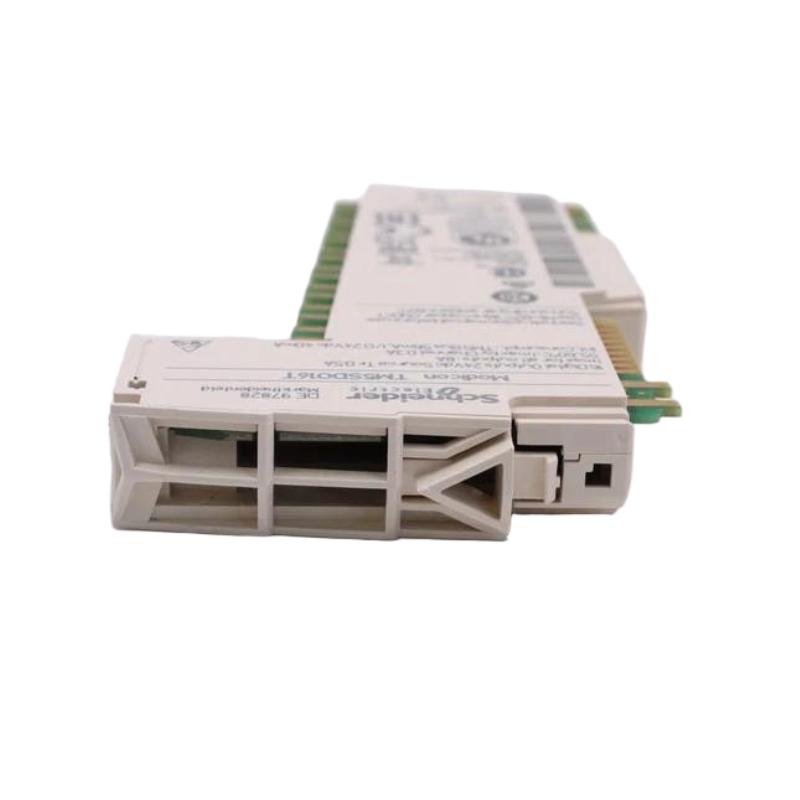

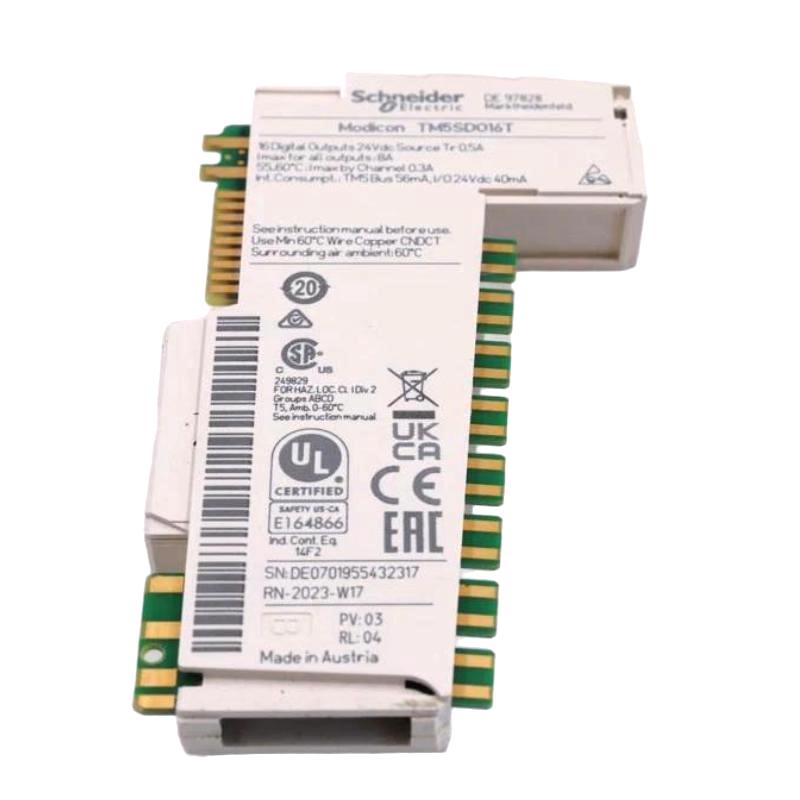

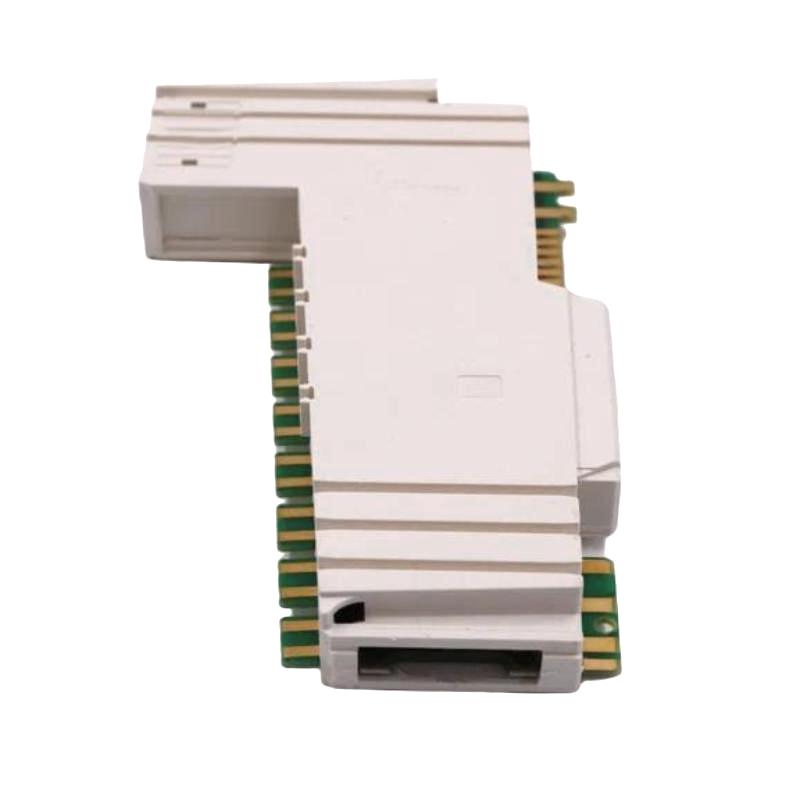

Schneider TM5SDO16T Discrete Output Module

Overview

The Schneider TM5SDO16T is a compact discrete output module designed for the Modicon TM5 modular I/O system. It provides digital output signals for controlling compatible field devices such as relays, contactors, indicator lamps, solenoid valves, and other DC loads.

Its slim 12.5 mm housing makes it well suited to compact automation panels where efficient use of cabinet space is important.

General Information

Part Number: TM5SDO16T

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon TM5

Type: Discrete Output Module

Output Type: Digital / Transistor

Application: Industrial automation and machine control

Mounting: TM5 modular I/O system

Power Specifications

Rated Supply Voltage: 24 V DC

Output Channels: 16

Output Signal: Digital ON/OFF

Output Technology: Transistor output

Load Control: Designed for compatible DC field loads

Power Supply: Via the TM5 system

Protection: Designed for industrial control applications

Communication & Interface

Output Interface: 16 discrete output channels

System Interface: TM5 bus

Field Connection: TM5 terminal connection

Controller Communication: Output commands are transferred through the TM5 system bus

Status Indication: Module and channel status LEDs

Environmental

Operating Environment: Industrial automation applications

Installation Location: Electrical cabinet or protected control enclosure

Protection Rating: IP20

Humidity: Suitable for standard industrial operating conditions

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): 99 × 12.5 × 75 mm

Weight: 0.025 kg
