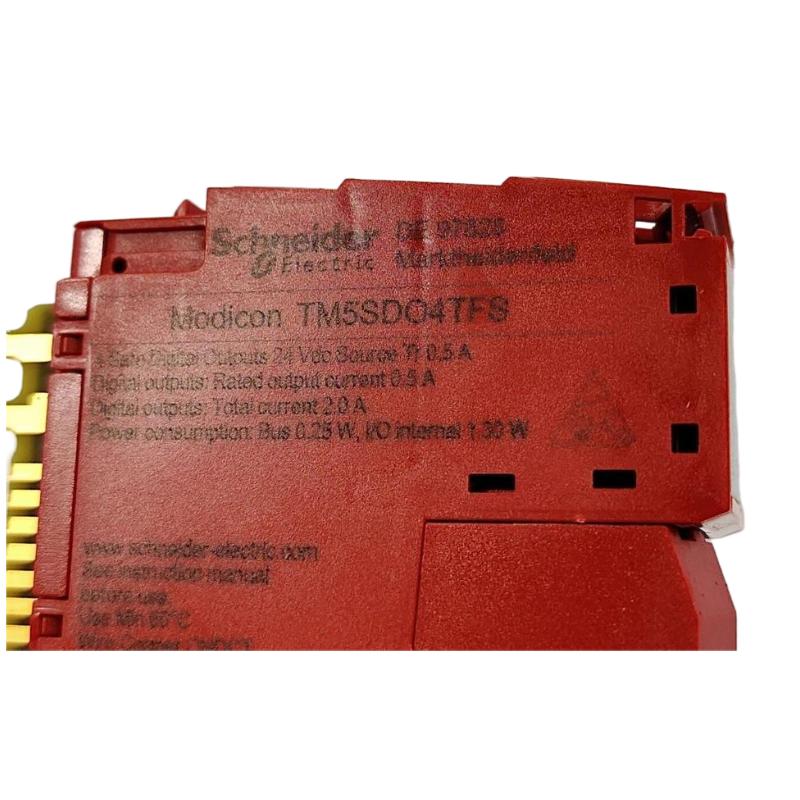

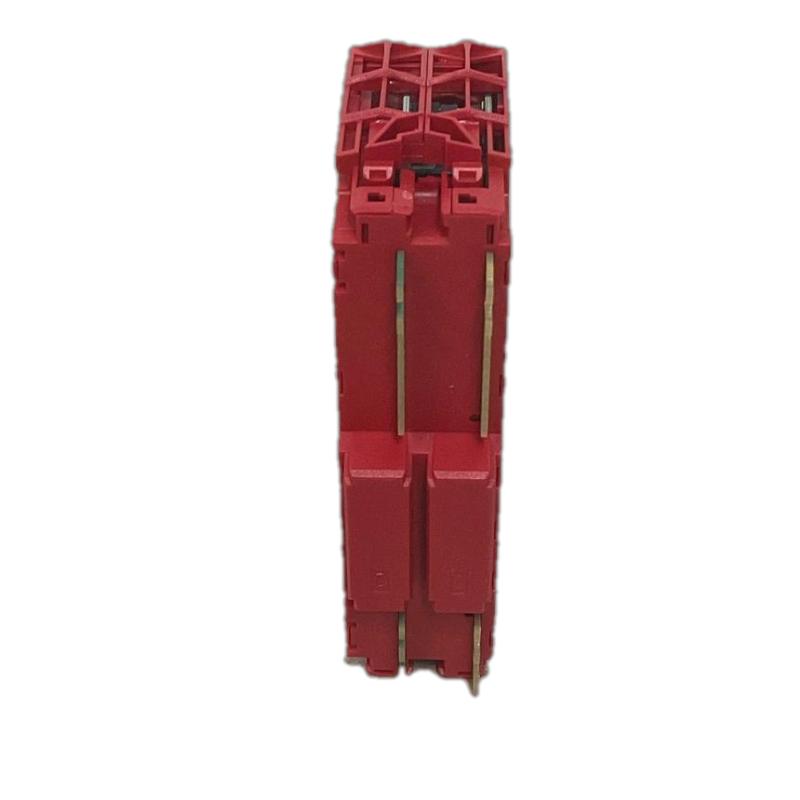

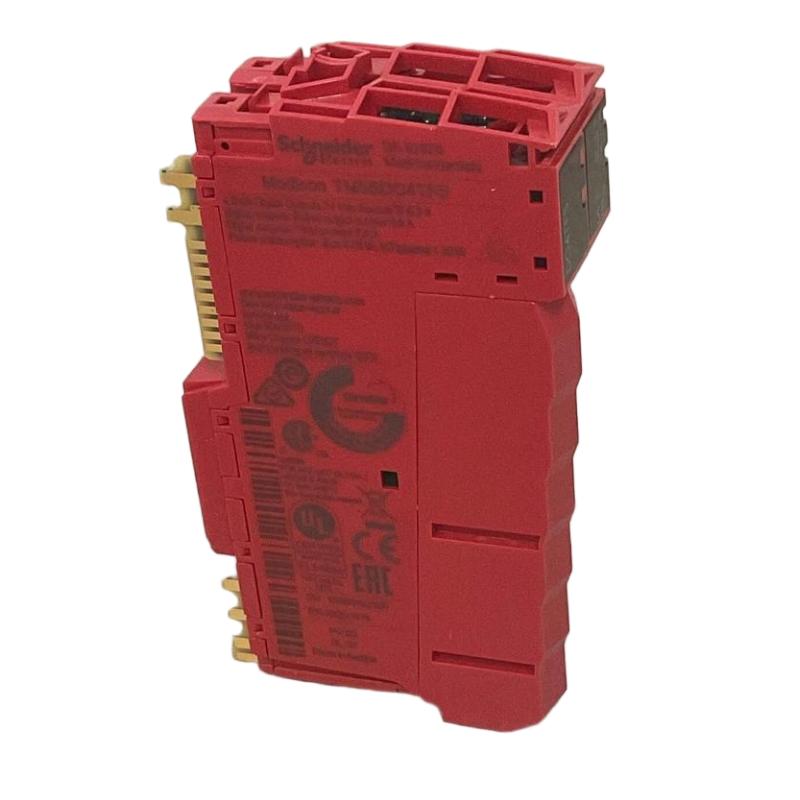

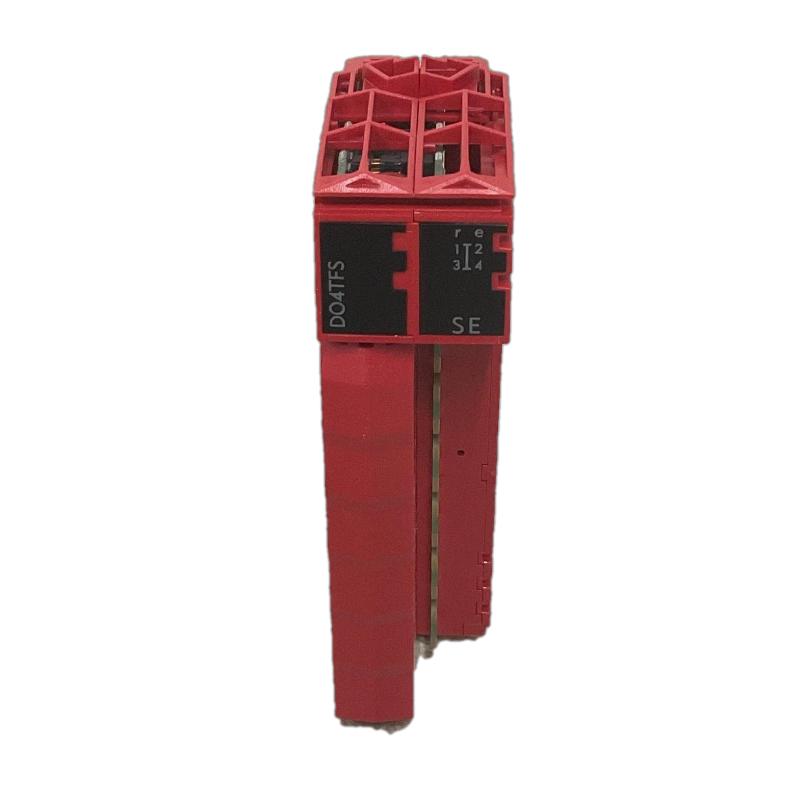

Schneider TM5SDO4TFS Safety DC Discrete Output Module

Overview

The Schneider TM5SDO4TFS is a safety-oriented DC discrete output module for the Modicon TM5 I/O system. It is designed for safety-related machine control applications where reliable digital output switching and system diagnostics are required.

The 25 mm module width provides a compact solution for integrating safety output functions into modular automation cabinets.

General Information

Part Number: TM5SDO4TFS

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon TM5

Type: Safety DC Discrete Output Module

Output Type: Safety Digital / DC

Application: Safety-related machine control and industrial automation

Mounting: TM5 modular I/O system

Power Specifications

Output Channels: 4

Output Type: DC discrete output

Signal Type: Digital ON/OFF

Load Control: Designed for compatible DC field loads

Power Supply: Via the TM5 system architecture

Safety Function: Supports safety-related output control applications

Protection: Designed for industrial safety control environments

Communication & Interface

Output Interface: 4 safety discrete output channels

System Interface: TM5 bus

Field Connection: TM5 terminal connection

Controller Communication: Safety I/O data exchanged through the TM5 system

Diagnostics: Module and channel status monitoring

Status Indication: LED indicators for module and channel status

Environmental

Operating Environment: Industrial automation and machine safety applications

Installation Location: Electrical cabinet or protected control enclosure

Protection Rating: IP20

Humidity: Suitable for standard industrial operating conditions

Cooling: Natural convection

Dimensions & Weight

Dimensions (L × W × H): 99 × 25 × 75 mm

Weight: 0.025 kg
