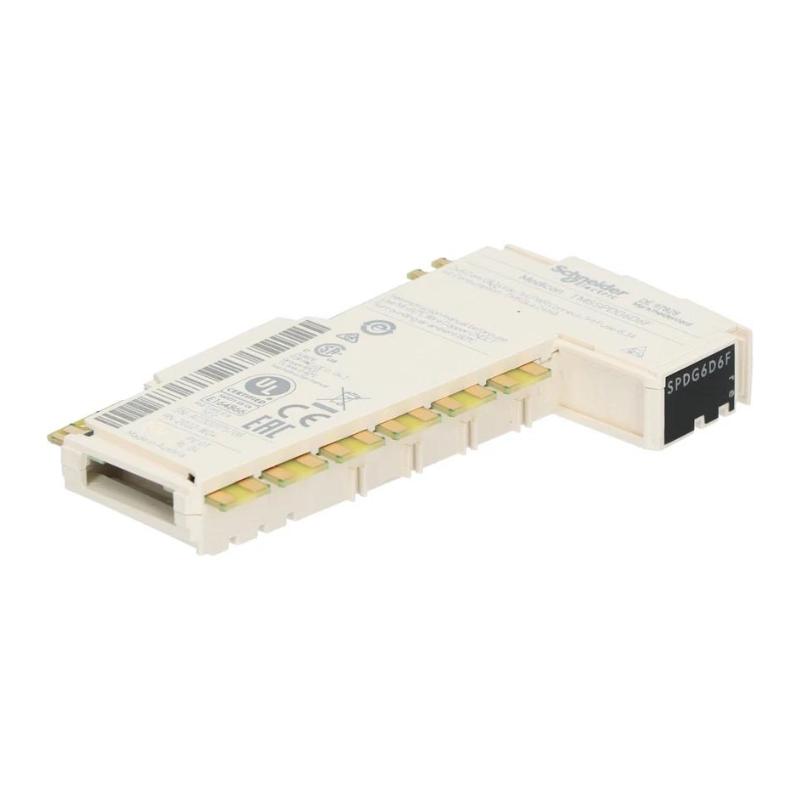

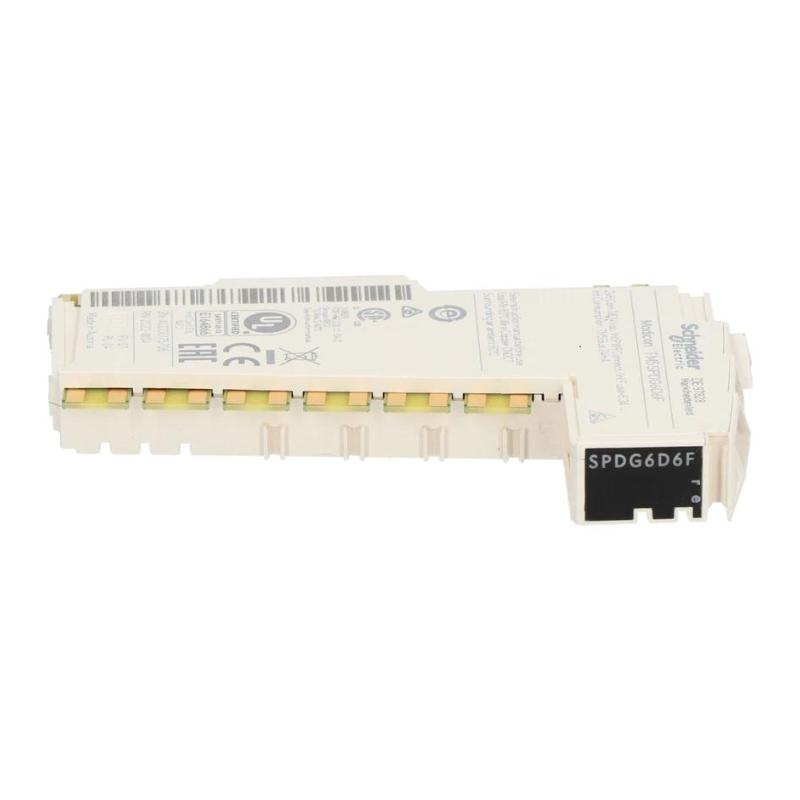

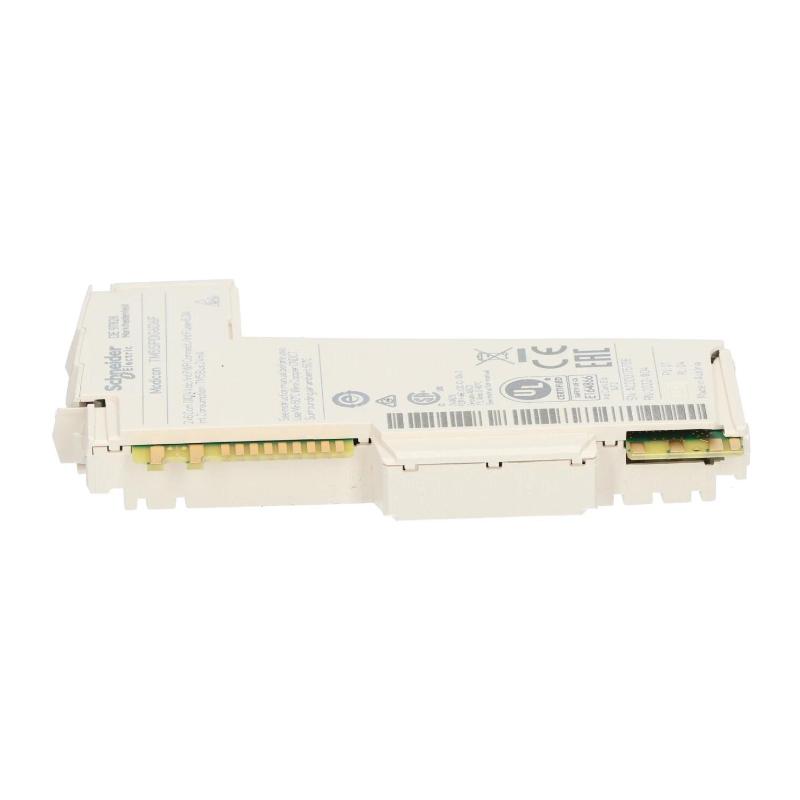

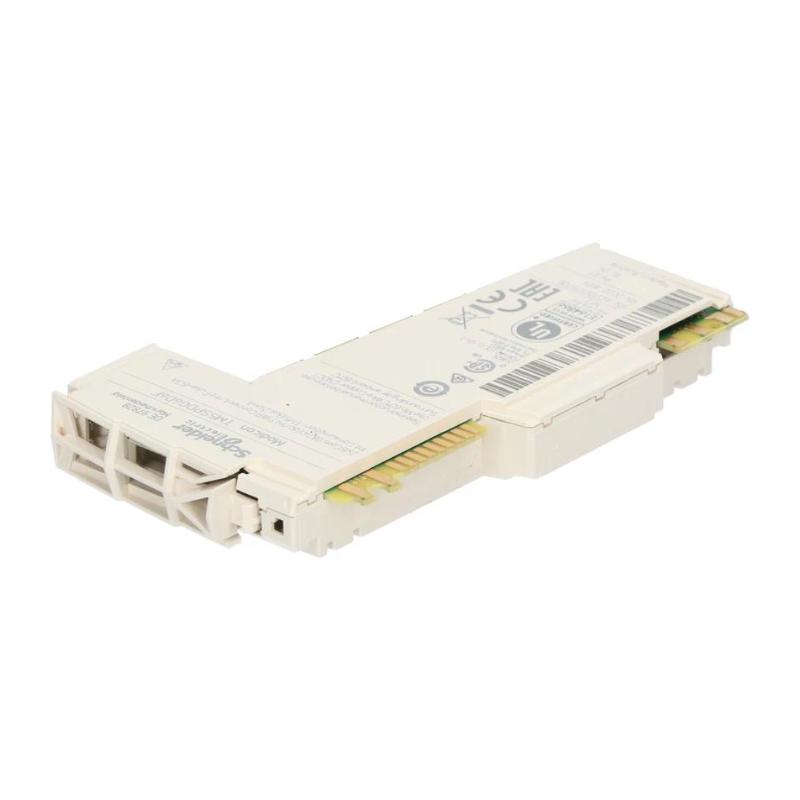

Schneider TM5SPDG6D6F Common Distribution Module

Overview

The Schneider TM5SPDG6D6F is a compact common distribution module designed to distribute power and signals within Modicon TM5 modular I/O systems. It helps organize field wiring and provides a practical interface for connecting compatible devices in industrial automation applications.

General Information

Part Number: TM5SPDG6D6F

Manufacturer: Schneider Electric

Series: Modicon TM5

Type: Common Distribution Module

Module Function: Power and signal distribution

Application: Industrial automation, machine control, field device connection, and modular I/O distribution

Mounting: TM5 modular system installation

Brand: Schneider Electric

Country of Origin: France

Power Specifications

Supply Voltage: 24 V DC

Power Source: TM5 system power bus

Power Distribution: Distributes power to connected field devices and I/O circuits

Power Consumption: Low-power modular design

Protection: Electronic protection for industrial control applications

Status Indicators: LED indicators for module and system status

Communication & Interface

Interface Type: TM5 backplane connection

Distribution Function: Common power and signal distribution

Field Connections: Provides convenient connections for compatible field wiring

Diagnostics: Module and system status monitoring

System Integration: Designed for integration with Modicon TM5 controllers and I/O modules

Environmental

Operating Temperature: Suitable for standard industrial automation environments

Storage Temperature: Suitable for protected industrial storage conditions

Humidity: Suitable for industrial control cabinet environments, non-condensing

Installation Environment: Indoor industrial control panel

Protection Rating: IP20 when installed within the TM5 system

Application Conditions: Designed for typical industrial electrical and mechanical operating conditions

Dimensions & Weight

Dimensions (L × W × H): 99 × 12.5 × 75 mm

Weight: 0.025 kg
