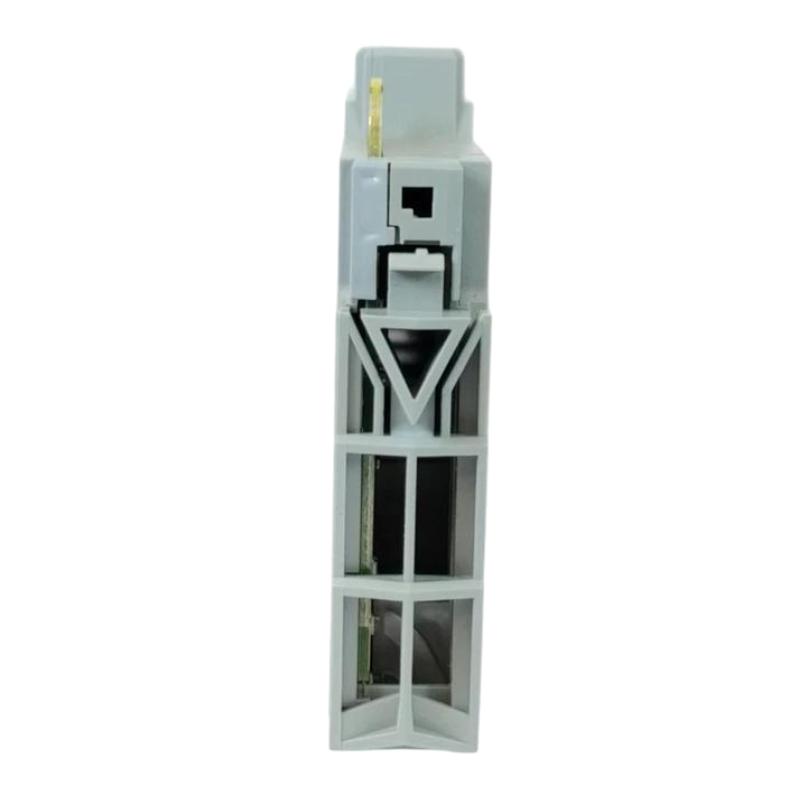

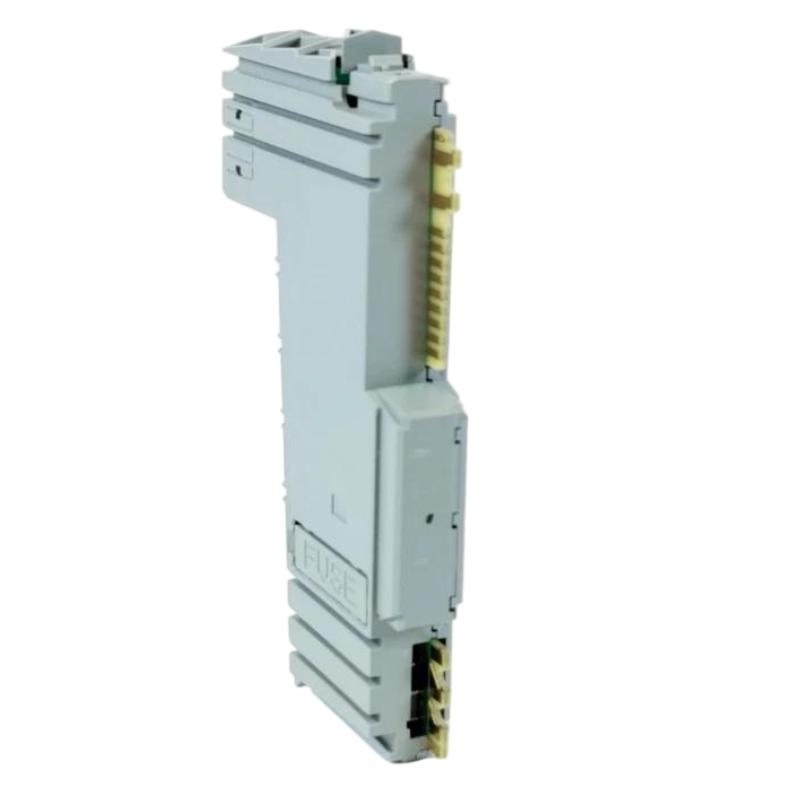

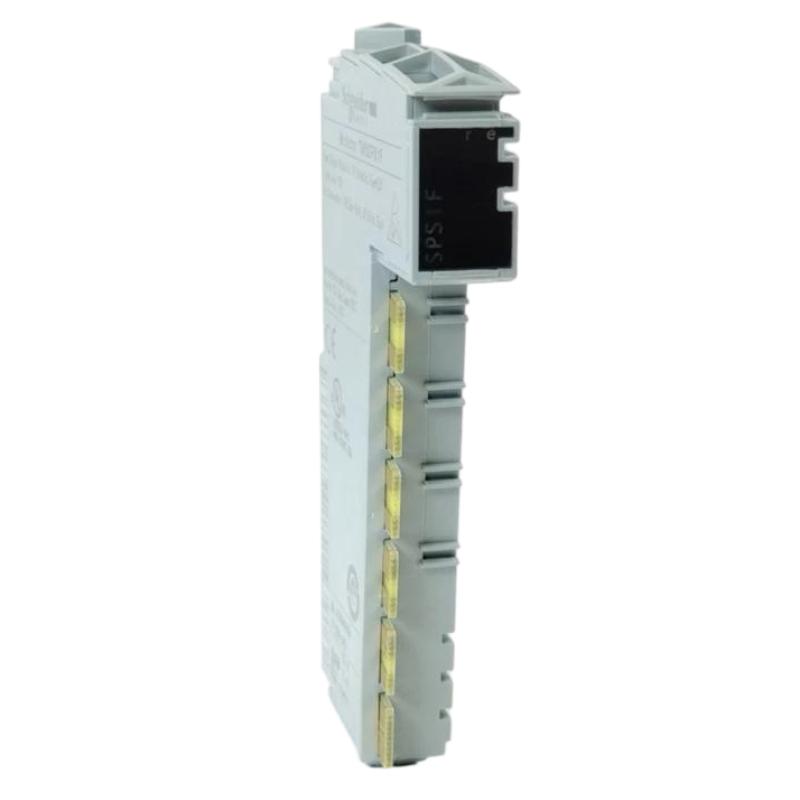

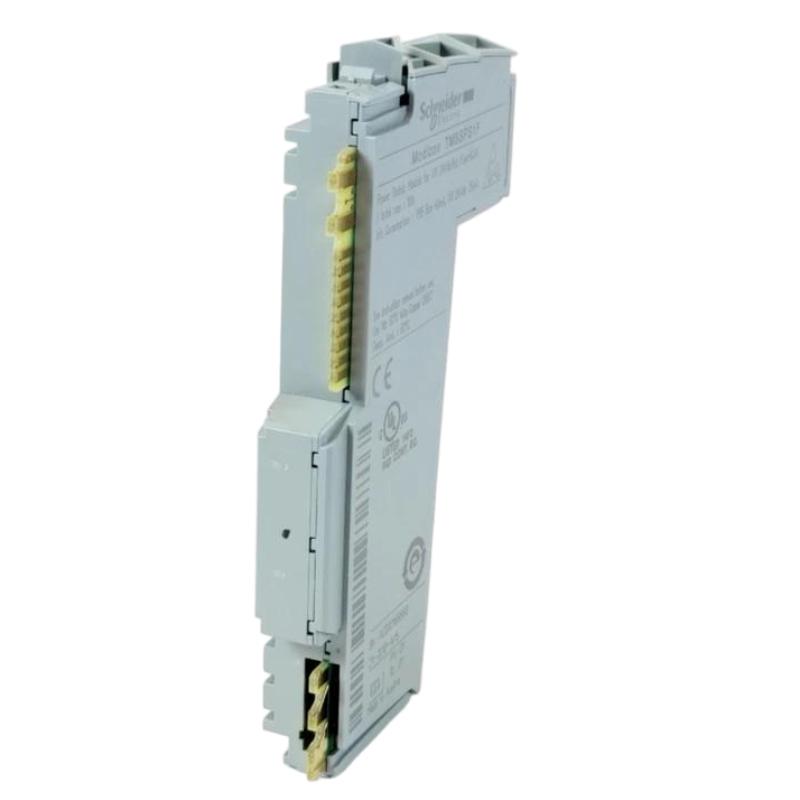

Schneider TM5SPS1 Power Distribution Module

Overview

The Schneider TM5SPS1 is a compact power distribution module designed to distribute electrical power within Modicon TM5 modular I/O systems. It provides a practical solution for managing power distribution between connected modules and supporting stable operation in industrial automation applications.

General Information

Part Number: TM5SPS1

Manufacturer: Schneider Electric

Series: Modicon TM5

Type: Power Distribution Module

Module Function: Power distribution

Application: Industrial automation, machine control, modular I/O systems, and control panel applications

Mounting: TM5 modular system installation

Brand: Schneider Electric

Country of Origin: France

Power Specifications

Supply Voltage: 24 V DC

Power Source: TM5 system power bus

Power Distribution: Distributes power to connected TM5 modules and circuits

Power Consumption: Low-power modular design

Protection: Electronic protection for industrial control applications

Status Indicators: LED indicators for module and system status

Communication & Interface

Interface Type: TM5 backplane connection

Distribution Function: Power routing within the modular I/O system

System Connection: Designed for direct integration with compatible TM5 modules

Diagnostics: Module and system status monitoring

System Integration: Suitable for Modicon TM5 controller and I/O architectures

Environmental

Operating Temperature: Suitable for standard industrial automation environments

Storage Temperature: Suitable for protected industrial storage conditions

Humidity: Suitable for industrial control cabinet environments, non-condensing

Installation Environment: Indoor industrial control panel

Protection Rating: IP20 when installed within the TM5 system

Application Conditions: Designed for typical industrial electrical and mechanical operating conditions

Dimensions & Weight

Dimensions (L × W × H): 99 × 12.5 × 75 mm

Weight: 0.025 kg
