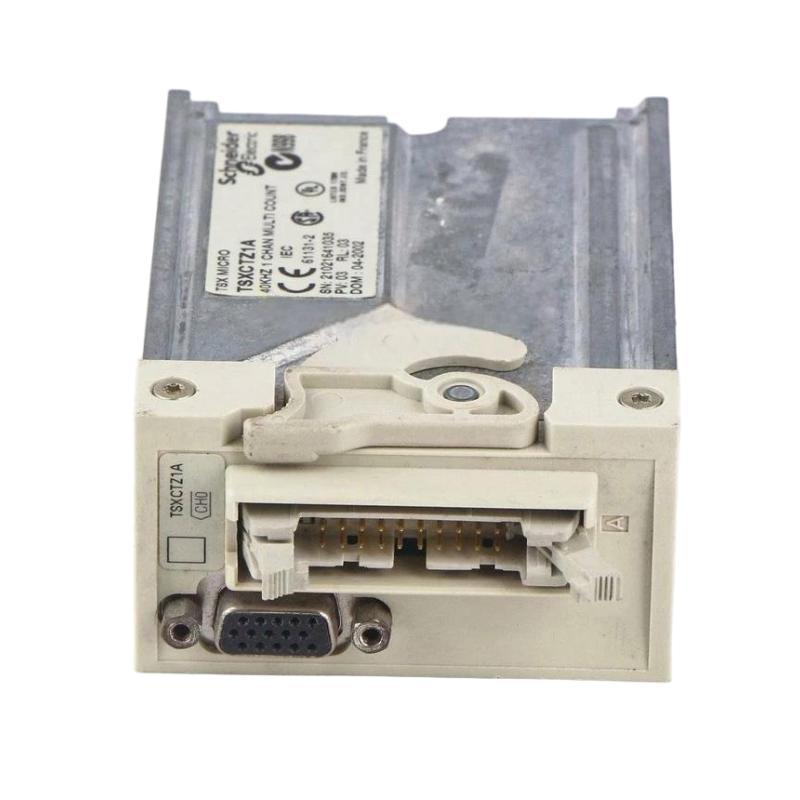

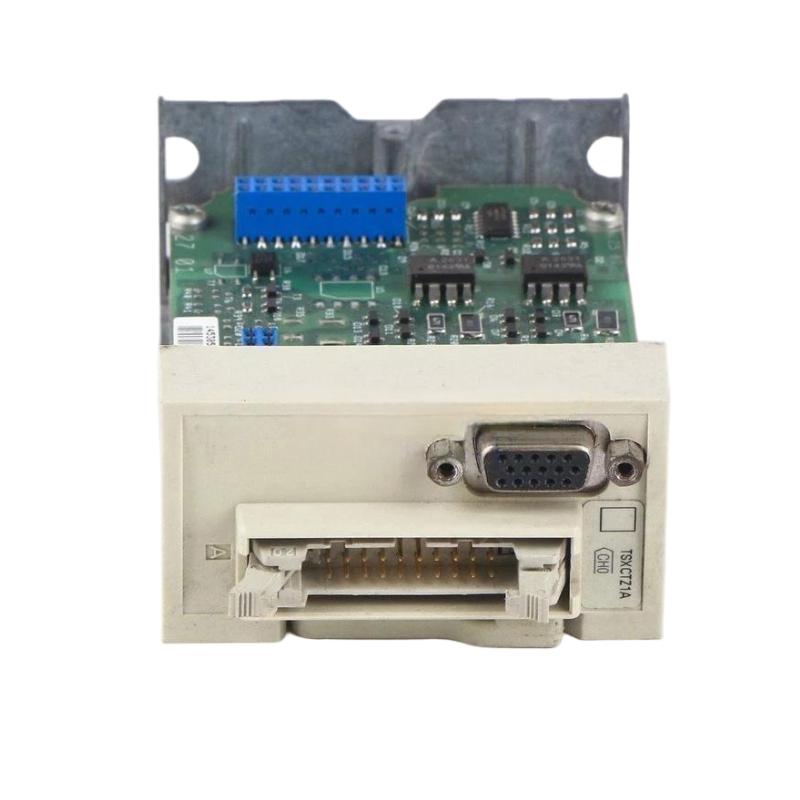

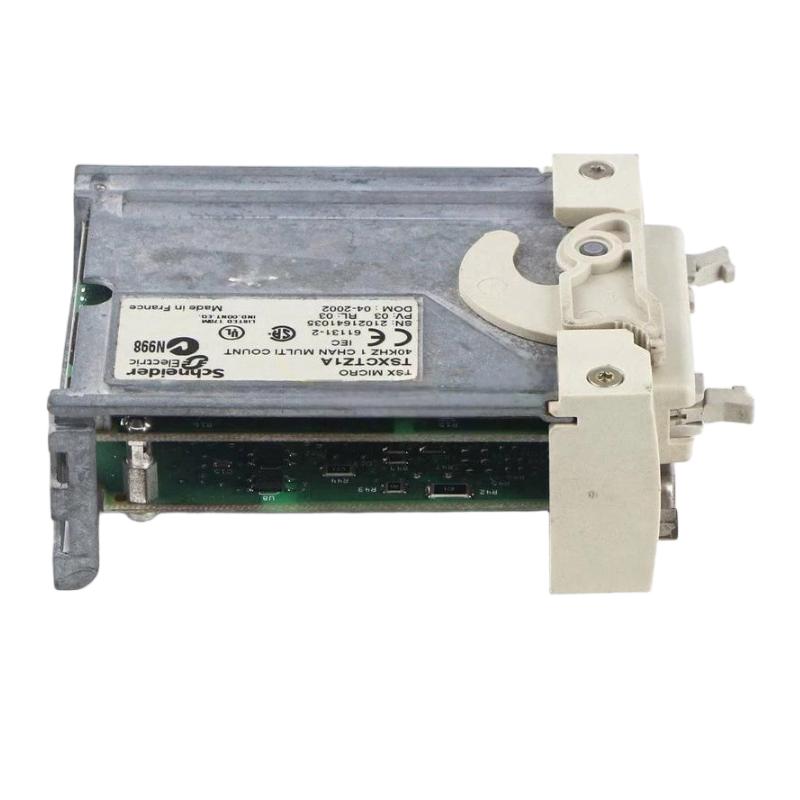

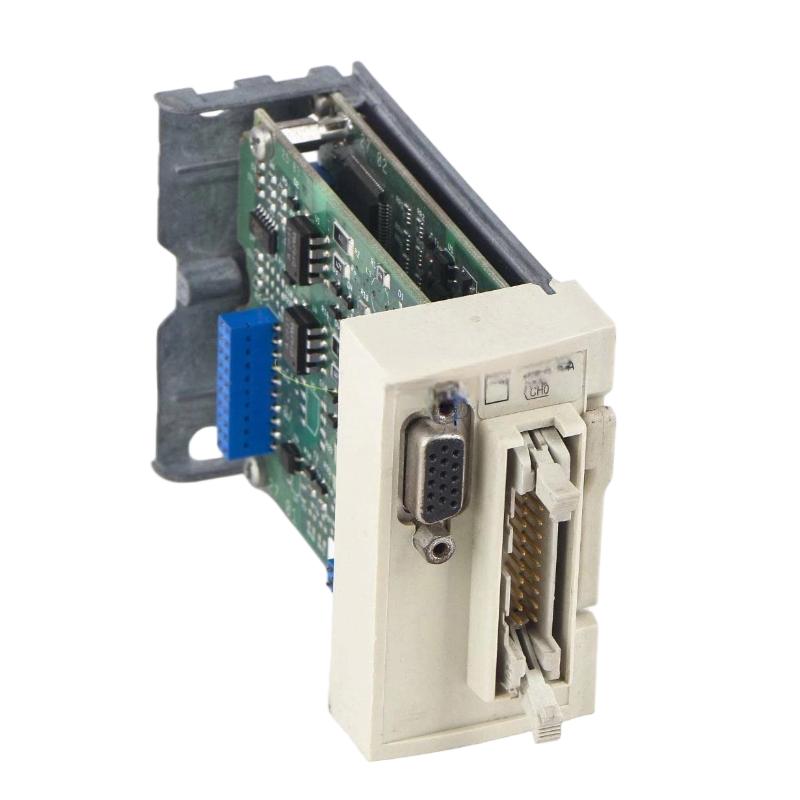

Schneider TSXCTZ1A Counter Module

Overview

The Schneider TSXCTZ1A is a counter module designed for industrial automation and control applications. It is used for high-speed counting and pulse monitoring, supporting accurate measurement of machine operations, production cycles, and related process signals.

General Information

Part Number: TSXCTZ1A

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Module Type: Counter Module

Application: Industrial automation and high-speed counting

Installation: Control system rack or chassis

System Role: Pulse counting and signal monitoring

Function: Provides counting functions for compatible control systems

Power Specifications

Power Supply: Supplied through the connected control system

Input Type: Digital pulse and counting signals

Counting Function: High-speed pulse counting

Signal Processing: Pulse detection and counting

Protection: Designed for reliable industrial operation

Status Indication: Supports module and operating status monitoring

Communication & Interface

Input Interface: High-speed counting signal connections

Controller Interface: Compatible Schneider Electric control system

Signal Interface: Digital pulse and counter inputs

Data Transfer: Exchanges counting data with the host controller

Diagnostics: Supports module and channel status monitoring

Environmental

Operating Temperature: Suitable for industrial control environments

Storage Temperature: Suitable for standard industrial storage conditions

Humidity: Suitable for typical industrial environments, non-condensing

Installation Environment: Indoor industrial control cabinets and protected enclosures

Protection Rating: Designed for installation within a protected control system

Dimensions & Weight

Dimensions (L × W × H): Approximately 103 × 95 × 20 mm

Weight: 0.2 kg
