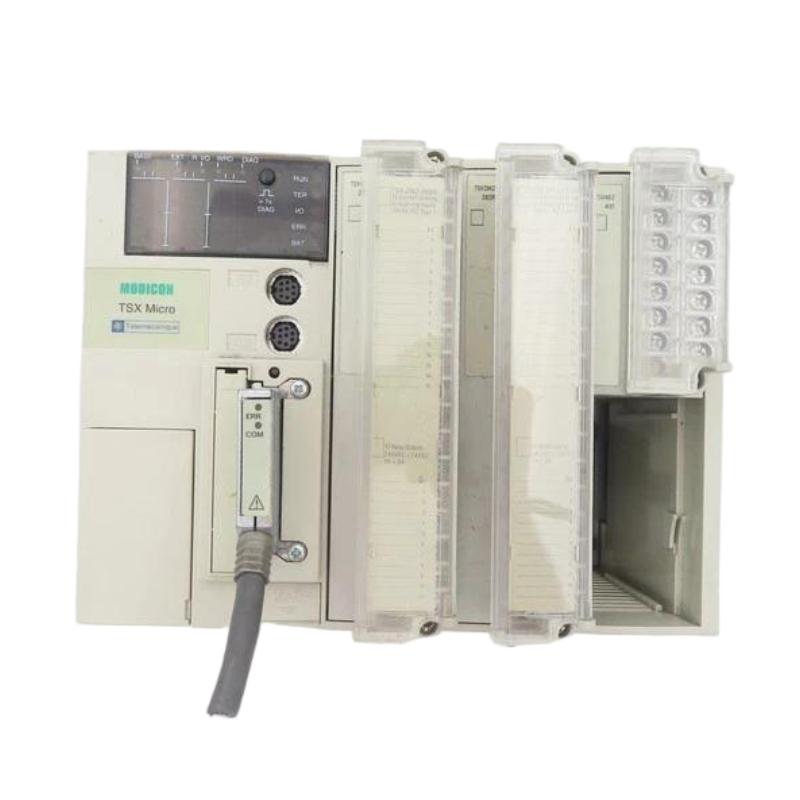

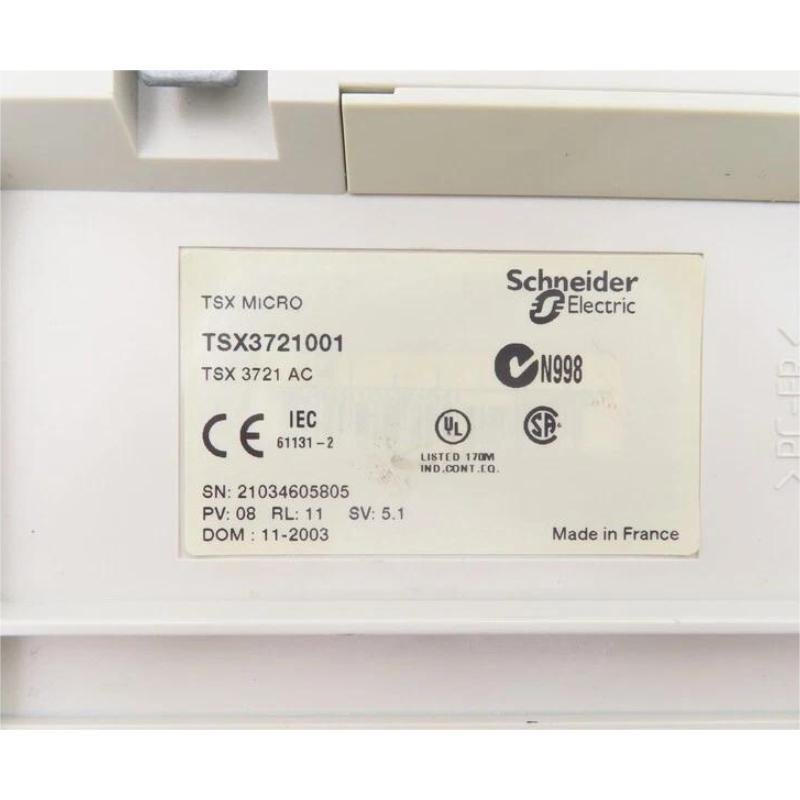

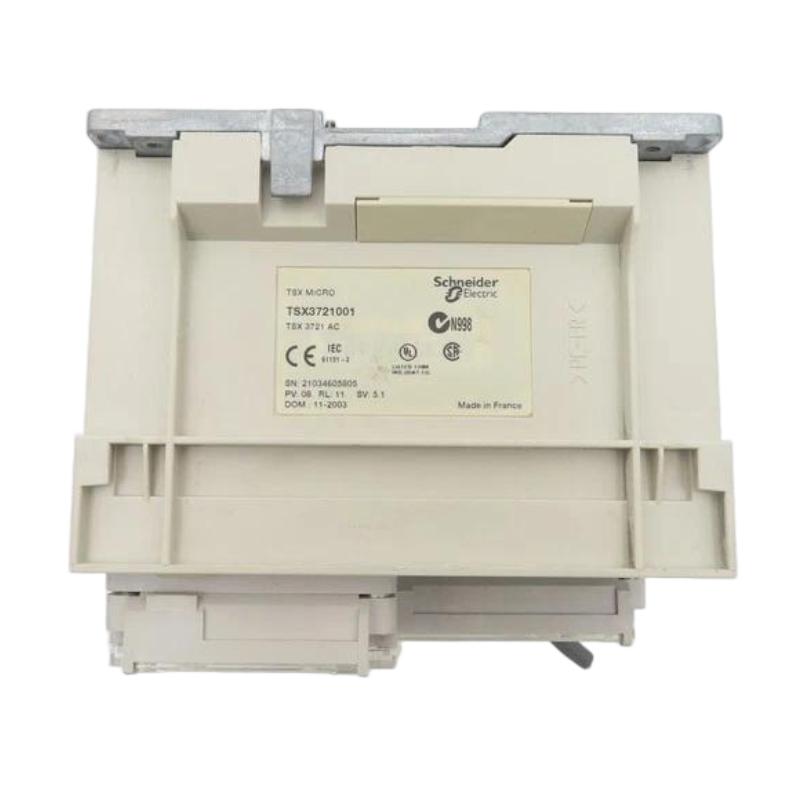

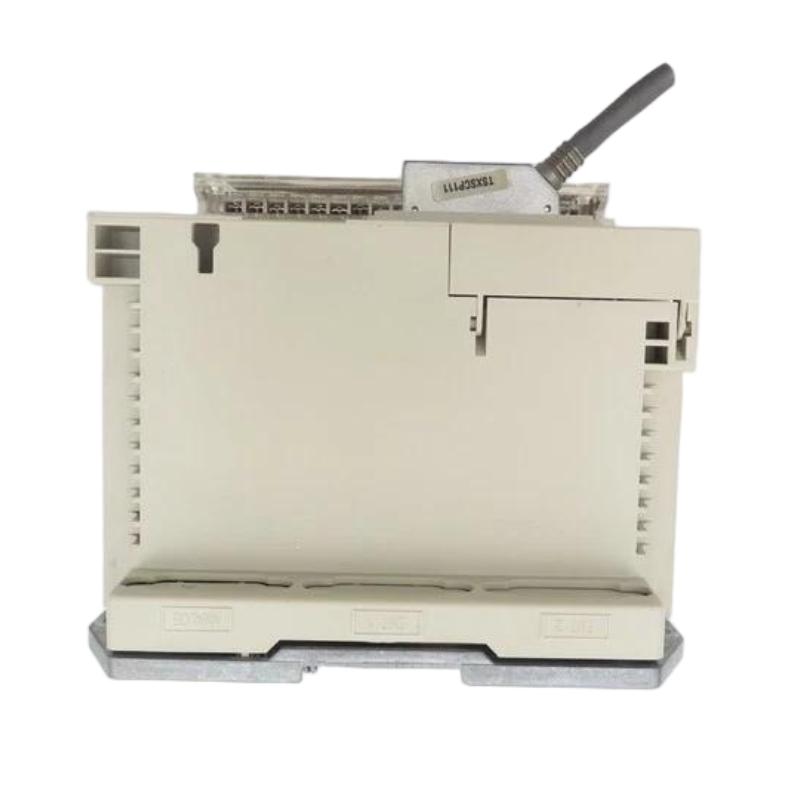

Schneider TSX3721001 Modular Base Controller

Overview

The Schneider TSX3721001 is a Modicon TSX Micro modular base controller designed for compact industrial automation and machine control applications. It provides PLC processing, memory management, serial communication, and expansion capabilities for flexible control system configurations.

General Information

Part Number: TSX3721001

Manufacturer: Schneider Electric

Product Series: Modicon TSX Micro

Product Type: Modular Base Controller

Controller Type: Programmable Logic Controller

Architecture: Modular PLC

Expansion Slots: 3

Real-Time Clock: Integrated

Brand: Schneider Electric

Country of Origin: France

Power Specifications

Power Supply: 100–240 V AC

Operating Voltage: 90–264 V AC

Power Supply Type: AC

Power Protection: Overload and short-circuit protection

Power Backup: Supported by internal memory protection functions

Communication & Interface

Serial Interface: TER/AUX communication port

Communication Protocols: Uni-Telway and Modbus RTU

Interface Type: RS-485 serial communication

Expansion: Supports compatible TSX Micro I/O and communication modules

Programming Interface: PC-based programming and configuration

Communication Functions: Programming, diagnostics, controller networking, and data exchange

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −25 to +70 °C

Operating Humidity: Up to 95% RH, non-condensing

Operating Altitude: Up to 2000 m

Installation Environment: Industrial control cabinet

Protection: Designed for standard industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 341.4 × 151 × 152 mm

Weight: 1.72 kg
